Product Details:
Payment & Shipping Terms:
|
| Product: | Outdoor Fiber Optic Joint Enclosure 144 Core | Cable Ports: | 10 Round Ports+1 Oval Port |
|---|---|---|---|
| Cable Diameter: | Φ7~Φ12 | Max Capacity: | 144 |
| Splitter Type: | 1/16(2pcs), 1:32(1pc) | Splice Tray Capacity: | 24F |
| Max Quantity Of Splice Tray: | 6 | Sealing Type: | Heat Shrinkable Tube, Silicon Rubber |
| Installation: | Overhead, Pole, Wall And Buried Installations | ||
| High Light: | 144core Fiber Optic Joint Enclosure,1/16 Splitter Fiber Optic Joint Enclosure,24F Heat Shrinkable Optical Closure |
||

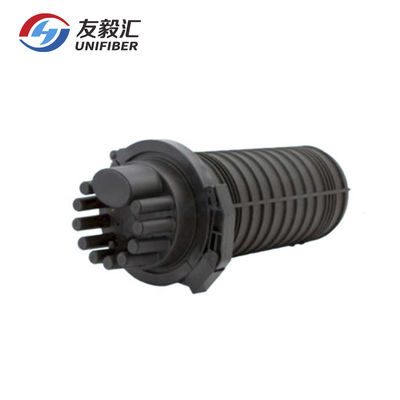

Outdoor fiber optic joint enclosure 144 core dome type heat shrinkable pole/wall mount

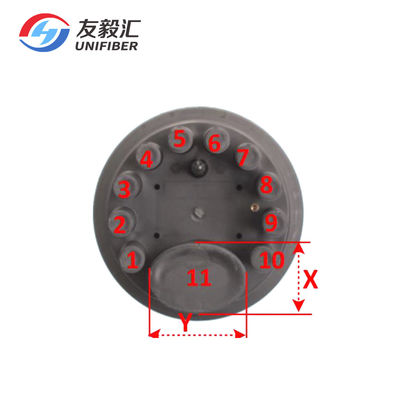

A type of dome closure series, used for direct connection during optical fiber transmission process, and provides joint connection protection, with 10 small round cable holes and 1 large cable hole; heat sealing with heat shrinkable casing; can be used for overhead, pole, wall and buried installations. With good sealing performance, the simple installation and wide application range are the best choice for optical fiber connection.
Feature:
1. All functional indicators are in line with the national YD814.1-2004 standard for distribution box.
2. The body adopt modified plastic MPP, with high strength and corrosion resistance, which has long lifetime and excellent sealing performance;
3. The closure can be reopened, and work well in the environment of -40℃～＋65℃ and guarantee the good sealing performance.

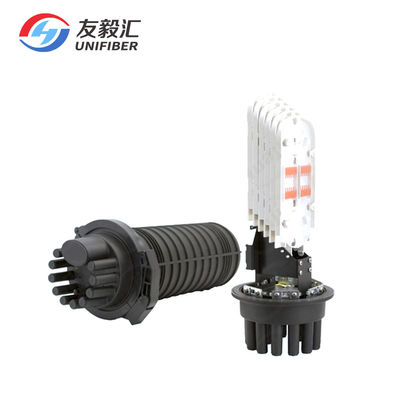

4. Stacked structure splice tray and independent insulation grounding device make the optical fiber core configuration, expansion and the cable grounding flexible, convenient and safe;
5. The splice tray is equipped with splicing slots and a PLC splitter holder, which can be configured at any time according to the needs of direct or divergent connection.
Specification:
| Type | GJS-M11/RS-A distribution type | GJS-M11/RS-A splitting type |
| Size | ￠230*440 | ￠230*440 |
| Cable ports (inlet/outlet) | 6 in/ 6 out | 6 in/ 6out |
| Cable diameter (mm) | ￠7~￠12 | ￠7~￠12 |
| Splice tray capacity | 24 (single fiber) | 24 (single fiber) |
| Max splice tray number | 6 | 5 |
| Max splitting | — | 1:16(2pcs), 1:32(1pc) |
| Max core capacity | 144 (single fiber) | 120 (single fiber) |
| Sealing type | Heat shrinkable tube, silicon rubber | Heat shrinkable tube, silicon rubber |
