| Product: | 1x1 Mechanical Single Mode/ Multimode Fiber Optic Switch | Wavelength: | 850/1310/1490/1550/1625/1650 |
|---|---|---|---|
| Power Supply（V）: | 3V/5V | Control Model: | Non-Latching Or Latching |
| Fiber Diameter: | 250um | Fiber Length: | 1m Or Specify |
| Connector: | FC/UPC | Optical Route: | P1-P2 P1-P3 |
| High Light: | 5V 250um Fiber Optical Switch,FC/UPC Multimode Fiber Optical Switch,1x1 Mechanical Fiber Optical Switch |
||

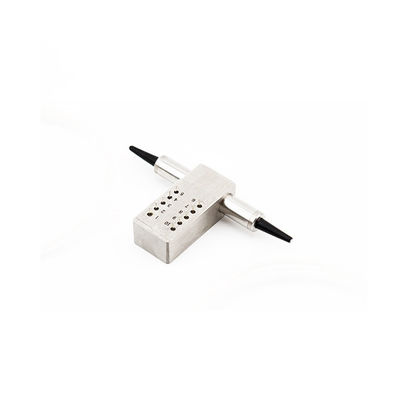

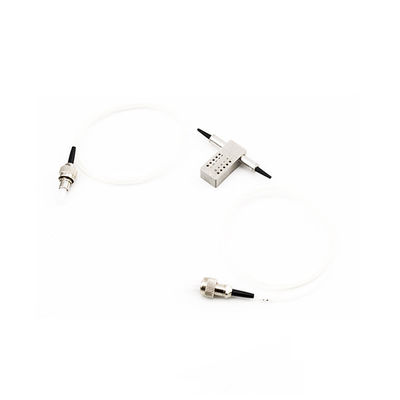

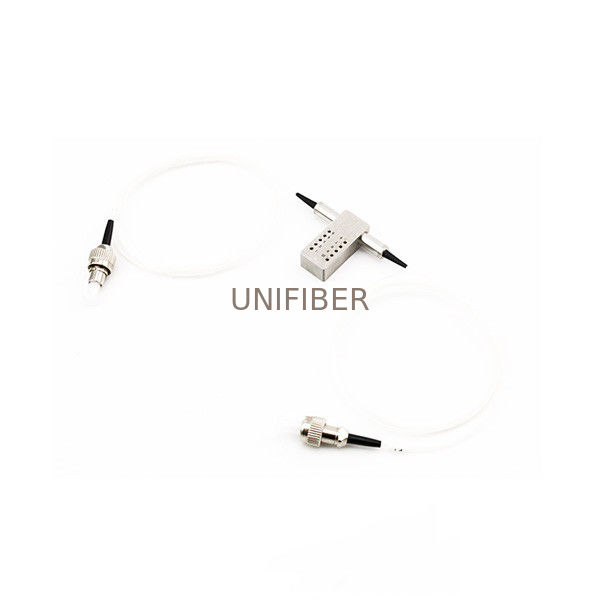

1x1 Mechanical Single Mode/ Multimode Fiber Optic Switch Non-Latching 5V 250um FC/UPC
1x1 Mechanical Optical Switch is used to turn on and turn off optical signal. The 1x1 Mechanical Optical Switch is based on Advanced Optoelectronic Integrated Technology. With the development of optical communication, Optical Switch device is the key to a new generation of all-optical network in near future.
| Features | Applications |
| Unmatched Low Cost | Optical Network |
| Low Insertion loss | Protection/Restoration |
| High Channel Isolation | Optical Singnal Routing |
| High Stability, High Reliability | Configurable Optical Add/Drop |
| Epoxy-free on Optical Path | Transmitter and receiver protection |
| Latching and Non-latching | Network Test System |
| Parameter | 1×1-MM/SM | |
| Wavelength Range(nm) | 850±40 | 1260~1650 |
| Operating Wavelength | 850 | 1310/1490/1550/1625/1650 |
| Insertion Loss(dB) | Typ:0.5 Max:0.8 | Typ:0.4 Max:0.6 |
| Return Loss(dB) | MM≥30 SM≥50 | |
| Crosstalk(dB) | MM≥65 SM≥70 | |
| Polarization Dependent Loss(dB) | ≤0.05 | |
| WaveLength Dependent Loss(dB) | ≤0.25 | |
| Temperature Dependent Loss(dB) | ≤0.25 | |
| Repeatability(dB) | ≤±0.02 | |
| Power Supply(V) | 3.0 or 5.0 | |
| Lifetime(time) | ≥10^7 | |
| Switch Time(ms) | ≤8 | |
| Transmission Power(mW) | ≤500 | |
| Operating Temperature(℃) | -20~+70 | |
| Storage Temperature(℃) | -40~+85 | |
| Dimension(mm) | (L)27.0×(W)12.6×(H)8.0 | |
1,Specifications may change without notice.
2,Above specification are for device without connector.
| Type | Pin | Electric Drive | Status Sensor | ||||||
| 1×1 | Pin1 | Pin5 | Pin6 | Pin10 | Pin2-3 | Pin3-4 | Pin7-8 | Pin8-9 | |
| Latching | P1-P2 | V+ | GND | -- | -- | Open | Close | Close | Open |
| Light close | -- | -- | GND | V+ | Close | Open | Open | Close | |
| Non-latching | P1-P2 | V+ | -- | -- | GND | Open | Close | Close | Open |
| Light close | -- | -- | -- | -- | Close | Open | Open | Close | |
| Status One | Status Two |
 |
|
| Specifications | Voltage | Current | Resistance |
| 5V latching | 4.5~5.5 | 36~44mA | 125Ω |
| 5V non-latching | 4.5~5.5 | 26~32mA | 175Ω |
| 3V latching | 2.7~3.3 | 54~66mA | 50Ω |
| 3V non-latching | 2.7~3.3 | 39~47mA | 70Ω |
Mechanical Dimensions
