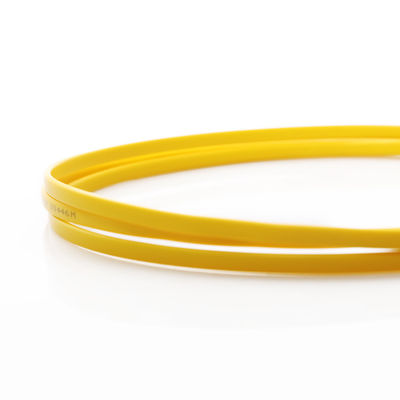

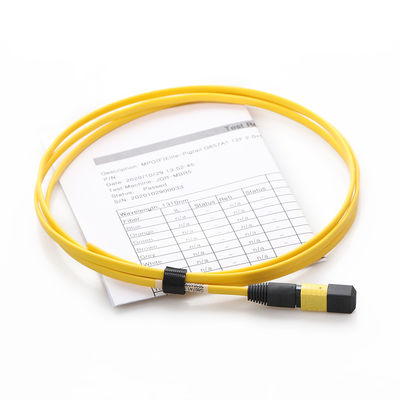

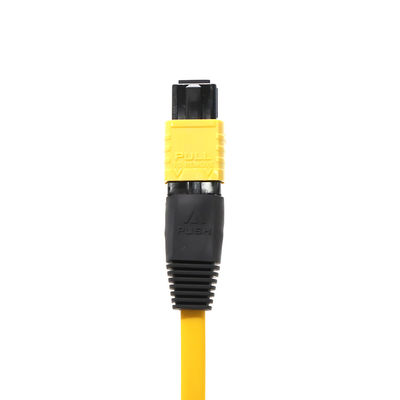

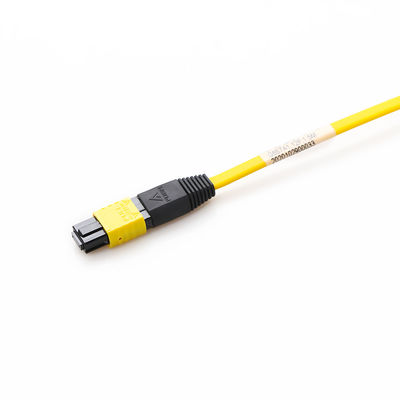

12 Core Flat Ribbon Yellow MPO MTP Patch Cord Single Mode

Large Image : 12 Core Flat Ribbon Yellow MPO MTP Patch Cord Single Mode

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	MPO Female Elite 12 Core Flat Ribbon Trunk Cable Patch Cord

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	PE bag
Delivery Time:	3~5 business days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	MPO Female Elite 12 Core Flat Ribbon Trunk Cable Patch Cord	Fiber Counts:	8/12/24
Fiber Mode:	Single Mode	Polarity:	Type B
Jacket:	LSZH/OFNR/PVC	Color:	Yellow, Aqua , Erika Violet,Purple
Length:	1M ,3M, 5M Or Customized	Application:	Data Center
High Light:	12 Core MPO MTP Patch Cord , Single Mode MPO MTP Patch Cord , Yellow MPO MTP Patch Cord

Single Mode 12 Core MPO(Female) Elite Flat Ribbon Trunk Cable Patch Cord

MPO/MTP pigtail assemblies facilitate rapid deployment of high density backbone cabling in data center and other high fiber environment, reducing network in stallation or reconfiguration time and cost.

FEATURES

Supports 40G and 100G network applications

Jacket material: LSZH, OFNR, OFNP available

100% pre-terminated and tested in factory to ensure transfer performance

Rapid configuration and networking, reduce installation time

Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available

APPLICATION
High density architectures

Data communication network
Optical System Access network
Storage area networking fiber channel

Specification

Performance Level			Standard		Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO/MTP	SM	12F/APC	≤0.70	≥60	≤0.35	≥60
		24F/APC	≤0.75	≥60	≤0.35	≥60
		48F/APC	≤0.75	≥60
	MM	12F/PC	≤0.50	≥20	≤0.35	≥20
		24F/PC	≤0.50	≥20	≤0.35	≥20
		48F/PC	≤0.50	≥20
