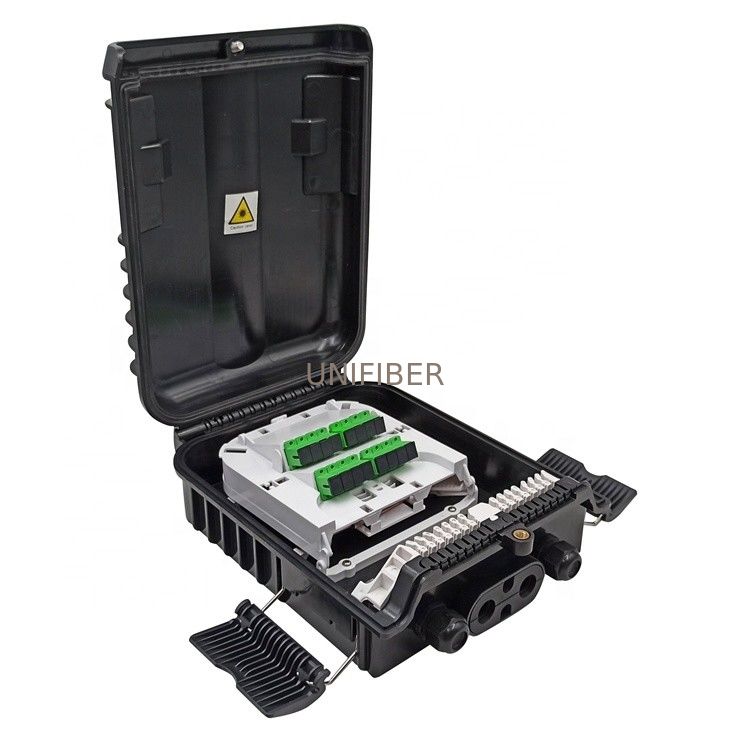

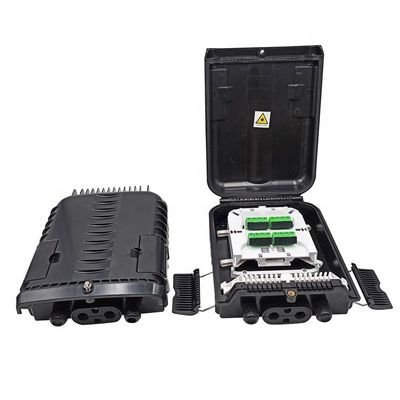

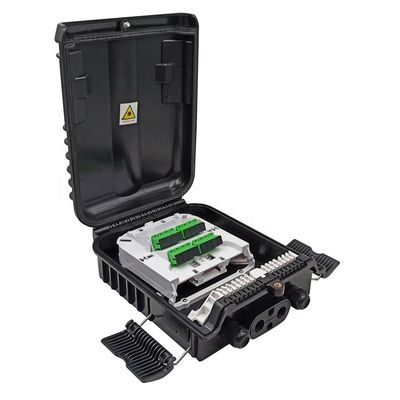

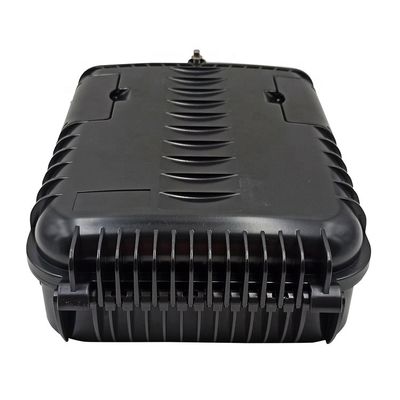

ABS IP65 Waterproof Fiber Optic Termination Box With 16 Port

FTTH Outdoor 16 Port fiber optic box wall mount with 2 cable ports and 16 fiber drops

Fiber Access Termination Box with the pre-terminated cable could be able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box. Pre-terminated Fiber Access Terminal helps save installation time and labor cost by plugging the pre-terminated cable assemblies into the matching fiber adapters without terminating fiber optic cable in the field again.

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTx network building.

Features:

Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.

The distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

Total enclosed structure.
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution... etc all in one.
Cable, pigtails, patch cords are running through their own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.

Application:

Widely used in FTTH access network
Telecommunication networks
Data communications networks
Local area networks

CATV networks
Optical fiber communication
FTTX
Fiber optic network convergence
Optical fiber access network
Aerial, Direct buried, underground, pipeline, hand-holes, duct mounting, wall mounting.

Specification
