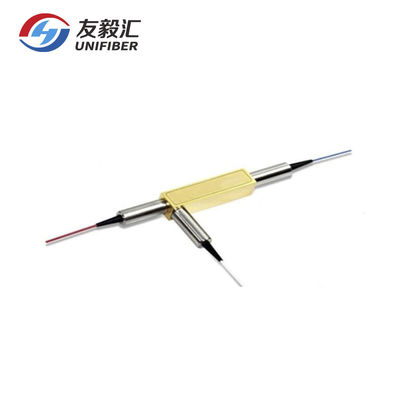

1060nm Three Port Polarization Insensitive Circulator LC Connector

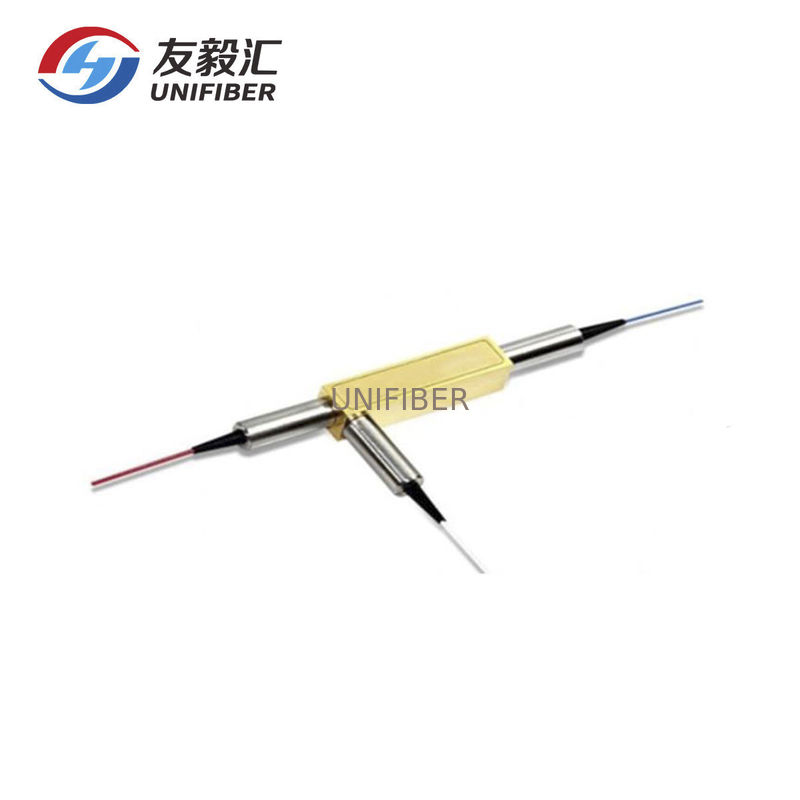

Large Image : 1060nm Three Port Polarization Insensitive Circulator LC Connector

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	1060nm Three Port Polarization Insensitive Optical Circulator

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable

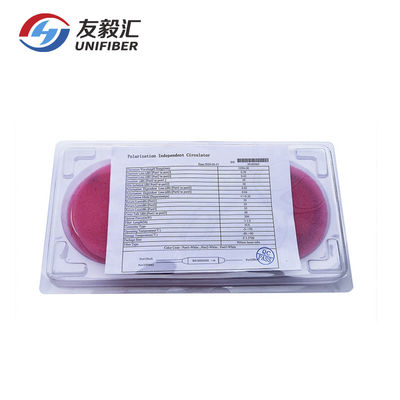

Packaging Details:	Blister Case
Delivery Time:	3~5 business days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	1060nm Three Port Polarization Insensitive Optical Circulator	Ports:	Three Port Or Four Port
Wavelength:	1060nm	Pigtail:	900um
Pigtail Length:	0.5m	Connector:	FC/SC/ST/LC Or Others
High Light:	Three Port Polarization Insensitive Circulator , 1060nm Polarization Insensitive Circulator , LC Connector Fiber Optic Circulator

1060nm polarization insensitive optical circulator utilizes proprietary designs and metal bonding micro optics packaging. It provides low insertion loss, broad band high isolation, low PDL, excellent temperature stability and optical path epoxy free. It can be used for wavelength add/drop, dispersion compensation and EDFA application.

Features:

High Stability and Reliability

Epoxy-free on Optical Path

LossWide Band High Isolation

Low PDL

Low Insertion

Applications:

Optical Amplifier
Wavelength Add/Drop
Dispersion Compensation

Metro Area Network

Specification

			Parameter

			Specification

			Operating Wavelength(nm)

			1055~1065

			Isolation(dB)

			Tipical

			25

			Minimum

			20

			Insertion Loss(dB)

			Tipical

			1.8

			Maximum

			2.2

			Cross Talk(dB)

			45

			Return Loss(dB)

			50

			Polarization Dependent Loss(dB)

			0.2

			Operating Temperature(℃)

			0~+50

			Storage Temperature(℃)

			-40~+85

			Fiber Type

			Corning HI 1060 Fiber

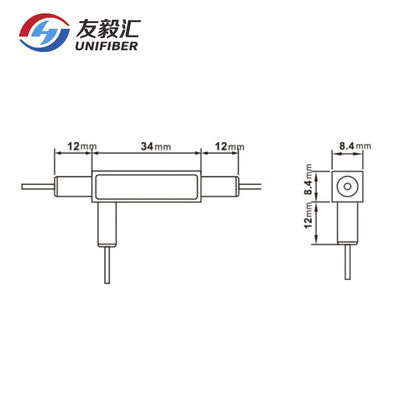

			Package Dimension(LxWxH)(mm)

			L34×W8.4×H8.4

			Power Handling (mW)

			300
