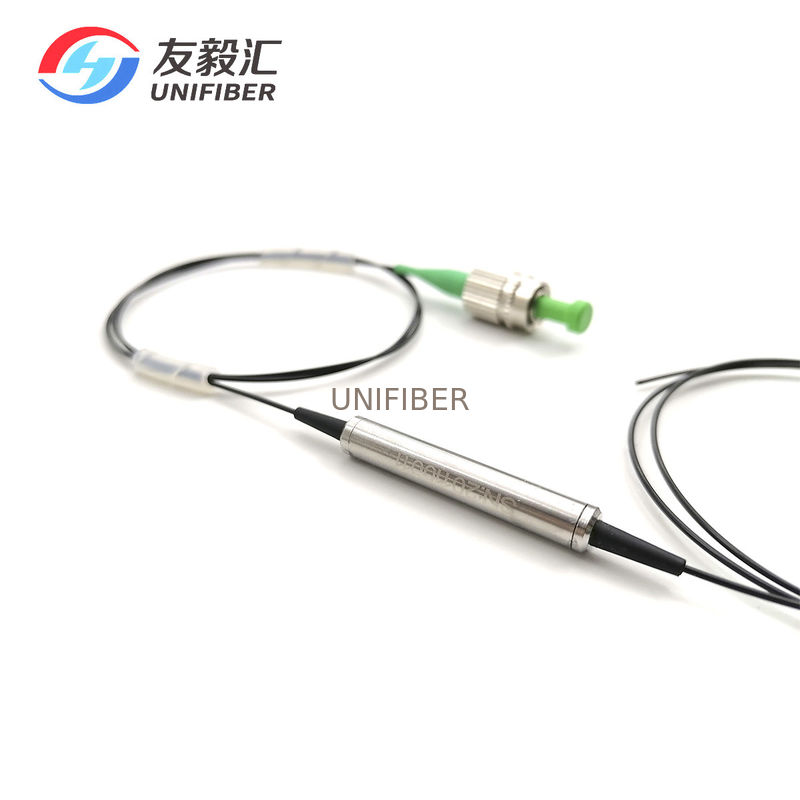

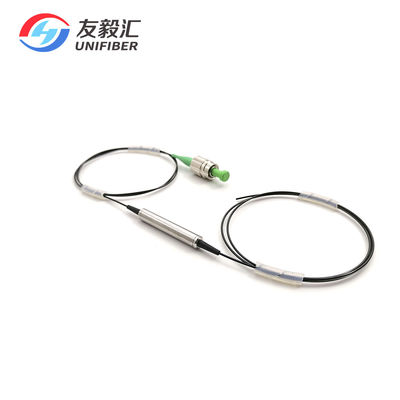

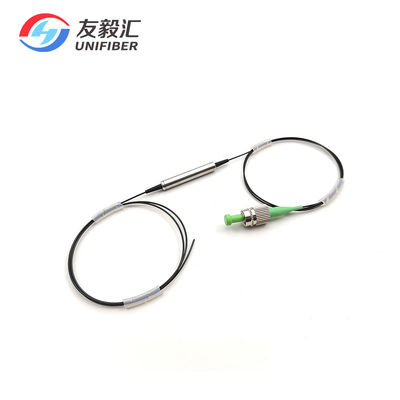

Polarization Maintaining Fiber Optical Isolator 900um FC APC 1550nm

Name: Polarization Maintaining Fiber Optical Isolator 900um FC APC 1550nm
Brand: UNIFIBER-OEM
SKU: 1550nm Polarization Maintaining Fiber Isolator
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (182 reviews)

Large Image : Polarization Maintaining Fiber Optical Isolator 900um FC APC 1550nm

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	1550nm Polarization Maintaining Fiber Isolator

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable

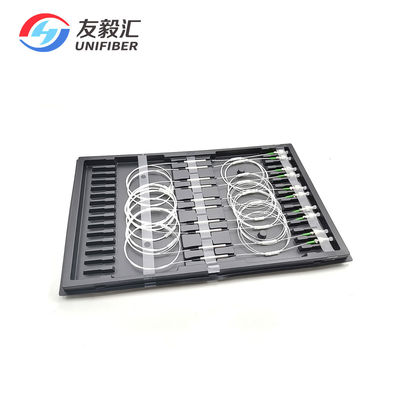

Packaging Details:	Blister Case
Delivery Time:	3~5 business days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	1550nm Polarization Maintaining Fiber Isolator	Wavelength:	1550nm
Fiber:	PM Panda Fiber	Connector:	FC/APC On Input
Stage:	Dual Stage	Package:	Steel Tube
Axis Alignment:	Fast Axis Blocked	Pigtail Type:	900um Loose Tube
High Light:	FC APC Fiber Optical Isolator , Polarization Maintaining Fiber Optical Isolator , 1550nm Ethernet Optical Isolator

1550nm Polarization Maintaining Fiber Isolator Dual Stage Fast Axis Blocked 900um FC/APC is characterized with low insertion loss, high isolation, high return loss, high extinction ratio and excellent environmental stability and reliability. It is ideal for polarization maintaining fiber amplifers, fiber lasers, high speed communication systems and instrumentation applications.

Applications
Fiber Lasers
Optical transmitters&Transceivers
Fiber Amplifiers&Fiber Sensors

Features
Low lnsertion Loss

High lsolation
High stability and reliability

Specification

Parameter		Single Stage	Dual Stage
Center Wavelength(nm)		1310,1480 or 1550
Bandwidth(nm)		±15	±30
Typical Isolation(dB)		40	58
Isolation(dB)		≥30	≥46
Typical Insertion Loss(dB)		0.4	0.6
Insertion Loss(dB)		≤0.6	≤0.8
Min.Extinction Ratio(dB)	only for B type	20
	only for F type	23
Minimun Return Loss(In/Out)(dB)		55/50	55/50
Operation Temperature(℃)		-10~+70
Storage Temperature(℃)		-40~+85
Fiber Type		250um or 400um PM Fiber
Fiber Length		1 meter each end
Dimension(mm)		Φ5.5×L35(50mm including rubber boots)
Power Handing(mW)		300

Polarization Maintaining Fiber Optical Isolator 900um FC APC 1550nm 0
