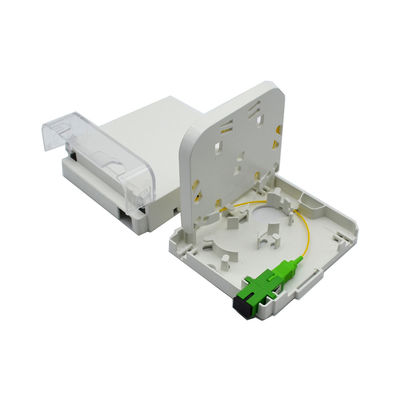

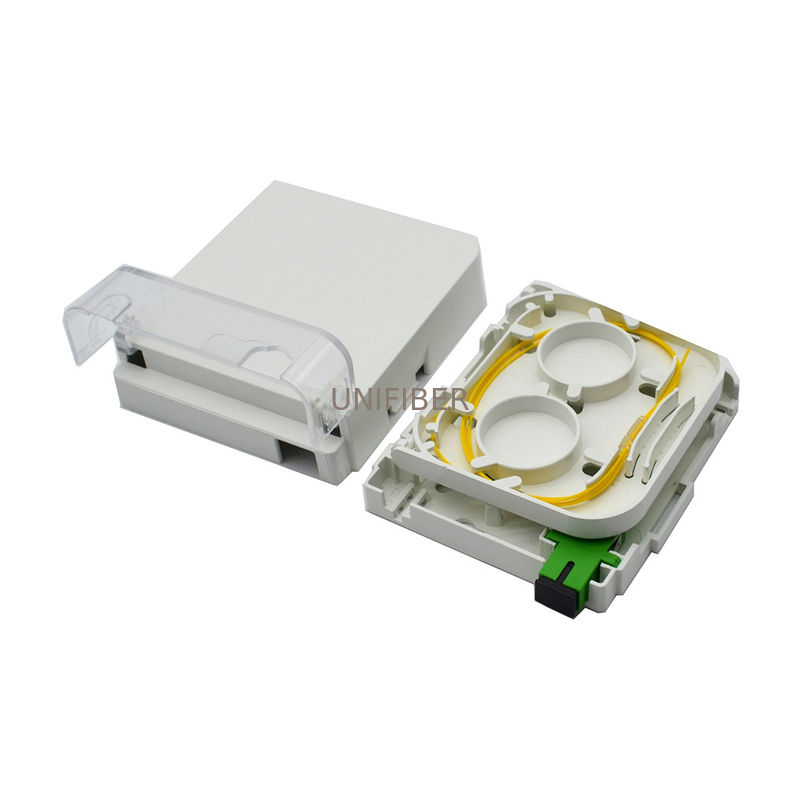

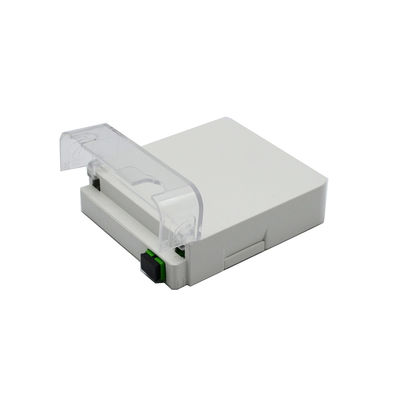

CATV SC APC Fiber Optic Distribution Box 1 Port FTTH

CATV SC APC Fiber Optic Distribution Box 1 Port FTTH
CATV SC APC Fiber Optic Distribution Box 1 Port FTTH CATV SC APC Fiber Optic Distribution Box 1 Port FTTH CATV SC APC Fiber Optic Distribution Box 1 Port FTTH

Large Image :  CATV SC APC Fiber Optic Distribution Box 1 Port FTTH

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER
Certification: ROHS
Model Number: SC/APC 1 Port Fiber Wall Outlet Box
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 3~5 business days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/day
Detailed Product Description
Product: SC/APC 1 Port Fiber Wall Outlet Box Ports: 1 Port
Connector: SC/APC Material: ABS Plastic
Application: FTTH Accessaries: Pigtails And Adapters Pre-loaded
High Light:

SC APC Fiber Optic Distribution Box

,

CATV Fiber Optic Distribution Box

,

FTTH Fiber Optic Wall Mount Enclosures

Fiber Optic Adapter Panel is a user terminal product that achieves fiber-to-desktop solutions with a reasonable design of internal space. For home or work area, complete dual-core fiber access and port output, can fully meet the requirementsof fiber bending radius, and protect the fiber out of the fiber core to provide safe protection. Appropriate radius of curvature, allowing a small amount of redundant fiber inventory, to achieve FTTD (fiber to desktop) system applications.



Features

Small size and light weight for easy installation
Double-layer design for easy installation and maintenance
Single-core, dual-core fiber adapter can choose

With dust-proof device to prevent dust
With a logo bar, easy to manage number and maintain
Applicable with fiber optic cable or indoor cable
Adapter Type: SC, LC
Using high-quality ABS material, with a certain fireproofing performance

Four cable entry, available from the top, bottom, right side into the line, easy to choose routing



Application:
FTTH access network.
CATV Networks

Local Area Networks

Telecommunication Networks

Data communications Networks


Specification

Parameter Value
Model SC/APC 1 Port Fiber Wall Outlet Box
Outside Dimension 115*86*23mm
Material Plastic
Color White
Storage of fibers G.657 fiber
Splice capacity 2 Fiber
Splice Method Fusion splice
Adaptor type and count SC,2SC
Input cable 3mm or Ftth cable(2*3mm)
