Product Details:
Payment & Shipping Terms:
|
Product: | 4U 576 Fiber Ultral High Density MPO Patch Panel | Materials: | Cold Rolled Steel |
---|---|---|---|
Dimension: | 485*470*176mm(4U) | Capacity: | 576 Fiber |
Connector: | LC | Cassette Capacity: | 24 Fiber |
No Of Cassettes: | 24 | Application: | Data Center Solution |
High Light: | 576 Fiber Rack Mount Patch Panel,4U Rack Mount Patch Panel,LC Connector MPO Patch Panel |

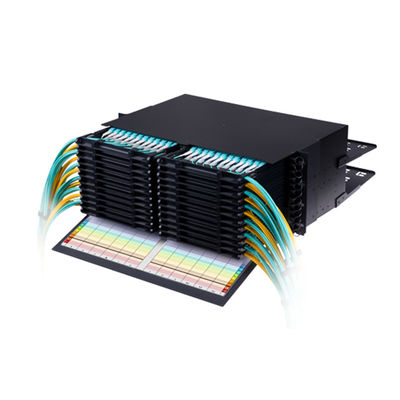

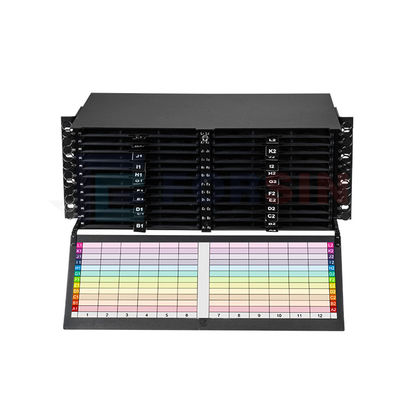

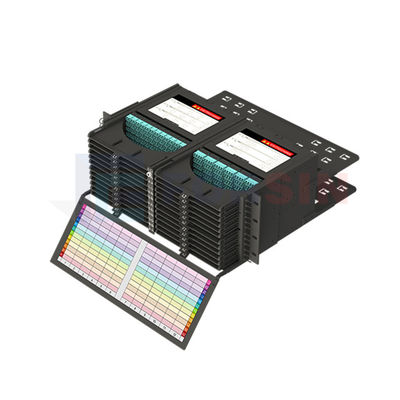

This 4U Rack Mount HD Fiber Enclosure supports maximum 576 fibers. It is mainly installed in server cabinet with capability of housing 24pcs high-density easy-plug MTP / MPO to LC fiber panels or cassettes developed by UNIFIBER. This solution contributes to greater network availability that especially ideal for connection and cable management of Data Center MDA, IDA, HDA and other optical fiber backbones. It can be pre-terminated with MPO/MTP switching modules or MPO/MTP adapter front panels to achieve interconnect and cross-connect of backbone cables and active devices.
Features:
Standard EIA 19'' rack rails
Rivet buckle lockable design avoid sliding
Clear ID marked and Easy to Locate
Improve space to make sure bending rate of fiber Fiber
Application
High density fiber cabling system
Fast cabling system
Backbone network
High integration equipment and device
Data center, SAN system etc.
