Product Details:
Payment & Shipping Terms:
|

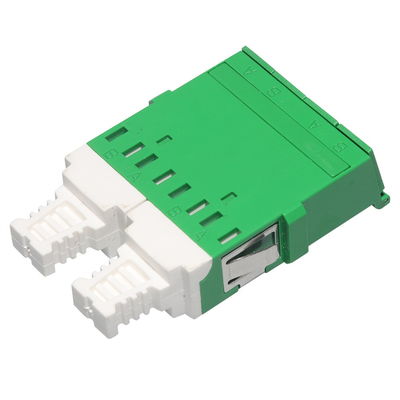

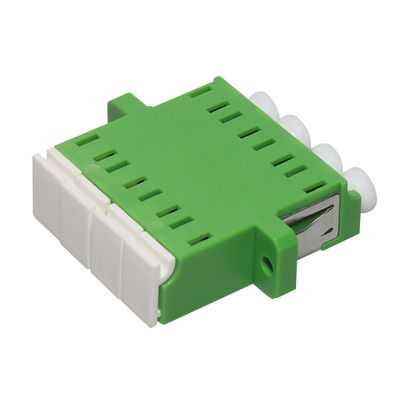

| Product: | Quad LC/APC Shutter Adapter Without Flange Laser Protection | Connector: | LC/APC |
|---|---|---|---|
| Fiber Counts: | Quad LC(4 Cores) | Inserion Loss: | <0.2db |
| Certification: | CE RoHS FCC | ||
| High Light: | Quad LC Fiber Optic Adapter,APC Shutter Fiber Optic Adapter,CATV Fiber Optic Attenuator |
||

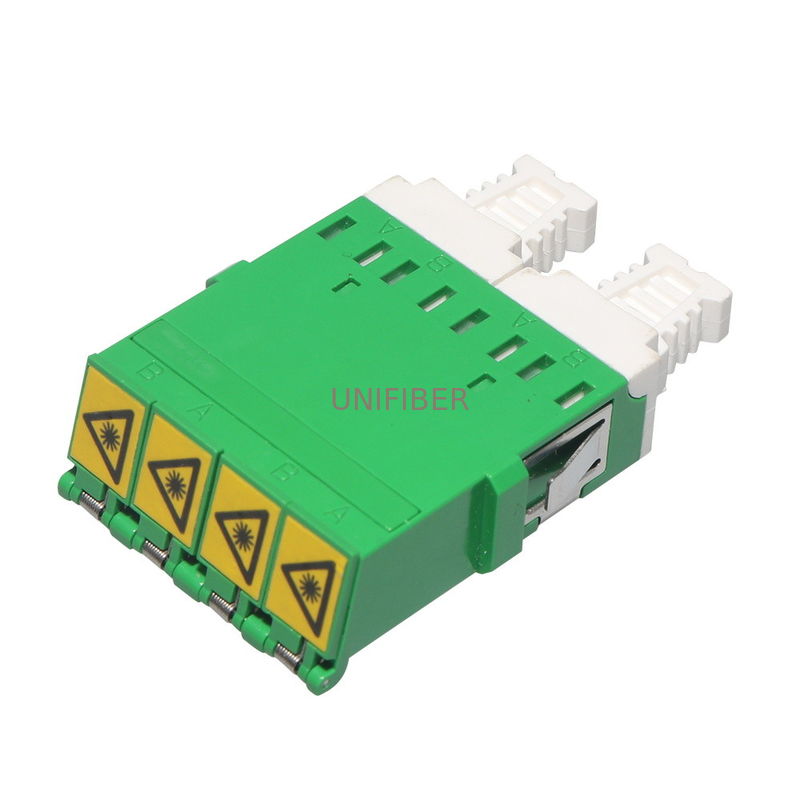

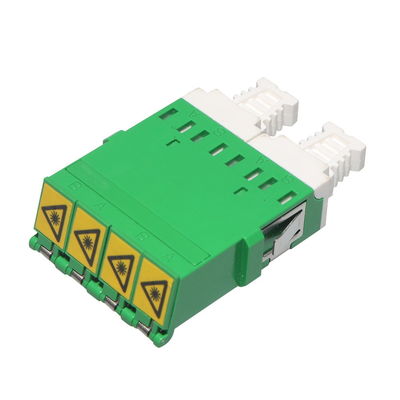

Shutter LC/SC adapter designs provide a cost-effective means of blocking stray light. This is accomplished by an integrated, retractable shutter inside the adapter body, which is only actuated by insertion of the lc connector into the adapter. Contact with the ferrule endface and fiber core is avoided due to the stepped design of the shutter, preventing endface damage.
APPLICATIONS
CATV/LAN
Data transmission
Testing instructure
Telecommunication system
FEATURES
High size precision.
Good repeatability.
Good changeability.
Good temperature stabilization.
High wearable.
| Specification: | ||
| Items | Single mode | Multi mode: |
| Insertion Loss | ≤0.2dB | ≤0.2dB |
| Return Loss | ≥50dB(UPC);≥60dB(APC) | ≥30dB |
| Ceramic ferrule spec | 125.0-125.5um | 126-129um |
| Insert-pull test | 500 times <0.2dB | |
| Operation temperature | -40°C~+85°C | |
| Suitable fiber | PC/APC(9/125um) | PC(50/125um,62.5/125um) |
