| Product: | P-Grade Single Stage 1550nm Polarization-Insensitive Optical Isolator | Grade: | P-Grade |
|---|---|---|---|
| Pigtail Stype: | 900um Loose Tube | Wavelength: | 1550nm |
| Stages: | Single Stage | Connector: | None |
| High Light: | P Grade Fiber Optical Isolator,1550nm Insensitive Fiber Optical Isolator,EDFA Ethernet Optical Isolator |
||

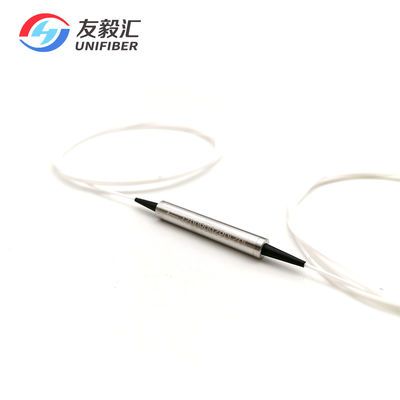

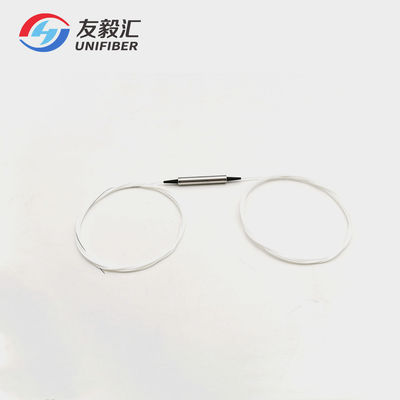

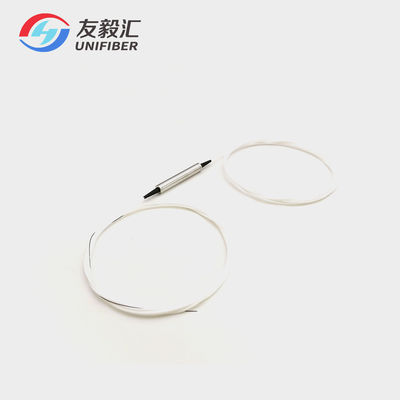

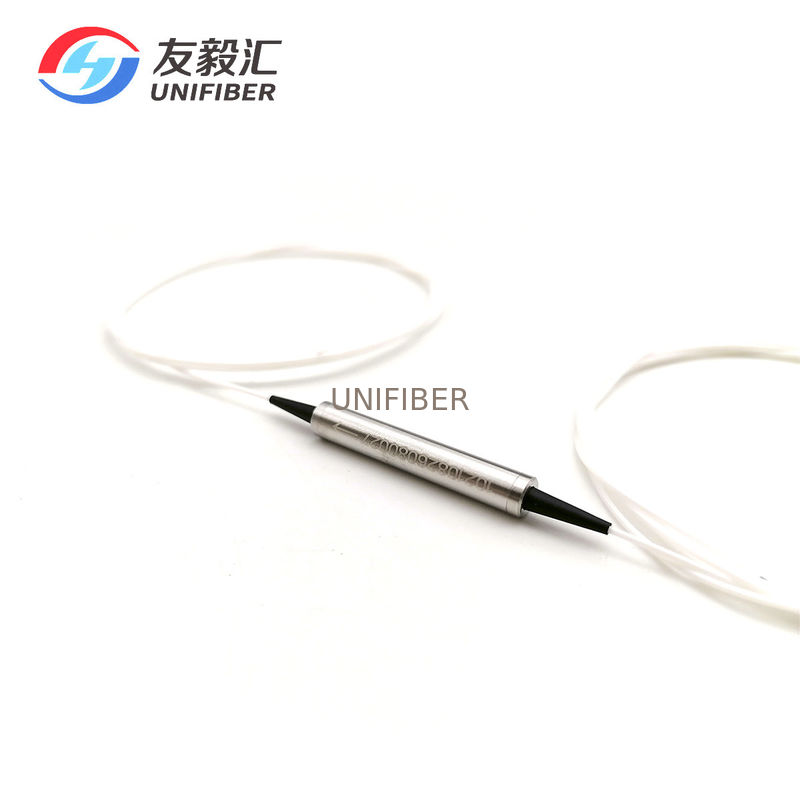

1310nm 1550nm Single stage/Dual stage Polarization-Insensitive Optical Isolator utilizes Faraday effect of Magneto optical crystal. It guides optical light in one direction and eliminates back reflection and back scattering in the reverse direction at any polarization sate.The unique manufacturing process and optical path epoxy-free design enhance the device's high power handling capability. The devices are characterized with high performance, high reliability and low cost. It has been widely used in EDFAs, Raman amplifiers, DWDM systems, Fiber lasers, transmitters and other fiber optic communication equipments to suppress back reflection and back scattering.
Features
High Isolation
Low Insertion Loss
High Return Loss
Low Polarization Sensitivity
Applicaton
EDFA
CATV
Optical Testing
Telecommunications
| P Grade | A Grade | |
| Operating Wavelength (nm) | 1310 or 1550 | |
| ±15 | ||
| Typical Isolation(dB) | 40 | 40 |
| Minimum Isolation (dB) | 30 | 28 |
| Typical Insertion Loss (dB) | ≤0.35 | ≤0.45 |
| Maximum Insertion Loss (dB) | ≤0.5 | ≤0.7 |
| Return Loss (In/Out) (dB) | ≥65/60 | ≥55/55 |
| polarization dependent loss(dB) | ≤0.05 | ≤0.1 |
| polarization mode dispersion(ps) | 0.2(0.05 available upon request) | |
| Operating Temperature(℃) | -10~+75 | |
| Storage Temperature(℃) | -40~+85 | |
| Fiber Type | Corning SMF-28 | |
| Fiber Length(min) | 1M each end | |
| Package Dimension(mm) | Φ5.5xL30 | |
| Power Handling(mW) | 300 | |
