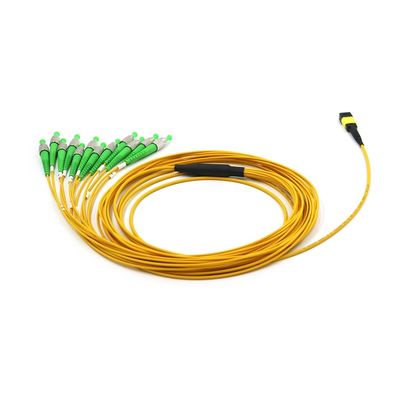

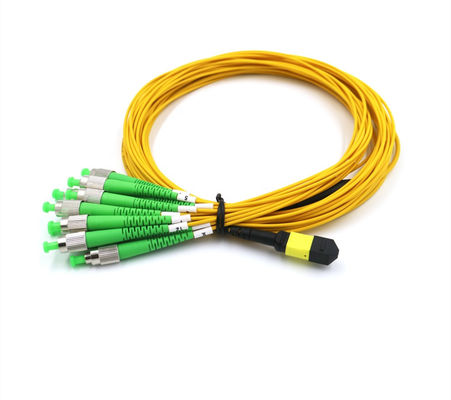

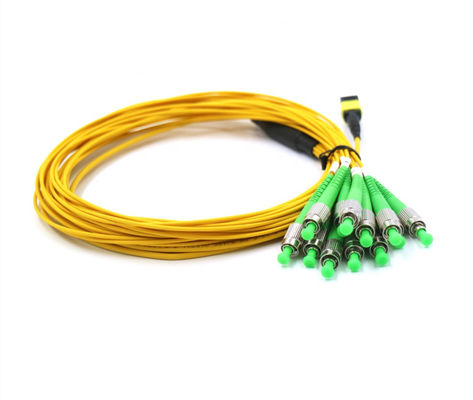

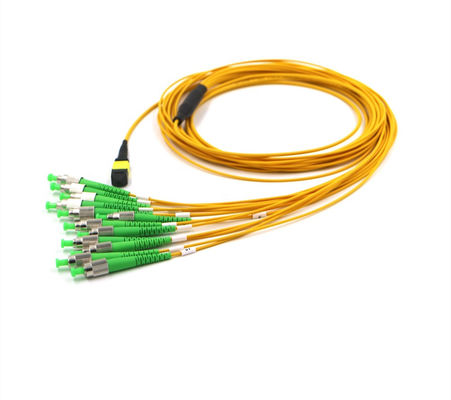

OFNR 12F MPO MTP Patch Cord FC APC Breakout Trunk Cable For Data Center

MPO/MTP harnesses cables are usually divided into three types of MTP-MTP connector, MTP-Common connector and MTP-Secure Keyed LC connector, according to different colors divided into SM, MM and 10G MM. The fiber cores range from 8 to 144.

The Harness MPO(MTP) cables are offered for various applications for all networking and device needs like 100 Gig modules including CFP, CFP2 and CFP4 series. All of our MPO(MTP) harness cables meet IEC 1754-7 and TIA/EIA 604-5 standards. Actually, it belongs to a custom product, please kindly email your requirements to us!

Features:

• With 12-fiber and 24-fiber MPO/MTO connector standard
• Available in OS1/2, OM2, OM3 and OM4
• Available in FC,LC, SC, ST, MU, and MTP
• Interface polished type has PC, UPC and APC
• Support use in attaching directly to 40/100G transceivers
• 100% factory tested, with test results included for each assembly
• Polarity options are TIA style A, B, or C (Method B is standard)
• For transition from trunk backbone assemblies to fiber rack system
• Discrete connectors are heat-cured and use ceramic ferrules and sleeves
• Fan-out fibers from MPO/MTP connectors into individual simplex or duplex
• Used in conjunction with frame (Zero-U) or Flush Mount 1RU panels, and direct connect into SAN equipment
• Customized for length, staggering, connector type, breakout style, fiber count, and labeling

MTP/MPO Specifications:

Below 12Core MTP/APC-LC Breakout 3.0mm Patch Cables spec as reference .MTP Connector is Male Elite APC Usconec Connector Yellow housing,Cable is 12 fiber Singlemode 3.0mm Mini Core cable,Round Fan-out Kits,Breakout 2.0mm.Inside fiber color from 1~12 is Blue,Orange,Green,Brown,Slate,White,Red,Black,Yellow,Violet,Rose ,Aqua.

Remark:

• End Connector type available for LC SX, SC SX, LC DX, SC DX, LC Uni-boot, MU SX, FC, ST, MTRJ
• The default diameter of main mini core cable is Φ3.0mm.
• The diameter of branch cable could be choosen as 0.9mm,2.0mm.
• We can also custom the pulling eyes, welcome to contact us if you need.

Cable Color

• Hybrid Harnesses cables: OS1/2-yellow, OM1/2-orange, OM3/4-Aqua
• 40G/100G Harnesses cables: Aqua
• MPO/MTP-LC Secure Keyed Harnesses cables: OS1/2-yellow, OM1/2-orange, OM3/4-Aqua
