1550nm Polarization Insensitive Isolator WDM Hybrid IWDM For Optical Amplifier

China Shenzhen Unifiber Technology Co.,Ltd certification
China Shenzhen Unifiber Technology Co.,Ltd certification
I'm Online Chat Now

1550nm Polarization Insensitive Isolator WDM Hybrid IWDM For Optical Amplifier

1550nm Polarization Insensitive Isolator WDM Hybrid IWDM For Optical Amplifier
1550nm Polarization Insensitive Isolator WDM Hybrid IWDM For Optical Amplifier 1550nm Polarization Insensitive Isolator WDM Hybrid IWDM For Optical Amplifier 1550nm Polarization Insensitive Isolator WDM Hybrid IWDM For Optical Amplifier

Large Image :  1550nm Polarization Insensitive Isolator WDM Hybrid IWDM For Optical Amplifier

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS
Model Number: 980/1550nm Isolator WDM hybrid
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Blister Case
Delivery Time: 3~5 business days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/day
Detailed Product Description

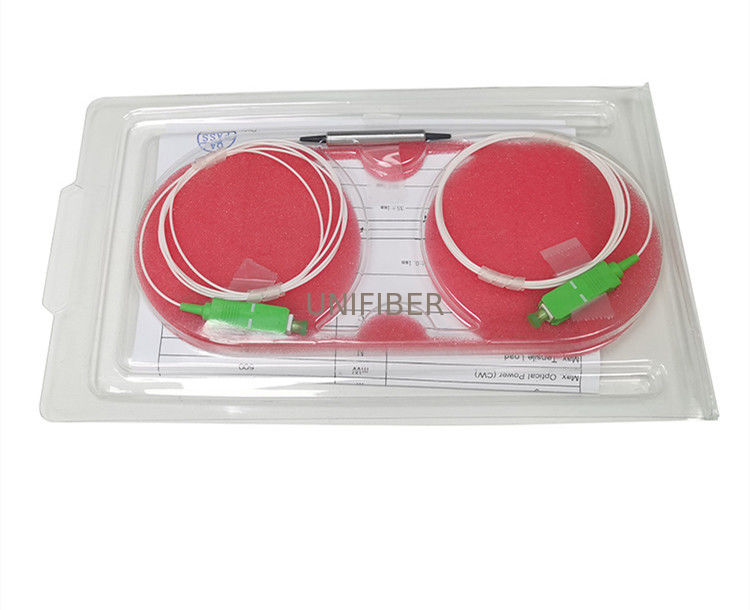

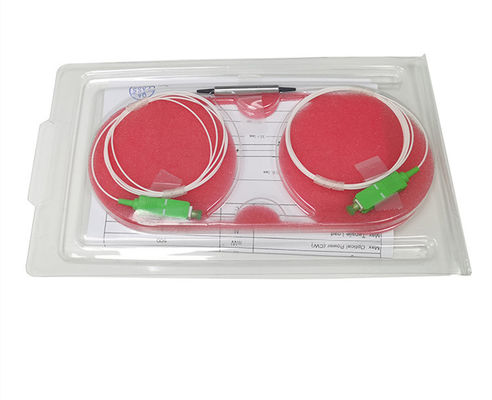

Product: 1550nm/1064nm/980nm Isolator WDM Hybrid Isolator Stage: Dual Stage
Signal Wavelength Range: 1528~1565(C-band) Pump Wavelength Range: 1450~1490nm / 960~990nm
Fiber Type: SMF-28e / Hi1060 Application: Fiber Amplifier
High Light:

WDM Hybrid Polarization Insensitive Isolator

,

1550nm Polarization Insensitive Isolator

,

IWDM Optical Fiber Isolator

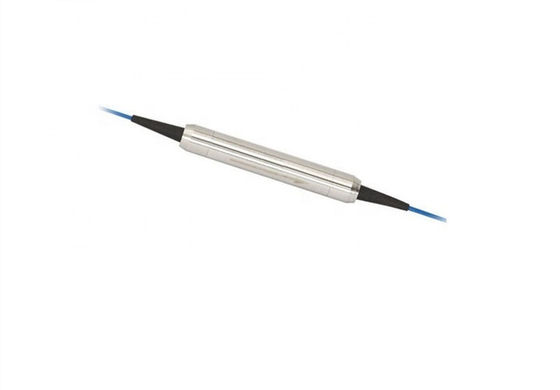

The IWDM is built based on isolator and thin film filter to fullfill hybrid isolator+WDM function in one single compact package, it includes two different confugration due to pump direction, "forward pump" and "backward pump".



Features:
Wide Operating Wavelength
Low IL & PDL & High Isolation
High Stability and Reliability

Application:
Fiber Amplifier
Fiber optic Instrument



Specification

Parameters Unit 1480/1550 980/1550
Isolator Stage --- Single Stage Dual Stage Single Stage Dual Stage
Isolation dB 21 36 21 36
Insertion loss (Signal) dB 0.6 0.8 0.9 1.0
PMD ps 0.25 0.05 0.25 0.05
Signal wavelength range nm 1528~1565(C-band) 1528~1565(C-band)
Pump wavelength range nm 1450~1490 960~990
Insertion loss (Pump) dB 0.5 0.6
Transmitted Isolation (Pump) dB 30 30
Reflected Isolation (Signal) dB 15 15
PDL dB 0.10
WDL dB 0.3
Directivity dB 55
Return loss dB 50
Thermal stability dB/ 0.005
Power handling mW 500
Operating temperature 0 ~ +70
Storage Temperature -40 ~ +85
Package dimension mm 5.5 × 38
Fiber Type:( Common / Pump) --- SMF-28e Hi1060
Fiber Type (Signal) --- SMF-28

Remark:

* Above specifications are for device without connector.

* For devices with connectors, please refer to patchcord spec., the "fiber length" is with connectors.

* Other WDM function can be customized.





5.Ordering lnformation:



PG Stage Pump type Wavelength Pigtail type Package Connector Fiber length

S=single stage

D=dual stage

F=forward

Pump

B=backward

pump

1598=T15/R98

1514=T15/R14

etc

0=Bare fiber

1=0.9mm

Loose tube

2=2mm

3=3mm

S=specified

5.5x38mm

FP=FC/PC

FA=FC/APC

SP=SC/PC

SA=SC/APC

etc

05=0.5m

08=0.8m

1=1m

10=10m





1550nm/980nm Optic Fiber WDM+Isolator Hybrid Device for optical Amplifier
