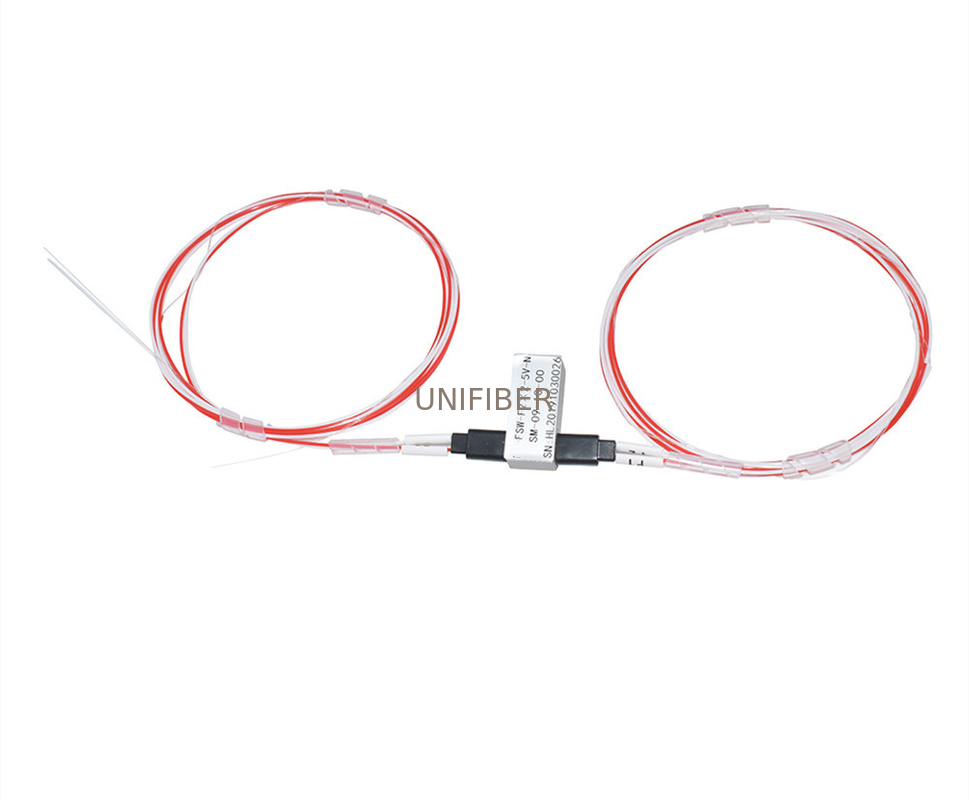

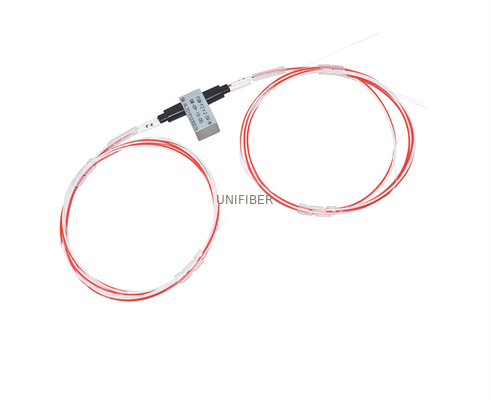

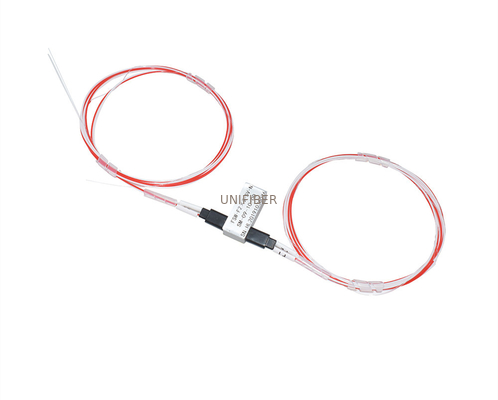

FSW Full 2X2 Fiber Mechanical Optical Switch 5V Non Latching 1550nm 500mW

FSW Full 2X2 Fiber Mechanical Optical Switch 5V Non Latching 1550nm 500mW
FSW Full 2X2 Fiber Mechanical Optical Switch 5V Non Latching 1550nm 500mW FSW Full 2X2 Fiber Mechanical Optical Switch 5V Non Latching 1550nm 500mW FSW Full 2X2 Fiber Mechanical Optical Switch 5V Non Latching 1550nm 500mW

Large Image :  FSW Full 2X2 Fiber Mechanical Optical Switch 5V Non Latching 1550nm 500mW

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER or OEM
Certification: ROHS
Model Number: FSW Full 2X2 Fiber Mechanical Optical Switch
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Blister Case
Delivery Time: 3-5days
Payment Terms: L/C, T/T
Supply Ability: 1000pc/month
Detailed Product Description
Product: FSW Full 2X2 Fiber Mechanical Optical Switch Voltage: 3V Or 5V
Configuration: Full 2X2 Wavelength: 1310/1550nm
Switch Type: Non-latching Application: Optical Singnal Routing
High Light:

FSW Mechanical Optical Switch

,

2X2 Fiber Mechanical Optical Switch

,

500mW Mechanical Optical Switch

Full 2x2 fiber optic switch connects optical channels by directing or blocking an incoming optical signal into the output fiber. This is achieved using a patent pending opto-mechanical configuration and activated via an electrical control signal. A latching version preserves the selected optical path after the drive signal has been removed, while the non-latching versions default to either the open or closed state when power is removed. The Mechanical Fiber Optical Switch has integrated electrical position sensors. The new material based advanced design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as unmatched low cost



Features Applications
Unmatched Low Cost Optical Network
Low Insertion loss Protection/Restoration
High Channel Isolation Optical Singnal Routing
High Stability, High Reliability Configurable Optical Add/Drop
Epoxy-free on Optical Path Transmitter and receiver protection
Latching and Non-latching Network Test System



Specifications



Operating Wavelength

1260~1620nm(SM)

850nm(MM)

Insertion Loss ≤1.0dB
Wavelength Dependent Loss ≤0.25dB Polarization Dependent Loss ≤0.05dB
Temperature Dependent Loss ≤0.20dB Return Loss

SM≥50dB

MM≥30dB

Cross Talk

SM≥55dB

MM≥35dB

Switch Time ≤8ms
Repeatability ≤±0.02dB Durability ≥107 times
Operating Voltage 3 or 5V Switch Type Non-Latching/Latching
Operating Temperature -20~+70℃ Storage Temperature -40~+85℃
Optical Power ≤500mW Dimension 27.0L×12.0W×8.2H mm



Pin Configurations



Type Optical Route Electric Drive State Sensor
F2×2 Pin 1 Pin5 Pin6 Pin10 Pin 2-3 Pin3-4 Pin7-8 Pin 8-9
Latching P1-P4,P2-P3 -- -- GND V+ Close Open Open Close
P1-P3,P2-P4 V+ GND -- -- Open Close Close Open
Non-latching P1-P4,P2-P3 -- -- -- -- Close Open Open Close
P1-P3,P2-P4 V+ -- -- GND Open Close Close Open
