8 Core Female MPO MTP Patch Cord 4x LC Duplex Breakout OM3 Multimode

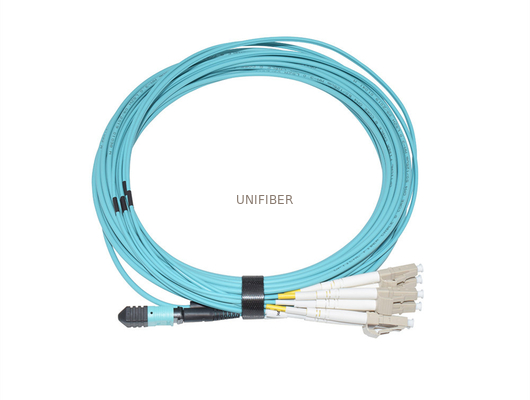

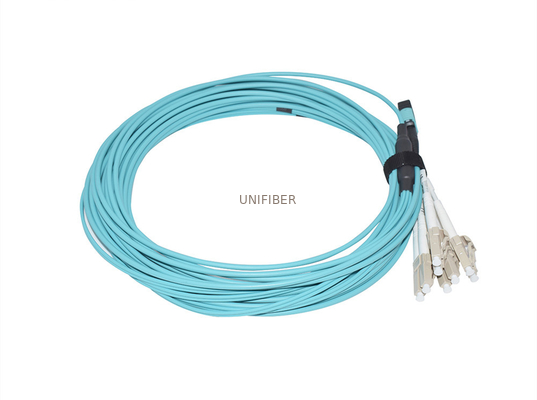

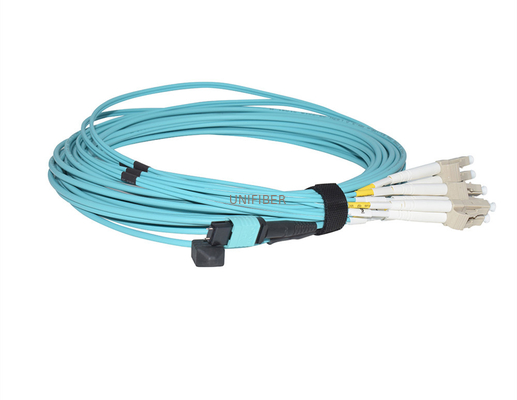

Large Image : 8 Core Female MPO MTP Patch Cord 4x LC Duplex Breakout OM3 Multimode

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER or OEM
Certification:	ROHS
Model Number:	MPO to LC Breakout Fiber Optic Patch Cord

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	PE bag
Delivery Time:	3-5days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	8 Core MPO To LC Breakout Fiber Optic Patch Cord	Fiber Counts:	8 Fiber
Connector A:	MPO Male	Connector B:	4x LC Duplex
Fiber Type:	Multimode OM3	Polarity:	B
High Light:	Female MPO MTP Patch Cord , 8 Core MPO MTP Patch Cord , 4x LC Duplex Multimode Patch Cord

MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores versions using a compact and rugged microcables structre. The compact cable optimize cableway use and improve airflow. These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.

FEATURES

Supports up to 12F, 24F, 48F, 72F, 96F, 144F

Supports 40G and 100G network applications

Rapid configuration and networking, reduce installation time

Jacket material: LSZH, OFNR, OFNP available

customized products are available

APPLICATION

High density architectures

Data communication network

Optical System Access network

Storage area networking fiber channel

Performance Level			Standard		Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO/MTP	SM	12F/APC	≤0.70	≥60	≤0.35	≥60
		24F/APC	≤0.75	≥60	≤0.35	≥60
		48F/APC	≤0.75	≥60
	MM	12F/PC	≤0.50	≥20	≤0.35	≥20
		24F/PC	≤0.50	≥20	≤0.35	≥20
		48F/PC	≤0.50	≥20
LC/SC/FC/ST	SM		≤0.30	≥60	≤0.10	≥60
	SM	UPC	≤0.20	≥50	≤0.10	≥50
	MM	PC	≤0.20	≥30	≤0.10	≥30

Note:

1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;

2.Standard conformance: GR-326,GR-1435.

Mechanical Properties
Item		Criteria	Conformance
△IL After 50 Matings	MPO/MTP	≤0.3dB	GR-1435
△IL After 500 Matings	LC/SC/FC/ST	≤0.2dB	IEC 61300-2-2
Min Bend Radius (Dynamic)		20*OD (Cable Diameter)
Min Bend Radius (Static )		15*OD (Cable Diameter)
