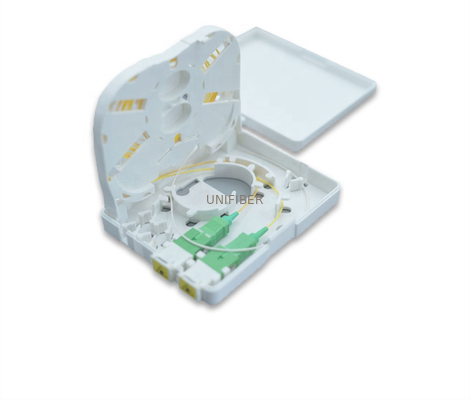

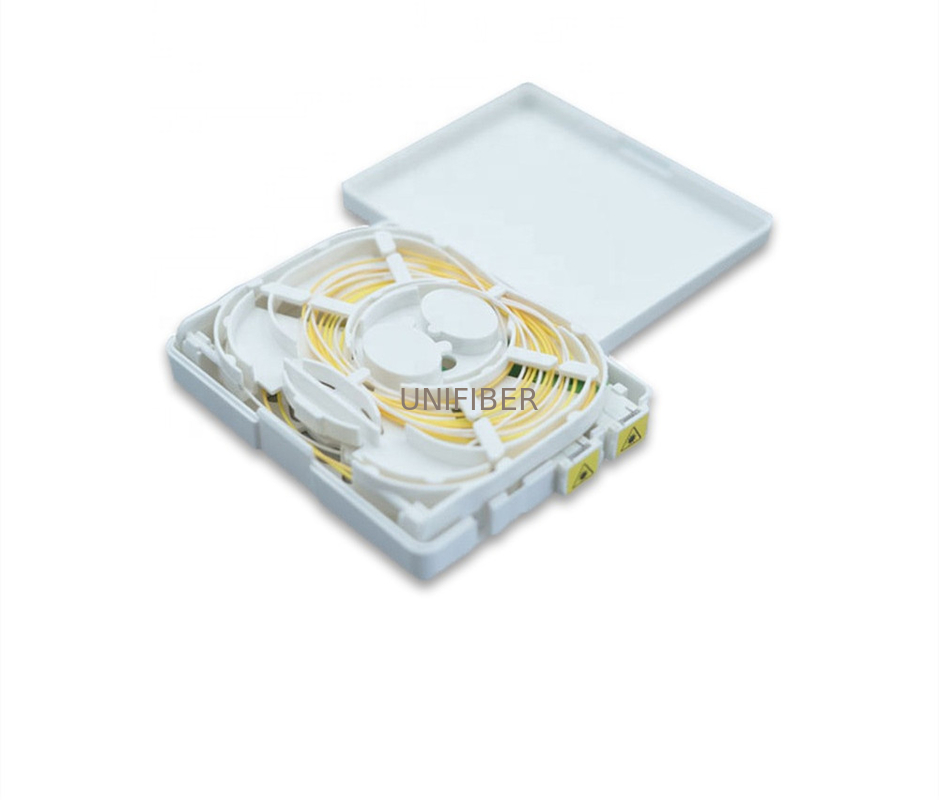

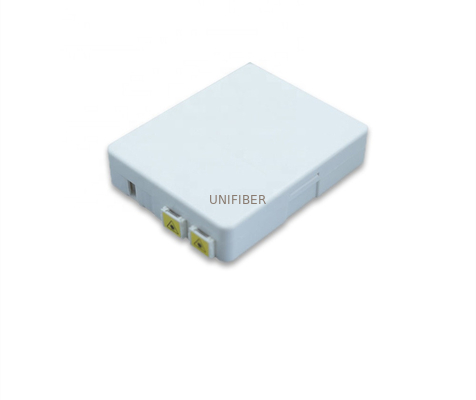

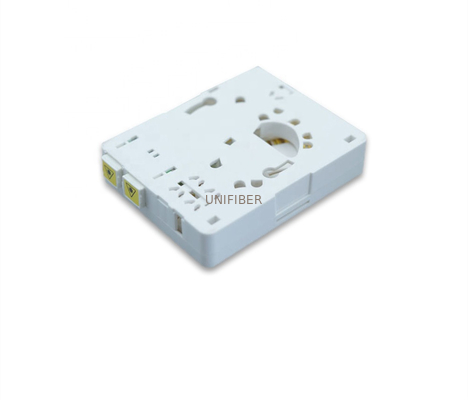

Flame Retardant FTTH Termination Box Wiring Zone SC APC Fiber Optic Faceplate

Large Image : Flame Retardant FTTH Termination Box Wiring Zone SC APC Fiber Optic Faceplate

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER or OEM
Certification:	ROHS
Model Number:	FTTH 2 ports SC Fiber Optic Faceplate

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Carton box
Delivery Time:	3-5days
Payment Terms:	L/C, T/T
Supply Ability:	10000pcs/day

Contact Now

Detailed Product Description

Product:	FTTH 2 Ports SC Fiber Optic Faceplate	No Of Ports:	2
Connector:	SC/APC	Material:	ABS / Flame-retardant ABS
Application:	FTTH	Name:	FTTH Termination Box
Highlight:	Flame Retardant FTTH Termination Box , Wiring Zone FTTH Termination Box , SC APC Fiber Optic Faceplate

Application:

Wildly used indoors to provide user with optical or data interface.Features:

* Material:ABS / flame-retardant ABS

* Two SC adapter interface

* Reversible tray increase the distribution space with clear splicing and wiring zone

Specification:
Model No.	GPMB-E	Outer carton(mm)	500×390×320/220pcs
Dimension (mm)	1008023	CBM(m³)	0.063
Weight(Kg)	0.077	Gross weight(Kg)	18.5
Cable inlet/outlet	3 / 2	Accessories
Cable diameter	Φ3mm or Drop cable(2*3mm)	M4×25mm Expansion Screw	2 pcs
Max core capacity	2(single core)	Heat shrinkable sleeve	optional
