Product Details:
Payment & Shipping Terms:
|
| Product: | Non-latching C/L-band 1x8 Mems Optical Switch | Wavelength Range: | C/L-band |
|---|---|---|---|
| Switch Mode: | Non-latching | Switching Time: | 20ms |
| Fiber: | 250um Bare Fiber | Application: | Protection Switching |
| High Light: | 20ms Fiber Optical Switch,1x8 Mems Fiber Optical Switch,OADM Mechanical Optical Switch |
||

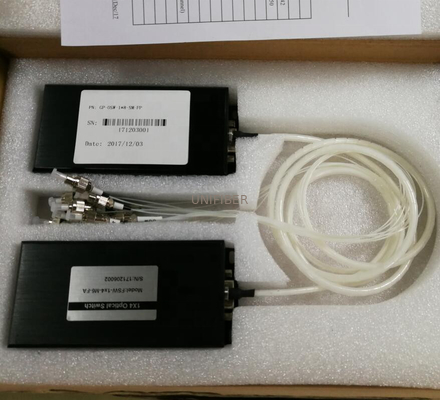

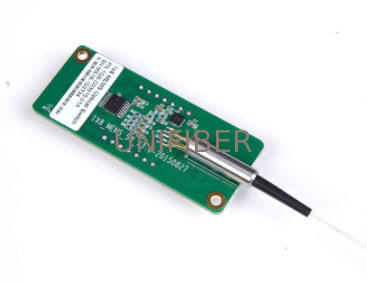

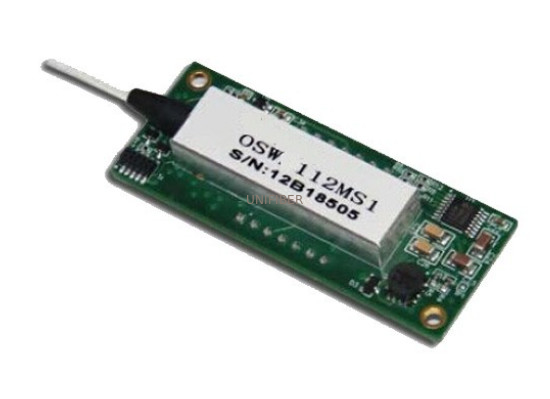

MEMS OSW is based on micro-electro-mechanical system (MEMS) technology, which achieved low insertion loss and highly repeatability by rotating the mirror of MEMS chip. MEMS OSW is mainly used in optical cross and connection (OXC) system, optical add/drop system, measure instrument system and optical signal monitoring system.The products are Telcordia GR-1073-CORE qualified, and RoHS compliant.
Features:
● Compact size
● Fast switch time
● Low insertion loss, low PDF, low WDL
● High durability
Application
● Protection switching
● Network monitoring
● OADM, OXC, OPM
Product Configurations:
Dimensions Diagram
Not marked tolerances according to GB1804-m.
OTHER PACKAGE REQUIREMENT
ESD Packing
LABELING SCHEME
6.1 On Connector
NA
6.2 On the device
S/N: xxxxxxxx
6.3 Label Definition
X=Com, CH1, CH2, CH3……CHN
| Parameters | Specifications | Unit |
| operating wavelength | 1525~1565 | nm |
| Insertion Loss | ≤1.2 | dB |
| Crosstalk | ≥40 | dB |
| PDL | ≤0.15 | dB |
| WDL | ≤0.3 | dB |
| TDL | ≤0.3 | dB |
| Return Loss | ≥40 | dB |
| Repeatability | ≤0.1 | dB |
| Durability | ≥1×109 | cycle |
| Switch Time | ≤30 | ms |
| Power Supply | 500 | mW |
| Switch Mode | Non-latching | |
| Power Supply | ≤58 | V |
| Power Consumption | ≤2 | mW |
| Fiber Type | 9/125 single mode fiber | |
| Fiber Pigtail | 9/125/250um bare fiber | |
| Fiber Length | 1.00±0.05 | m |
| Connector | NA | |
| Package Dimension | φ5.5×42 | mm |
| Operation Temperature | -5 ~ +65 | ℃ |
| Storage Temperature | -40 ~ +85 | ℃ |
| Operation Humidity | 5 ~ 95 | %RH |
| Storage Humidity | 5 ~ 95 | %RH |
Pins
| Pin NO. | Property | Note |
| 1 | GND | |
| 2 | Anode(+) | Vy |
| 3 | Anode(+) | Vx |
