Product Details:
Payment & Shipping Terms:
|
| Product: | LC/APC Ribbon Fiber Fan-out Pigtails 12 Core | Connector: | LC/APC |
|---|---|---|---|
| Fiber Counts: | 12 Core | Fiber Type: | Single Mode G657A2 |
| Pigtail Length: | 1.5m | Application: | Fiber Patching |
| High Light: | LC APC Fan Out Pigtails,900um Fan Out Pigtails,G657A2 Single Mode Fiber Pigtail |
||

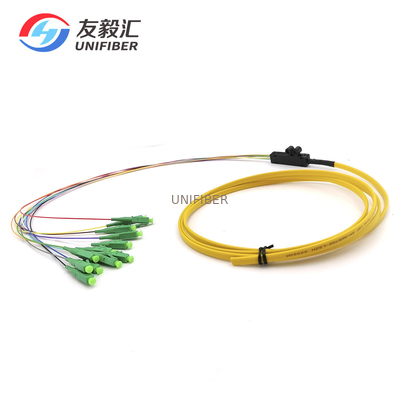

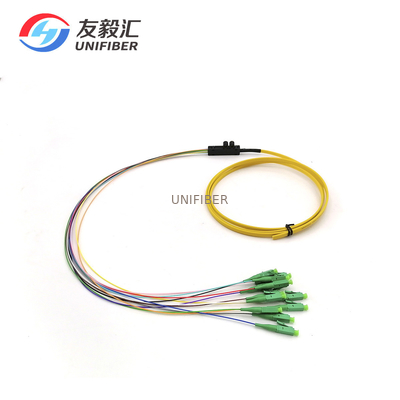

12F Ribbon Fan-out Fiber Optic Pigtail is a multi-fibers pigtail which made by Ribbon cable. The ribbon fiber fanout via a 1x12 fanout kit. The fanout cable can be 900um or 2.0mm cable. This 4-12F Ribbon Fan-out Fiber Optic Pigtail are available in both single and multimode versions with either APC or UPC polish types.
Features:
– Low insertion loss and high return loss;
– Good repeatability & interchangeability;
– PC, UPC, APC polishing; FC, SC, ST, LC, MU connector;
– Suitable for high-speed, high-capacity optical fiber transmission system;
– Provide single mode/ multimode patch cord and pigtails;
– Fiber diameter: Φ0.9mm, Φ2.0mm, Φ3.0mm;
– Length/Type: according to customers’ demands.
Products info
| Fiber count | 12 | Fiber Mode | 9/125μm |
| Connector Type1 | LC/APC | Connector Type2 | Unterminated |
| Fiber Mode | SM G657A2 | Breakout length | 0.5m |
| Wavelength | 1310/1550nm | Jacket Material | PVC/LSZH |
| Insertion loss | ≤0.3dB | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
