| Product: | Polarization Maintaining Mechanical Optical Switch | Fiber: | PM Panda Fiber |
|---|---|---|---|
| Type: | Latching Or Non-latching | Ports: | 1 X 2 (2 X 2 Optional) |
| Pigtail: | 250um Or 900um | Connector: | SC/APC Or Specify |
| High Light: | 2x2 PM Fiber Optical Switch,250um Pigtail Fiber Optical Switch,Non Latching PM Optical Switch |
||

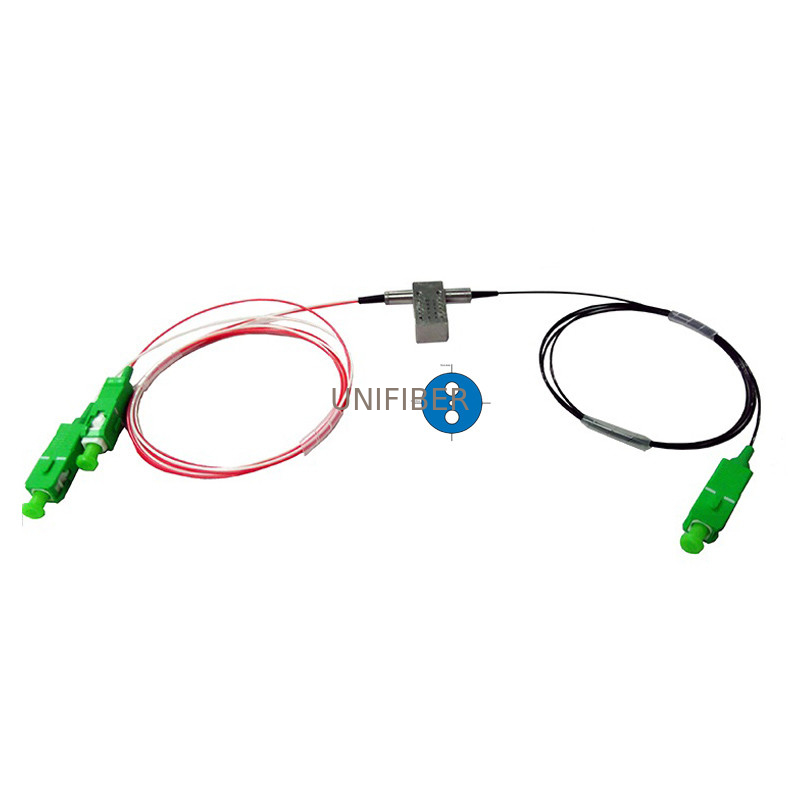

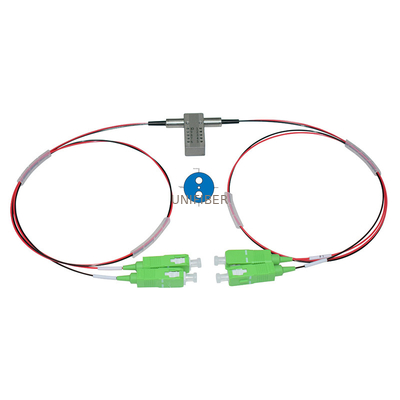

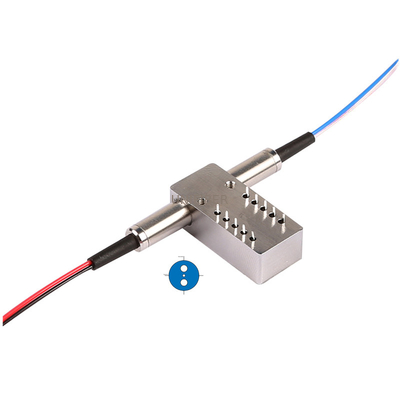

Polarization maintaining mechanical optical switch has been widely used in the field of PON networks, optical cross and connection system, network monitor, optical fiber ring protection along with excellent features: very low insertion loss(less than 0.5dB),fast switch speed, high stability & compact size.
| Parameter | Unit | Specification | |
| Wavelength range | nm | 1260~1360 or 1510~1610 | |
| Switch type | / | Latching | Non-Latching |
| Insertion loss | dB | ≤0.65 | |
| WDL | dB | ≤0.20 | |
| Extinction ratio | dB | ≥20 | |
| Return loss | dB | ≥50 | |
| Cross talk | dB | ≥55 | |
| Repeatability | dB | ≤±0.03 | |
| Switching speed | ms | ≤10 | |
| Operating voltage (VDC) | V | 5 | |
| Durability | Cycles | >100,00,000 | |
| Operating current | mA | 40 | 28.1 |
| Coil resistance | Ω | 125 | 178 |
| Working axis | / | Both axis working | |
| Handling power | mW | 500 | |
| Operating temperature | ℃ | 0~70 | |
| Storage temperature | ℃ | -40~85 | |
| Fiber type | / | PM Panda Fiber | |
| Dimensions | mm | 27(L) x 12(W) x 8.2(H) | |
IL is 0.3dB (1310~1550nm) higher, RL is 5dB lower and ER is 2dB lower for each connector added. The default connector key is aligned to slow axis.
Electrical Configuration:
| Latching Type: | ||||||||
| Optical Path |
Electric Control | Status Sensor | ||||||
| PIN1 | PIN5 | PIN6 | PIN10 | PIN2-3 | PIN-4 | PIN-8 | PIN-9 | |
| P1-P2 | V+ | GND | - | - | open | close | close | open |
| P1-P3 | - | - | GND | V+ | close | open | open | close |
| Non-latching: | ||||||||
| Optical Path |
Electric Control | Status Sensor | ||||||
| PIN1 | PIN10 | PIN2-3 | PIN3-4 | PIN7-8 | PIN8-9 | |||
| P1-P2 | V+ | GND | open | close | close | open | ||
| P1-P3 | - | - | close | open | open | close | ||
