LSZH G657A2 Outdoor FTTH Drop Cable GJYXCH 1/2/4 Core FRP

LSZH G657A2 Outdoor FTTH Drop Cable GJYXCH 1/2/4 Core FRP
LSZH G657A2 Outdoor FTTH Drop Cable GJYXCH 1/2/4 Core FRP LSZH G657A2 Outdoor FTTH Drop Cable GJYXCH 1/2/4 Core FRP

Large Image :  LSZH G657A2 Outdoor FTTH Drop Cable GJYXCH 1/2/4 Core FRP

Product Details:
Place of Origin: China
Brand Name: Unifiber or OEM
Certification: ROHS
Model Number: Outdoor FTTH Drop Cable
Payment & Shipping Terms:
Minimum Order Quantity: 100km
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 3~5 days
Payment Terms: L/C, T/T
Supply Ability: 1000KM/day
Detailed Product Description
Product: Outdoor FTTH Drop Cable 1/2/4 Core Fiber Counts: 1/2/4 Core
Strength Member: FRP/KFRP/Steel Wire Fiber Type: G657A2
Cable Jacket: LSZH Application: FTTH
High Light:

G657A2 Outdoor FTTH Drop Cable

,

LSZH FTTH Drop Cable

,

FRP Fiber Optic Drop Cable

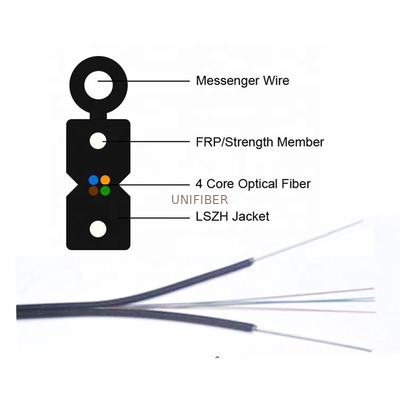

1/2/4 core G.657A2 Outdoor FTTH Drop Cable GJYXCH is positioned in the center. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then, the cable is completed with a black or color LSZH sheath



Characteristics
1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
2. Two parallel strength members ensure good performance of crush resistance to protect the fiber
3. Simple structure, light weight and high practicability
4. Low smoke,zero halogen and flame retardant sheath
5. Novel flute design, easily strip and splice, simplify the installation and maintenance



Application:
1. Access network

2. fiber to the home
2. Support the Internet , CATV , telephone and more network service in the future



Item
FTTH GJYXCH Drop Cable 1/2/4 core G.657A2 Drop Cable
Cable type
GJYXCH-1,2,4B6.A2
Cable Dimension
5.2mm x 2.0mm
Fiber type
9/125 (G.657A2)
Fiber Counts
1
2
4
Tight buffer color
Nature
Nature, Blue
Nature,Blue,Orange,Green
Sheath material
LSZH
Sheath Color
White or Black
Cable weight
18.5Kg/Km
Min. bending radius
120mm
Min.bending radius(rip off the messenger wire)
10 (Static) 25 (Dynamic)
Attenuation dB/km
≦ 0.336 at 1310nm, ≦ 0.198 at 1550nm
Short term tensile
600N
Crush resistance
2200N/100mm
Operation temperature ℃
-20~+70



LSZH G657A2 Outdoor FTTH Drop Cable GJYXCH 1/2/4 Core FRP 0LSZH G657A2 Outdoor FTTH Drop Cable GJYXCH 1/2/4 Core FRP 1
