Product: | 4 Ports Mini Fiber Optic Termination Box | No Of Ports: | 4/6/8/12 Optional |
---|---|---|---|
Waterproof Grade: | IP68 | Connector: | Huawei Mini SC/APC |
Loaded Splitter: | 1x4 Mini PLC Splitter | Application: | FTTx |
High Light: | FTTA Fiber Optic Termination Box,SC APC Fiber Optic Termination Box,1x4 Splitter Optical Distribution Box |

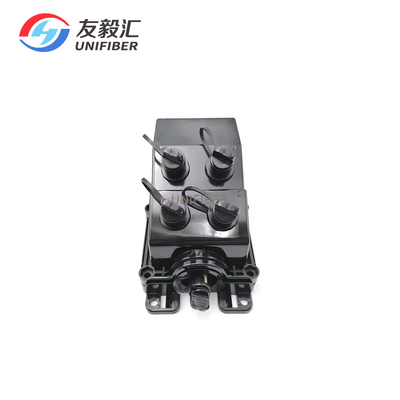

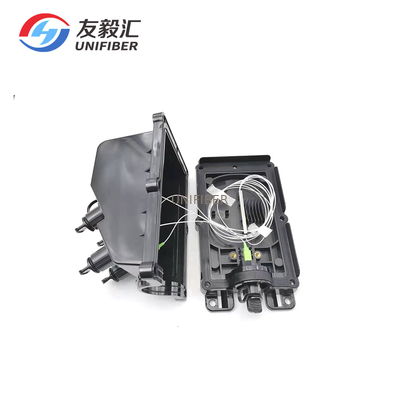

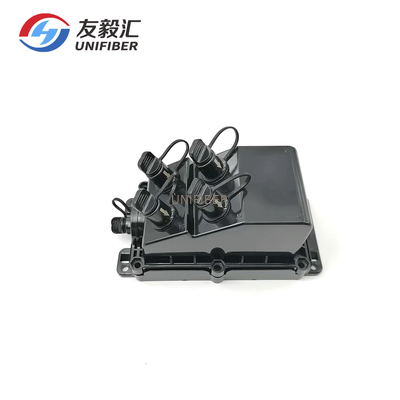

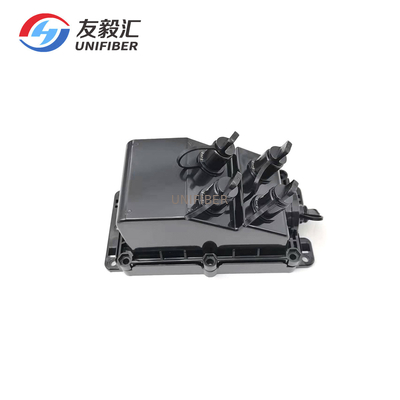

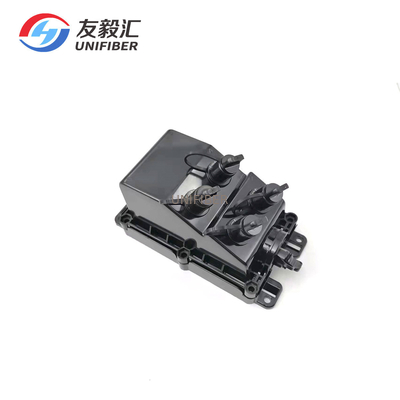

This mini FTTX FiberHub Enclosure Box is a new economic fiber distributed solution for outdoor use. It come as 4/6/8/12 ports for options, can be loaded with mini SC, Optitap,ODVA or customized waterproof connector, normally loaded with Mini 1x4 or 1x8 PLC Splitter inside the box. Compare traditional products, it is easy to operate and has high compatibility.It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation. FTTX Enclosure not only used in FTTH field, but also used in FTTA or other harsh environment.
Features:
From 2 to 12 ports for single or multifiber harsh connectors.
IP68 waterproof rating.
Available with PLC or splice sleeve for fiber divide .
High compatibility: can be assembled ODVA, H connector(OptiTap compatible), Mini SC, ODC, PTLC, PTMPO or power adapter.
Wall-mounting, aerial installation or holding pole installation.
Application:
Outdoor harsh environment
FTTH field
FTTA field
Trunk cable connecting
Prospecting or military communication
Items |
Specifications |
Dimensions LxWxH |
365x137x90mm(Without cover) 375x142x120mm(With cover) |
Ingress protection |
IP68 |
Temperature range |
-40 to + 80°C |
Cable strength member |
Armoured or Non-armoured |
Cable type |
Hybrid or non-hybrid |
Round cable OD |
5.0mm to 14mm |
Flat cable dimension |
4.6x8.9mm |
Cable jacket material |
LSZH, PEorTPU |
Bending Radius |
20D |
Cable crush resistance |
200N/cm long term |
Fire protection rating |
UL94-V0 |
Number of PLC |
1 to 2pcs |
Number of fusion protection sleeve |
1 to 24pcs |
