72 Core Underground Dome Fiber Splice Closure 5 Cable Ports Polymer Plastics

72 Core Underground Dome Fiber Splice Closure 5 Cable Ports Polymer Plastics
72 Core Underground Dome Fiber Splice Closure 5 Cable Ports Polymer Plastics 72 Core Underground Dome Fiber Splice Closure 5 Cable Ports Polymer Plastics

Large Image :  72 Core Underground Dome Fiber Splice Closure 5 Cable Ports Polymer Plastics

Product Details:
Place of Origin: China
Brand Name: Unifiber or OEM
Certification: ROHS
Model Number: GPJ09-5609
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 3~5 days
Payment Terms: L/C, T/T
Supply Ability: 500pcs/day
Detailed Product Description
Product: 72 Core Underground Dome Fiber Splice Closure With 1×8 Mini Splitter Capacity: 72 Core
Cable Diameter: Ф8-18 Mm Sealing Method: Mechanical Seal, Heat Shrink Seal
Material: Polymer Modified Plastics Application: Aerial, Wall Mounting, Pole Mounting, Underground
High Light:

72 Core Fiber Splice Closure

,

Underground Dome Fiber Splice Closure

,

Polymer PlasticsOutdoor Fiber Enclosure

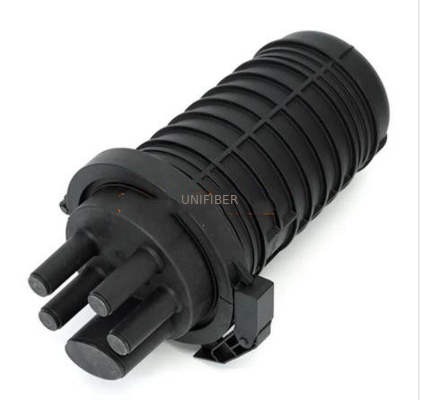

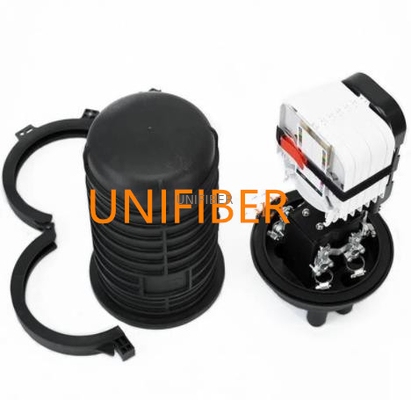

GPJ09-5609 has the versatility and features that make it a perfect choice for fiber-to-the-home networks. There are 5 ports on the base, 1 uncut and 4 branch, applicable to φ8-18mm cables. The closure also applies to 1:8 mini splitter, 1 piece per tray. Satisfactory space for the placement of fiber joints and fiber storage prevents the joints from being influenced by the external environment.



Features:

● Ports: 1 uncut, 4 branch, Ф8-18 mm
● Capacity: 72
● Seal: mechanical seal, heat shrink seal
● Waterproof: IP68
● Material: polymer modified plastics
● Applications: aerial, wall mounting, pole mounting, underground



Application:

Model No. GPJ09-5609
Style Dome/ Vertical
Dimensions (H*D) 395 × Φ225 mm
Material Polymer Modified Plastics
Sealing Type Housing Mechanical Seal
Ports Heat Shrink Seal
Protection Grade IP68
Cable Ports Uncut 1 Φ8 - Φ18 mm
Branch 4
Fiber Splice Capacity 72
Tray Capacity 12
Tray Count 6
Weight 2.5 - 3.2 kg
Application Aerial/WallMounting/Pole Mounting/Underground
Packing Type Inner Carton 410×235×205 mm (1 PCS)
Outer Carton 740×440×450 mm (6 PCS)

72 Core Underground Dome Fiber Splice Closure 5 Cable Ports Polymer Plastics 0
