Product Details:
Payment & Shipping Terms:
|
Product: | 8F/12F MT-MT Ribbon Fiber Patch Cord | Fiber Counts: | 8 Fiber Or 12 Fiber |
---|---|---|---|
Connector Type: | MT Male Or Female | Fiber Type: | Bare Ribbon Fiber |
Data Rate: | 40G | Application: | QSFP Module |
High Light: | QSFP Module MPO MTP Patch Cord,Bare Ribbon MPO MTP Patch Cord,12F MT Fiber Patch Cord |

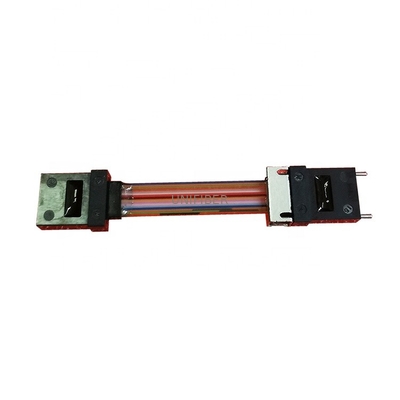

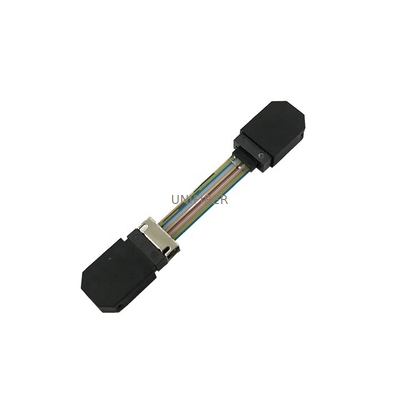

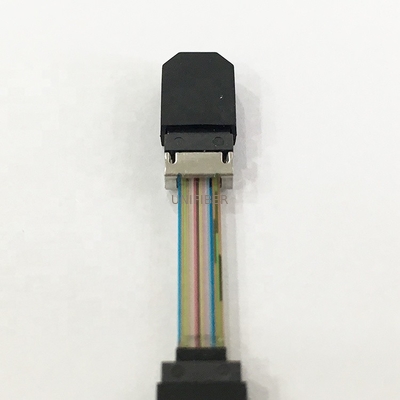

The 8-core and 12-core MT-MT jumper is mainly used for a parallel optical technology module (QSFP), which is used to connect optical lenses to external ports.
Features:
Fiber optic cross connection;
40G transfer rate;
Small size PIN positioning;
Plane lapping;
Standard wear and tear or low loss;
8 cores or 12 cores are optional;
Fiber or loose parts for internal connection;
The length shall be determined according to the blank requirements in QSFP module.
Application:
QSFP module
Array laser
Multichannel equipment
Specification
Item
|
SM Standard
|
SM Low Loss
|
MM Standard
|
MM Low Loss
|
Insertion Loss
|
Typical :0.25dB
|
Typical:0.10dB
|
Typical:0.2dB
|
Typical:0.8dB
|
Maxium:0.750dB
|
Maxium:0.35dB
|
Maxium:0.5dB
|
Maxium:0.35dB
|
|
Return Loss
|
≤60dB
|
≤60dB
|
≤25dB
|
≤25dB
|
Durability
|
≤0.2dB change,
500matings
|
≤0.2dB change,
500matings
|
≤0.2dB change,
1000matings
|
≤0.2dB change,
1000matings
|
Operating Temperature
|
-40~75℃
|
|||
Ferrule Type
|
4/8/12/16/24/32
|
8/12/14
|
4/8/12/16/24/32
|
8/12/14
|
