Product Details:
Payment & Shipping Terms:
|

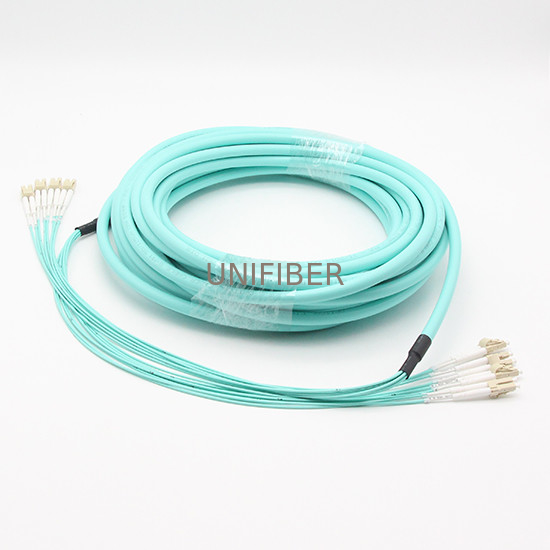

| Product: | Pre-terminated Multifiber Breakout Patch Cable | Fiber Counts: | 8/12/24 Core |
|---|---|---|---|

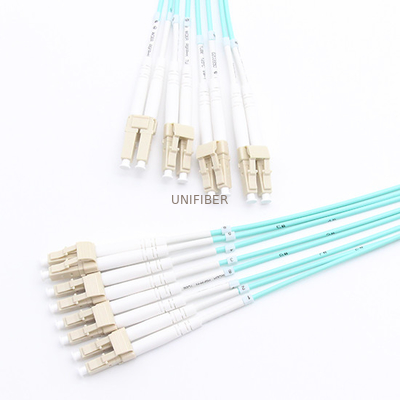

| Connector: | LC/UPC | Fiber: | OM3 Multimode |
| Wavelength: | 850nm | Jacket: | LSZH/PVC/OFNR/OFNP |
| High Light: | Multifiber Breakout Patch Cable,LC UPC Breakout Patch Cable,OM3 Multimode Breakout Patch Cord |
||
Breakout Patch cables are installation cables that are suitable for laying in buildings, primarily in cable conduits and cable trays. Can be used as a building backbone or horizontal distribution, and they are operating in an uncontrolled or harsh environment.
FEATURES
100% pre-terminated and tested in factory to ensure transfer performance
Rapid configuration and networking, reduce installation time
Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available
APPLICATIONS
Connected with trunk cables on one end, equipment port on the other end.
Connected with transfer modules on one end, equipment port on the other end.
| Connector | LC | Jacket OD(mm) |
8cores:10.5mm
|
| Fiber Mode | 50/125μm | Jacket Color | |
| Polish | PC | Wavelength | MM:850nm |

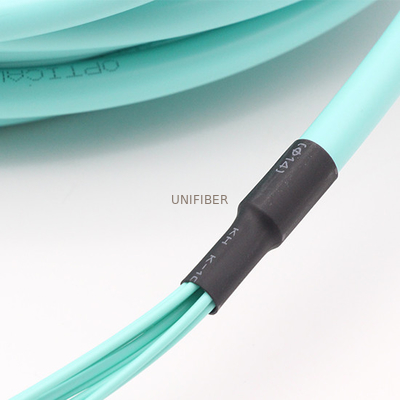

| Cable Type | Multi-fibers Breakout 2.0mm unit cable | Jacket Material | LSZH/PVC/OFNR/OFNP |
| Insertion loss | ≤0.3dB | Insertion loss | ≤0.12dB(IEC Grade B) |
| Return loss | MM P ≥ 35dB(min) | Interchangeability &Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
