Product Details:
Payment & Shipping Terms:
|
| Product: | 100G QSFP28 OM3 AOC Cable | Data Rate: | 100G |
|---|---|---|---|
| Wavelength: | 850nm | Fiber: | Multimode OM3 |
| Power Supply: | 3.3V | Length: | 1~70m |
| Application: | Data Center | ||
| High Light: | OM3 100G QSFP28 Active Optical Cable,Multimode 100G QSFP28 Active Optical Cable,Low Power 100G QSFP28 AOC Cable |
||

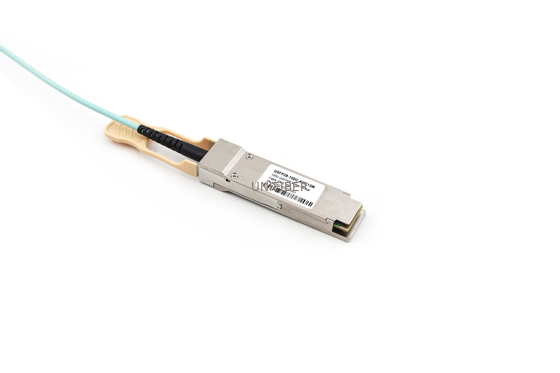

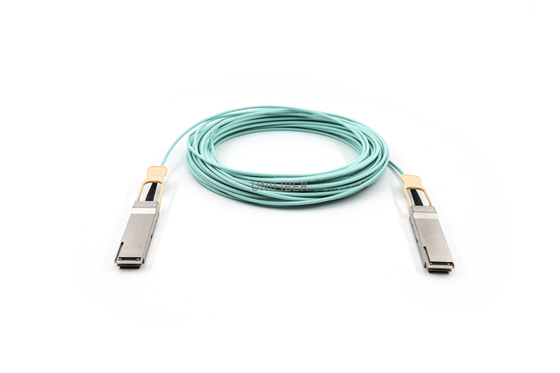

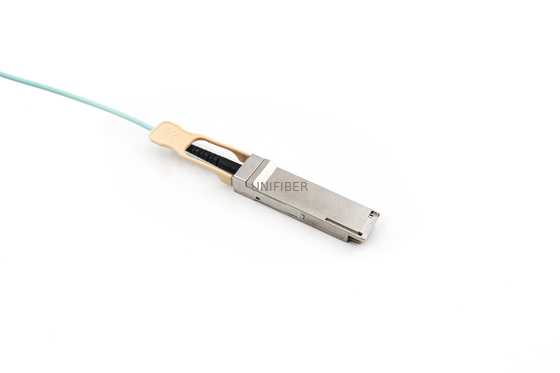

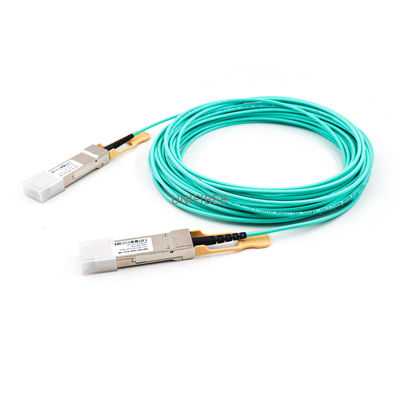

100G QSFP28 active optical cable is a high-performance, low-power, long-distance interconnection solution that supports100G.
100G QSFP is a combination of 4 full-duplex channels, each of which can transmit data at a rate of up to 25.78125GB/s, providing an aggregation rate of 100GB/s.
Features
Support 100GBASE-SR4/EDR application
Compliant to QSFP28 Electrical MSA SFF-8636
Rate of up to 25.78125Gbps per channel
+3.3V single power supply
Low power consumption
Operating case temp Commercial: 0° to +70 °
RoHS 6 compliant
Applications :
100GBASE-SR4 at 25.78125Gbps per lane
InfiniBand QDR, EDR
Servers, switches, storage and host card adap
| Form Factor | Rate(bps) | Wave(nm) | Length | TX/RX | Connector | Temp(℃) | Optical Mode |
| QSFP28 | 100G | 850 | 1m | VCSEL/PIN | MTP/MPO | 0~70 | OM3 |
| QSFP28 | 100G | 850 | 2m | VCSEL/PIN | MTP/MPO | 0~70 | OM3 |
| QSFP28 | 100G | 850 | 3m | VCSEL/PIN | MTP/MPO | 0~70 | OM3 |
| QSFP28 | 100G | 850 | 4m | VCSEL/PIN | MTP/MPO | 0~70 | OM3 |
| QSFP28 | 100G | 850 | 5m | VCSEL/PIN | MTP/MPO | 0~70 | OM3 |
| QSFP28 | 100G | 850 | 6m | VCSEL/PIN | MTP/MPO | 0~70 | OM3 |
| QSFP28 | 100G | 850 | 7m | VCSEL/PIN | MTP/MPO | 0~70 | OM3 |
| QSFP28 | 100G | 850 | 8m | VCSEL/PIN | MTP/MPO | 0~70 | OM3 |
| QSFP28 | 100G | 850 | 9m | VCSEL/PIN | MTP/MPO | 0~70 | OM3 |
| QSFP28 | 100G | 850 | 10m | VCSEL/PIN | MTP/MPO | 0~70 | OM3 |
| QSFP28 | 100G | 850 | 30m | VCSEL/PIN | MTP/MPO | 0~70 | OM3 |
| QSFP28 | 100G | 850 | 40m | VCSEL/PIN | MTP/MPO | 0~70 | OM3 |
| QSFP28 | 100G | 850 | 60m | VCSEL/PIN | MTP/MPO | 0~70 | OM3 |
