Product Details:
Payment & Shipping Terms:
|
| Product: | 120 Core Mechanical Dome Fiber Optic Splice Closure 1x32 PLC Splitter | Capacity: | 24/48/72/96/120 Core |
|---|---|---|---|
| Splitter: | 1:32 Module Type | Material: | PP+GF |
| Sealing Type: | Mechanical Seal (Heat Shrink Seal Interchangeable) | Waterproof Grade: | IP68 |
| Dimensions (H*D: | 480 × Φ260 | Installation: | Wall Mounting/ Pole Mounting/ Manhole |
| High Light: | Mechanical Dome Fiber Optic Splice Closure,IP68 Dome Fiber Optic Splice Closure,120 Core Fiber Optic Dome Closure |
||

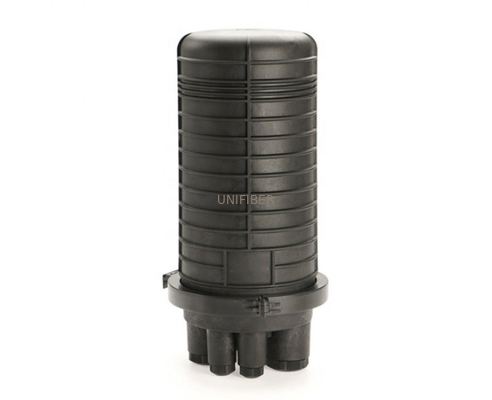

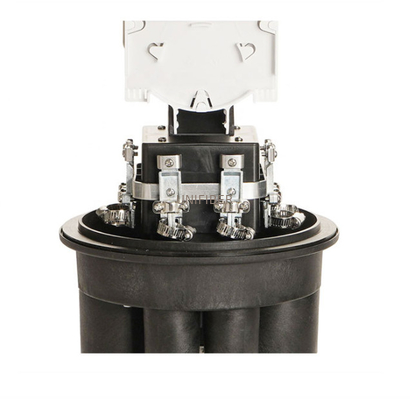

GPJ09-5807 dome closure is a patented fiber closure specially designed for FTTH solutions, featuring excellent mechanical seal. The sealing type is mechanical (press-seal for the oval port, and shaft-seal for round ports). Heat-shrink seal is interchangeable with it. This splice enclosure meets the sealing requirements of Ф8-22 mm cables and multiple types of drop cables. It is applicable to 1 pc of 1:32 module type PLC splitter and 36 pcs of SC adapters.
Features

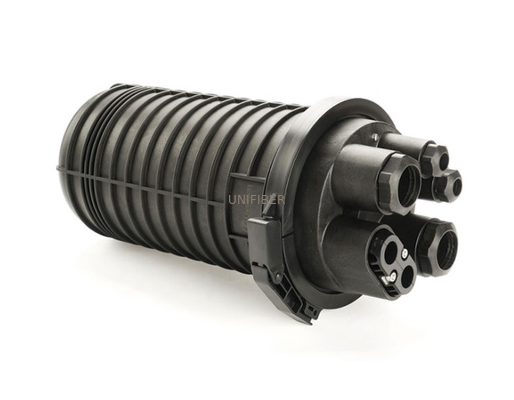

● Ports: 1 uncut (Ф8-22 mm), 4 branch (Ф6-14 mm, Ф8-18 mm)
● Capacity: 120 (single)
● Seal: Mechanical
● Waterproof: IP68
● Material: PP+GF
● Applications: wall mounting, pole mounting, manhole
|
Model No.
|
GPJ09-5807
|
|||
|
Style
|
Dome/ Vertical
|
|||
|
Dimensions (H*D)
|
480 × Φ260
|
|||
|
Material
|
PP+GF
|
|||
|
Sealing Type
|
Mechanical Seal (Heat Shrink Seal Interchangeable)
|
|||
|
Protection Grade
|
IP68
|
|||
|
Cable Ports
|
Uncut
|
Oval
|
1
|
Φ8 – Φ22 mm
|
|
Branch
|
Round
|
2
|
Φ6 – Φ14 mm
|
|
|
2
|
Φ8 – Φ18 mm
|
|||
|
Fiber Splice Capacity
|
Single
|
120
|
||
|
Tray Capacity
|
24
|
|||
|
Tray Count
|
5
|
|||
|
Adapter
|
SC
|
36 PCS
|
||
|
PLC Splitter
|
1:32 Module Type
|
1 PC
|
||
|
Weight
|
5.0 – 5.5 kg
|
|||
|
Application
|
Wall Mounting/ Pole Mounting/ Manhole
|
|||
|
Packing Type
|
Inner Carton
|
480×275×245 mm (1 PCS)
|
||
|
Outer Carton
|
570×500×540 mm (4 PCS)
|
|||
