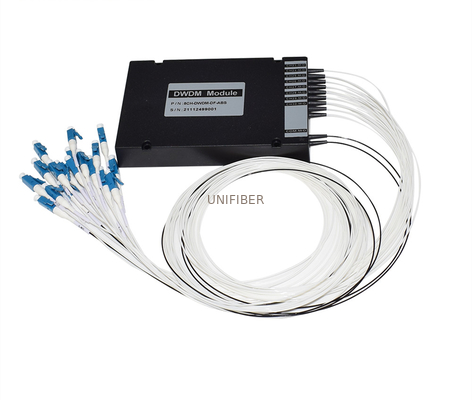

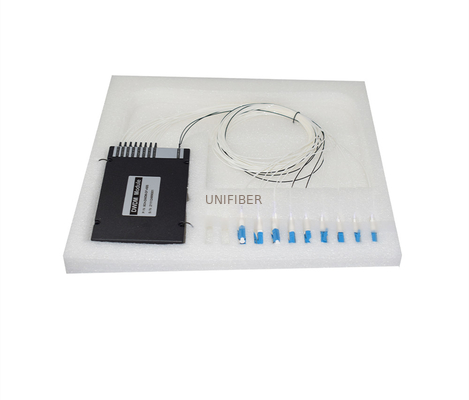

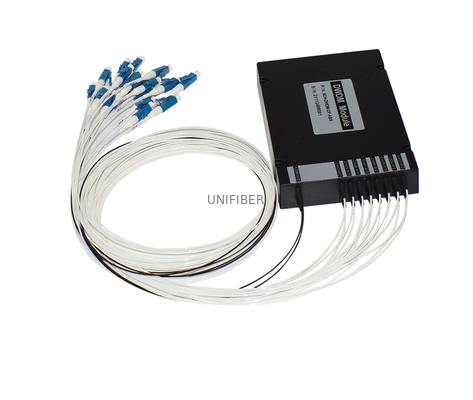

8CH 100Ghz DWDM MUX Demux CH23-CH30 Channels Dual Fiber Duplex LC UPC ABS Box

8CH 100Ghz DWDM MUX Demux CH23-CH30 Channels Dual Fiber Duplex LC UPC ABS Box
8CH 100Ghz DWDM MUX Demux CH23-CH30 Channels Dual Fiber Duplex LC UPC ABS Box 8CH 100Ghz DWDM MUX Demux CH23-CH30 Channels Dual Fiber Duplex LC UPC ABS Box 8CH 100Ghz DWDM MUX Demux CH23-CH30 Channels Dual Fiber Duplex LC UPC ABS Box

Large Image :  8CH 100Ghz DWDM MUX Demux CH23-CH30 Channels Dual Fiber Duplex LC UPC ABS Box

Product Details:
Place of Origin: China
Brand Name: Unifiber or OEM
Certification: ROHS
Model Number: 8CH 100Ghz DWDM MUX Demux
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 3~5 days
Payment Terms: L/C, T/T
Supply Ability: 500pcs/day
Detailed Product Description
Product: 8CH 100Ghz DWDM MUX Demux Channel Space: 100Ghz
Channels: 8 Configuration: MUX Demux
Package: ABS Box Connector: Duplex LC/UPC
High Light:

100Ghz DWDM MUX Demux

,

8CH DWDM MUX Demux

,

Duplex LC UPC DWDM MUX Demux

8CH 100Ghz DWDM MUX Demux CH23~CH30 channels Dual Fiber Duplex LC UPC ABS Box

Unifiber DWDM (Dense Wavelength Division Multiplexer) Mux/Demux Module offers high stable and reliable bandwidth in a cost-effective and small package. DWDM Mux/Demux ITU Wavelength provides the ability to consolidate customers' services over a single connection, by voice, data, or Internet. Use fiber wavelength is unrestricted, allowing for increased control and scalability.

DWDM MUX DEMUX Geneal Features

  • The DWDM with both a multiplexer and demultiplexer in unit

  • Easy to install, requires no configuration

  • Environmentally friendly product, completely passive, no power and no cooling required for operation!

  • Standalone, no other equipment required

  • To be used in 2 fiber strand and simplex strand

  • Can be connected to any fiber type

  • Low insertion loss - high isolation

  • Disassembles easily for cleaning

  • Fully Universal, bidirectional operation on any port

  • Fully transparent at all data rates and protocols

  • High reliability

  • Telcordia/Bellcore GR-1209 and GR-1221 qualified

  • Accepts any data rate and any protocol on any port up to 10 Gbps, also 40 Gbps (DPSK, DQPSK) and 100 Gbps (DP-QPSK)

  • Optional 1310nm window can be seamlessly integrated



Applications:
Channel Add/Drop
DWDM Network
Wavelength Routing
Fiber Optical Amplifier
CATV System



Compliance:
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
ITU-T G.694.1
RoHS

4. Performance Specifications



1xN DWDM Mux/Demux Module



Parameters
Channel Space (GHz) 100 200
Channel Number 1*4 1*8 1*16 1*4 1*8 1*16
Center Wavelength (nm) ITU Grid
Center Wavelength Accuracy (nm) ± 0.05 ± 0.1
Channel Passband (@-0.5dB) (nm) 0.22 0.5
Fiber Type SMF-28e with 900um loose tube or customer specified
IL (dB) 1.4 2.5 3.8 1.7 2.9 3.1
Passband Ripple (dB) 0.35 0.4 0.5 0.35 0.4 0.5
Isolation (dB) Adjacent Channel 25 28
Non-Adjacent Channel 40
PDL (dB) 0.2
PMD (ps) 0.1
RL (dB) 45
Directivity (dB) 50
Maximum Optical Power (mw) 500
Operating Temperature (°C) -20~70
Storage Temperature (°C) -40~85
BOX Package (mm) 100*80*10 or 140*115*18
LGX Package 1U,2U
19'' Rack mount Package 1U



Order Information:

UNF



Channel Spacing



Channel Number



Configuration



1st Channel



Fiber Type



Fiber Length

Connector



UNF

1=100GHz

2=200GHZ



4=4-Channel

8=8-Channel

16=16-Channel

32=32-Channel



M=Mux

D=Demux



21=1560.61nm

22=1559.79nm

23=1558.98nm…



1=Bare fiber

2=900um Jacket

1=1 Meter

2=2 Meter



0=None

1=FC/APC

2=FC/PC

3=SC/APC

4=SC/PC

5=ST

6=LC



8CH 100Ghz DWDM MUX Demux CH23-CH30 Channels Dual Fiber Duplex LC UPC ABS Box 0
