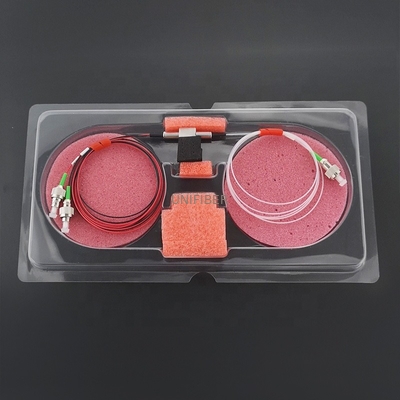

Packaging Details: Blister case
Delivery Time: 3~5 days
Payment Terms: L/C, T/T
Supply Ability: 500pcs/day
Detailed Product Description

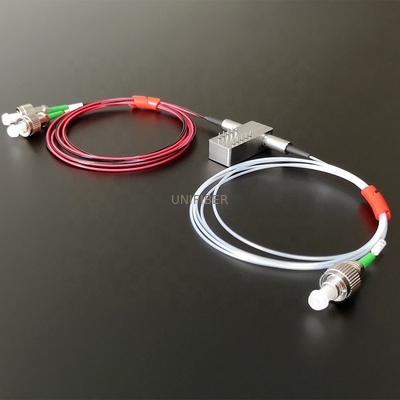

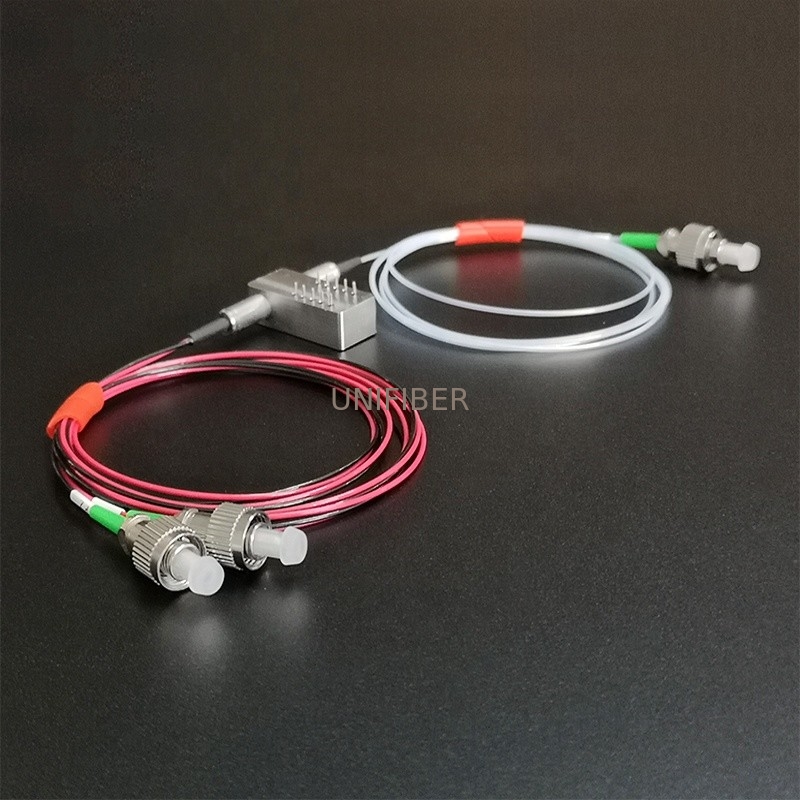

Product: 1x1 1x2 2x2B Non-latching Mechanical Fiber Optical Switch 5V/3V FC/APC Wavelength: 850/1310/1490/1550/1625/1650nm
Control Model: Latching/Non-latching Loose Tube: 0.9mm/2.0mm/3.0mm
Voltage: 3V/5V
High Light:

2x2B Fiber Optical Switch

,

FC APC Fiber Optical Switch

,

Non Latching Fiber Optic Switch

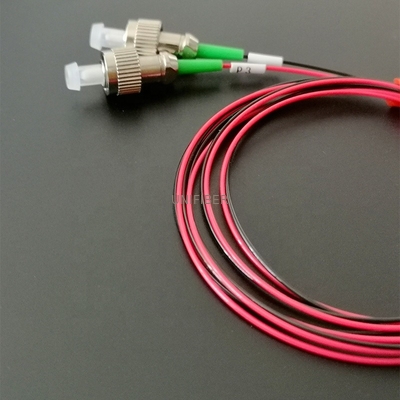

1x1 1x2 2x2B Non-latching Mechanical Fiber Optical Switch 5V/3V FC/APC

1x2T optical switch (OSW) features low insertion loss, low driving power, small size, and high switching speed. The switch is designed for use in optical fiber communication networks and measurement instruments. The switch consists of two ports that selectively transmits redirects, or blocks optical power in a fiber optic transmission line. The optical switch must be actuated to select or change between two states. 1X1/1x2T optical switch reverts to a default state upon loss of driving power or control signal.



Features
1.Unmatched Low Cost
2.Low Insertion Loss
3.High Channel Isolation
4.Highly Stable and Reliable
5.Epoxy-Free Optical Path


Applications
1.The light signal top/bottom road
2.System monitoring
3.Instrument equipment
4.Light signal routing



Parameter Values
Wavelength Range nm 850 1260~1650
Operating Wavelength nm 850 1310/1490/1550/1625/1650
Insertion Loss dB Typ:0.8 Max:1.2 Typ:0.5 Max:0.8
Return Loss dB MM≥30 SM≥50
Crosstalk dB MM≥35 SM≥55
PDL dB ≤0.05
WDL dB ≤0.25
TDL dB ≤0.25
Repeatability dB ≤±0.02
Power Supply V 3.0 or 5.0
Lifetime Times ≥107
Switch Time ms ≤8
Transmission Power mW ≤500
Operating Temperature -20~+70
Storage Temperature -40~+85

Above specification are for device without connector.



Type Pin Electric Drive Status Sensor
1×2 channel 1 5 6 10 2-3 3-4 7-8 8-9
Latching P1-P2 V+ GND -- -- Open Close Close Open
P1-P3 -- -- GND V+ Close Open Open Close
Non-latching P1-P2 V+ -- -- GND Open Close Close Open
P1-P3 -- -- -- -- Close Open Open Close


Optical Route

Specifications Voltage Current Resistance
5V latching 4.5~5.5 36~44mA 125Ω
5V non-latching 4.5~5.5 26~32mA 175Ω
3V latching 2.7~3.3 54~66mA 50Ω
3V non-latching 2.7~3.3 39~47mA 70Ω



Ordering Information

Product Wavelength Voltage Type Control Model Fiber Type Fiber Diameter Fiber Length Connector
1x2 Mechanical Optical Switch 85=850nm
13=1310nm
14=1490nm
15=1550nm
62=1625nm
65=1650nm
13/15=1310/1550nm
X=Others
3=3V
5=5V
L=Latching
N=Non-latching
5=50/125
6=62.5/125
9=9/125
X=Others
1=Bare Fiber
2=900umLoose Tube
3=2.0mm Cable
4=3.0mm Cable
1=1m
2=1.5m
C=Customer Request
0=None
1=FC/PC
2=FC/APC
3=SC/PC
4=SC/APC
5=ST/PC
6=ST/APC
7=LC/PC
8=LC/APC
X=Oth
