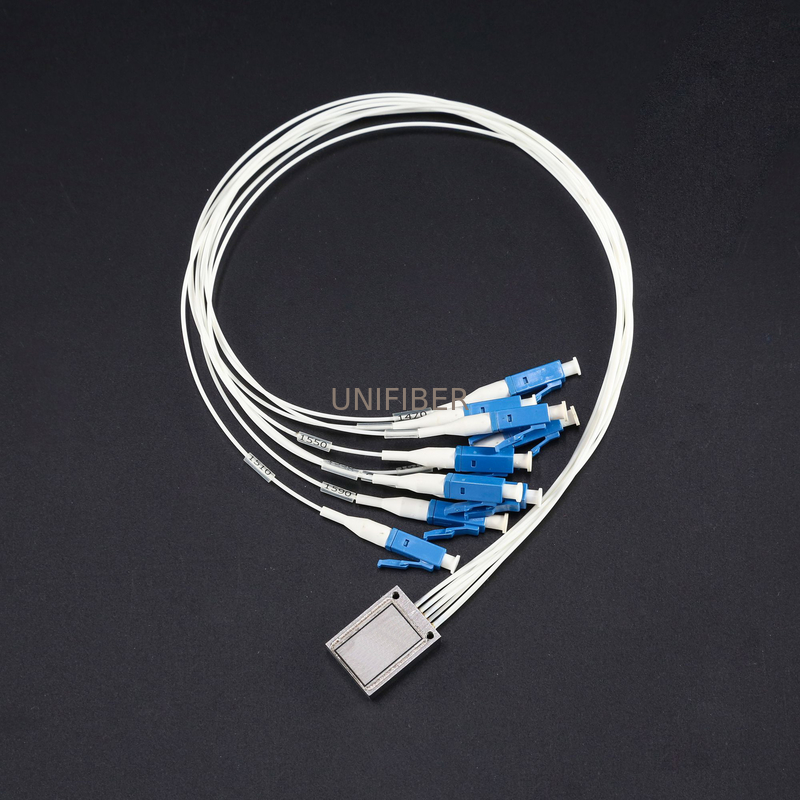

1270-1610nm 1.6dB CWDM Mux Demux Module For 5G Fronthaul System

1270-1610nm 1.6dB CWDM Mux Demux Module For 5G Fronthaul System
1270-1610nm 1.6dB CWDM Mux Demux Module For 5G Fronthaul System 1270-1610nm 1.6dB CWDM Mux Demux Module For 5G Fronthaul System 1270-1610nm 1.6dB CWDM Mux Demux Module For 5G Fronthaul System 1270-1610nm 1.6dB CWDM Mux Demux Module For 5G Fronthaul System

Large Image :  1270-1610nm 1.6dB CWDM Mux Demux Module For 5G Fronthaul System

Product Details:
Place of Origin: China
Brand Name: Unifiber or OEM
Certification: ROHS
Model Number: 8 channels compact CWDM mux demux module
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 3~5 days
Payment Terms: L/C, T/T
Supply Ability: 500pcs/day
Detailed Product Description
Product: 8 Channels Compact CWDM Mux Demux Module No Of Channels: 8 Channels
Wavelength: 1270-1610nm Passband: CW±6.5nm
Directivity: ≥ 50dB PDL: ≤0.30 DB
Dimension(HxWxD): 6.5x15.5x21 Mm Application: 5G Fronthaul WDM System PON Networks CATV Links
High Light:

1270nm CWDM Mux Demux

,

1.6dB CWDM Mux Demux

,

5G Fronthaul Wavelength Division Multiplexer

8 CH UC-CWDM is one model of new generation CWDM mux demux serie devices with 21x15.5x6.5mm footprint and 1.6dB insert loss.
Based on TFF and Free-space technology, taking patent advantage of optical path Zig-Zag design of multi-layers and all glass structure, Unifiber's UC-CWDM devices are of ultra-small size, extreme low insert loss, high reliability and excellent performance in comparing with traditional Three-port cascaded CWDM modules, they’re truly idea WDM gadgets which totally meet demand of new generation communication trend: smaller footprint, higher performance and energy efficient.



Free-space optical path Zig-Zag design VS Three port fiber routing:



8channels 1270-1610nm 1.6 dB IL ultra compact CWDM mux demux device 8channels 1270-1610nm 1.6 dB IL ultra compact CWDM mux demux device

Traditional Three-port WDM: Fiber routing inside  Free-space WDM: Optical path management inside





Features

Extreme small footprint and fiber in and out on the same side, easily to manage;

Extreme low insertion loss, to improve quality and to extend transmission distance;

Excellent thermal stability to work at wide operating temperature range;

Each channel can be adjusted individually, to get high wavelength accuracy;

Extremely compressed optical path, avoiding dispersion problems caused by optical path compensation between channels, excellent channel-to-channel uniformity;

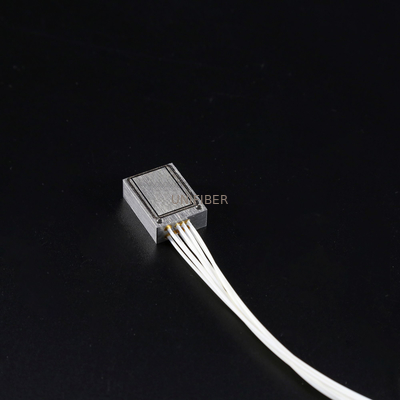

Stainless steel house, laser welding package, metal tube to protect fiber, suitable for harsh environment



Application

Unifiber' UC-CWDM Mux Demux is usually used for extending maximum distance of CWDM links, and flexible mix of 1G/10G/25G/40G/100G/200G Ethernet, SAN, OTN, SDH/SONET and native video services. Because of its small footprint, UC -CWDM is also used to be integrated inside CWDM transceiver to save space for laser and PD devices.



Specifications:

Parameter value
Center wavelength 1271nm-1610nm
Channel Spacing 20nm
Channel Passband ±6.5nm
Insertion Loss ≤ 1.6dB
Passband Ripple ≤ 0.5dB
Return Loss ≥ 45dB
Directivity ≥ 50dB
Polarization Dependent Loss ≤ 0.3dB
Adjacent Isolation ≥ 30dB
Non-adjacent Isolation ≥ 40dB

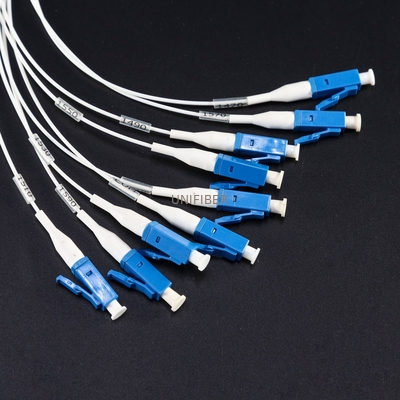

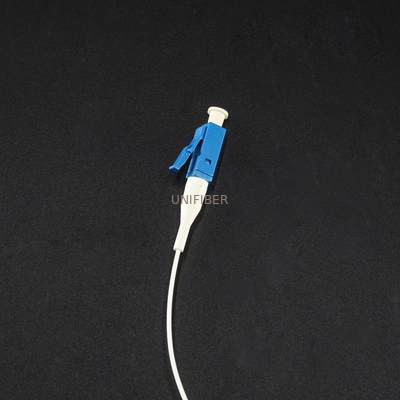

Pigtail Type 0.9mm white loose tube
Power Handling ≤ 500mW
Operating Temperature -40 to 85°C (-40 to 185°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Dimensions (HxWxD) 21x145.5x6.5mm

















































1270-1610nm 1.6dB CWDM Mux Demux Module For 5G Fronthaul System 2
