Product: | 1x2 1310/1550nm Polarization Maintaining Fiber Coupler | Configuration: | 1x2 2x2 |
---|---|---|---|
Wavelength: | 780nm 840nm 980nm 1064nm 1310nm 1480nm 1550nm | Fiber Type: | Panda Fiber |
Coupling Ratio (%): | 1/99~50/50 | Application: | Fiber Sensor |
High Light: | 1x2 PM Fiber Coupler,EDFA PM Fiber Coupler,1310nm Polarization Maintaining Fiber Coupler |

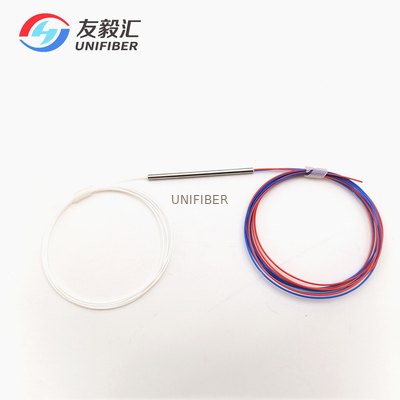

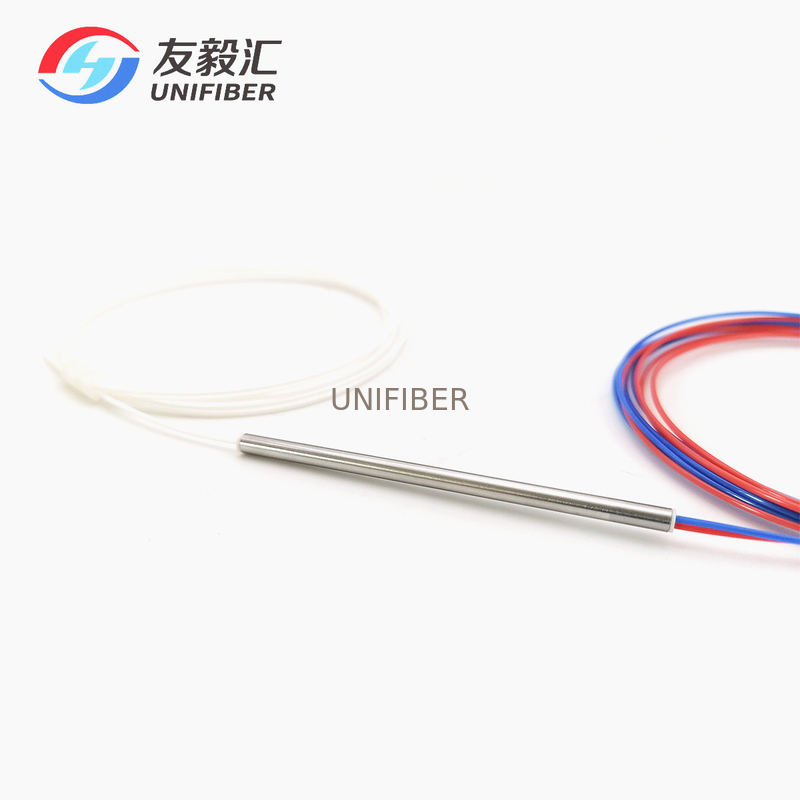

FBT Coupler is also know as FBT Splitter, which is built to split the optical power or wavelength through Fused Biconic Taper (FBT) technique. Polarization Maintaining Coupler is made Panda PM fiber.
Features
Low Insertion LossHigh Extinction Ratio
High Isolation
High stability and reliability
Applications
Application
EDFA
Fiber Optical Instrument
Power Monitoring
Fiber Sensor
Item | Unit | Parameter | ||||||
Center Wavelength | nm | 780, 840 | 980, 1064 | 1310, 1480, 1550 | ||||
Bandwidth | nm | ±15, ±40 | ||||||
Max. Insertion Loss @ Central wavelength
|
CR | dB | P | A | P | A | P | A |
50/50 | ≤3.8 | ≤4.0 | ≤3.6 | ≤3.8 | ≤3.4 | ≤3.6 | ||
30/70 | ≤6.3/2.2 | ≤6.5/2.4 | ≤5.75/2.0 | ≤6.1/2.1 | ≤5.6/1.95 | ≤5.75/2.1 | ||
20/80 | ≤8.2/1.7 | ≤8.5/1.9 | ≤8.0/1.5 | ≤8.2/1.7 | ≤7.6/1.4 | ≤8.0/1.5 | ||
10/90 | ≤11.8/1.4 | ≤12.0/1.6 | ≤11.6/1.2 | ≤11.8/1.4 | ≤11/0.85 | ≤11.6/1.0 | ||
5/95 | ≤15/1.0 | ≤15.2/1.2 | ≤14.8/0.8 | ≤15/1.0 | ≤14.2/0.6 | ≤14.8/0.8 | ||
3/97 | ≤17.5/0.9 | ≤17.7/1.0 | ≤16.6/0.4 | ≤17.2/0.6 | ≤16.2/0.4 | ≤16.7/0.5 | ||
2/98 | ≤19.0/0.8 | ≤19.2/1.0 | ≤18.4/0.4 | ≤18.9/0.5 | ≤18.0/0.4 | ≤18.5/0.5 | ||
1/99 | ≤22.5/0.7 | ≤22.8/0.9 | ≤22/0.4 | ≤22.5/0.6 | ≤21.5/0.3 | ≤22/0.4 | ||
ER | CR>5% | dB | 20 | 18 | 20 | 18 | 20 | 18 |
5%≥CR>1% | 18 | 16 | 18 | 16 | 18 | 16 | ||
CR≤1% | Out of concern | |||||||
Package 1 (Ф×L) | mm | 3*54 | ||||||
Return Loss | dB | ≥50 | ||||||
Directivity | dB | ≥50 | ||||||
Fiber Type | Panda PM fiber | |||||||
Power Handling | mW | ≤500 | ||||||
Operating Environment Temperature | ℃ | -5-+70 | ||||||
Storage Temperature | ℃ | -40-+85 |
