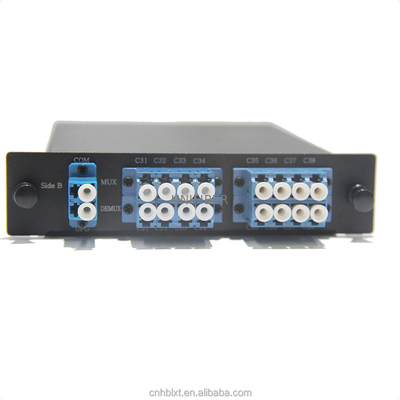

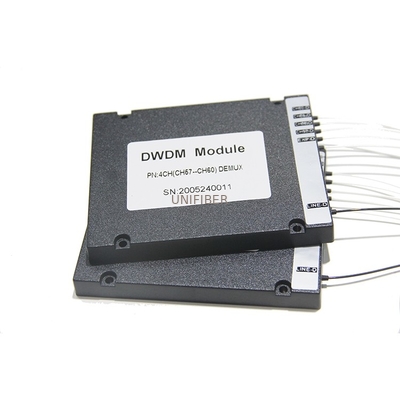

C Band 100GHz DWDM Mux Demux ABS Module LC / UPC 0.05nm Center Wavelength

Large Image : C Band 100GHz DWDM Mux Demux ABS Module LC / UPC 0.05nm Center Wavelength

Product Details:

Place of Origin:	China
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	100G DWDM Mux Demux ABS Module

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	Carton box
Delivery Time:	3~5 days
Payment Terms:	L/C, T/T
Supply Ability:	500pcs/day

Contact Now

Detailed Product Description

Product:	100G DWDM Mux Demux ABS Module	Channel Spacing:	100G(0.8nm)
Center Wavelength Accuracy::	± 0.05nm	Structure:	Mux Or Demux
Channel Wavelength:	ITU 100 GHz Grid	Package:	ABS Module
Input/Output Length:	0.5m, 1m Or Customized	Input/Output Connector:	FC, SC, LC Optional
High Light:	DWDM Mux Demux 100GHz , UPC DWDM Mux Demux , 0.05nm Wavelength Division Multiplexer

Features:

100GHz ITU Channel Spacing

Low insertion loss

Broadband transmission

High channel isolation

High stability and reliability

Epoxy-free optical path

Applications: 1. Channel Mux/Demux

DWDM system DWDM

Router

Fiber optical amplifier

CATV system

Parameters		4 Channel	8 Channel	16 Channel
Insettion Loss(dB)		≤1.5	≤2.5	≤3.5 (with skip filter) ≤4.5 (without skip filter)
ITU channel		C20,C21,C22,C23,C24.........................C58,C59,C60
Operating Wavelength (nm)		1520-1570
Min Channel Spacing(GHz)		100
Passband (@-0.5dB bandwidth)(nm)		±0.11
Isolation (dB)	Adjacent Channel	> 30
	Non-Adjacent Channel	> 40
Polarization Dependent Loss (dB)		≤0.10
Polarization Mode Dispersion (ps)		< 0.10
Return Loss (dB)		> 45
Directivity (dB)		> 50
Maximum Optical Power (mw)		500
Operating Temperature (℃)		-20 ~ +75
Storage Temperature (℃)		-40 ~ +85
Fiber Type		Corning SMF-28
Package Dimension (mm)		Pipe; ABS Module ; LGX Case ; 1U 19'' Rack Mount
