4 Channels Wavelength Division Multiplexer GPON 1300nm OTDR LGX Module

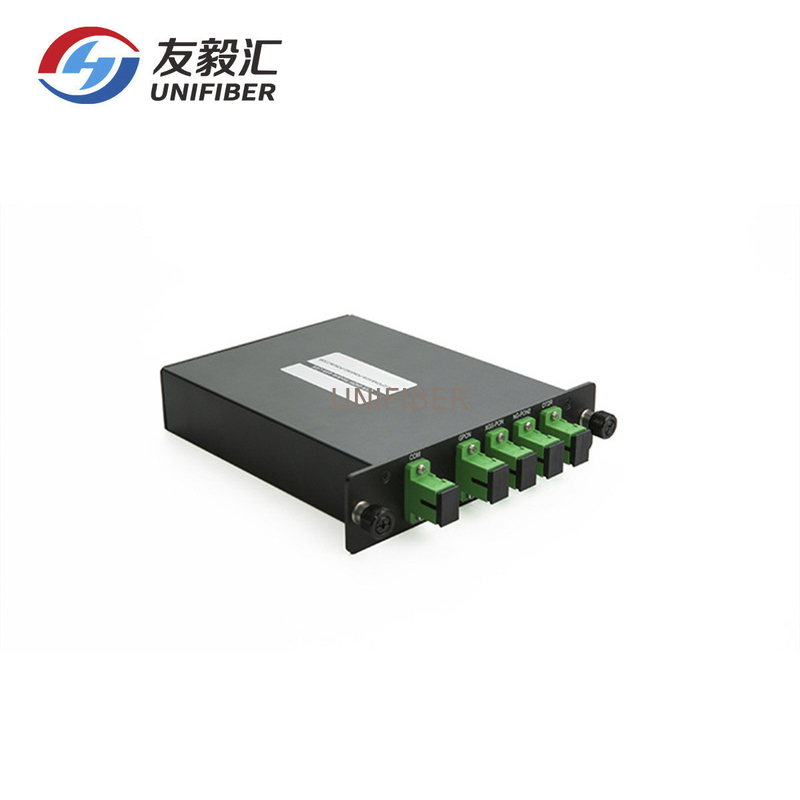

Large Image : 4 Channels Wavelength Division Multiplexer GPON 1300nm OTDR LGX Module

Product Details:

Place of Origin:	China
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	WDM PON Module

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	Carton box
Delivery Time:	3~5 days
Payment Terms:	L/C, T/T
Supply Ability:	500pcs/day

Contact Now

Detailed Product Description

Product:	4 Channels WDM PON GPON XGPON NGPON2 OTDR LGX Module	No Of Ports:	4
GPON Port Wavelength:	1300~1320&1480~1500	XGSPON Port Wavelength:	1260~1280&1575~1581
NGPON2 Port Wavelength:	1524~1544&1596~1625	Connector:	SC/APC
Package:	Metal LGX Mdule	Application:	CATV/FTTH
High Light:	4 Channels Wavelength Division Multiplexer , 1300nm Wavelength Division Multiplexer , GPON WDM LGX Module

WDM PON GPON XGPON NGPON2 OTDR LGX Module is used to combine GPON/XGSPON/NGPON2 upstream and downstream signals into 1 fiber, or split GPON/XGSPON/NGPON2 upstream and downstream signals from line fiber.

Application:

CWDM System
PON Networks
CATV Links

Features:

Low insertion loss
Low PDL
High channel isolation
Excellent environmental reliability

Parameter	Unit	Specification
Operating Wavelength	nm	1260~1650
Port number	PCS	4
GPON port wavelength	nm	1300~1320&1480~1500
XGSPON port wavelength	nm	1260~1280&1575~1581
NGPON2 port wavelength	nm	1524~1544&1596~1625
Insertion Loss(GPON to COM)	dB	≤1.0
Insertion Loss(XGSPON to COM)	dB	≤1.2
Insertion Loss(NGPON2 to COM)	dB	≤1.4
PDL	dB	≤0.20
Ripple over Pass Band	dB	≤0.3
Pass band Isolation(GPON to COM)	dB	≥30
Pass band Isolation(XGSPON to COM)	dB	≥30
Pass band Isolation(NGPON2 to COM)	dB	≥30
