Product Details:
Payment & Shipping Terms:
|
| Product: | 6 Ports Ftth Terminal Box Huawei Mini SC | No Of Ports: | 4/6/8/12 Ports |
|---|---|---|---|
| Connector: | Huawei Mini SC | Waterproof Grade: | IP67 |
| Splitters: | 1x4 Or 1x8 | Installation: | Wall-mounting, Aerial Installation Or Holding Pole Installation. |
| Application: | FTTH | ||
| High Light: | FTTH Waterproof Terminal Box,IP67 Waterproof Terminal Box,200N/Cm Fiber Optic Termination Box |
||

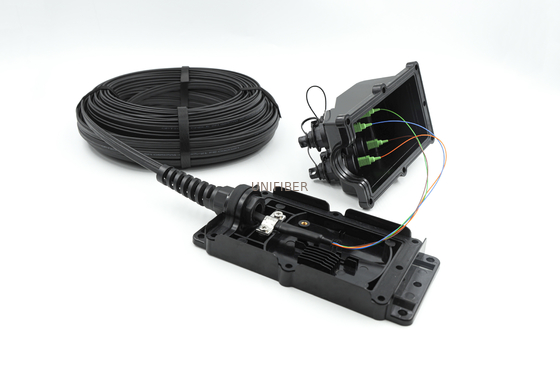

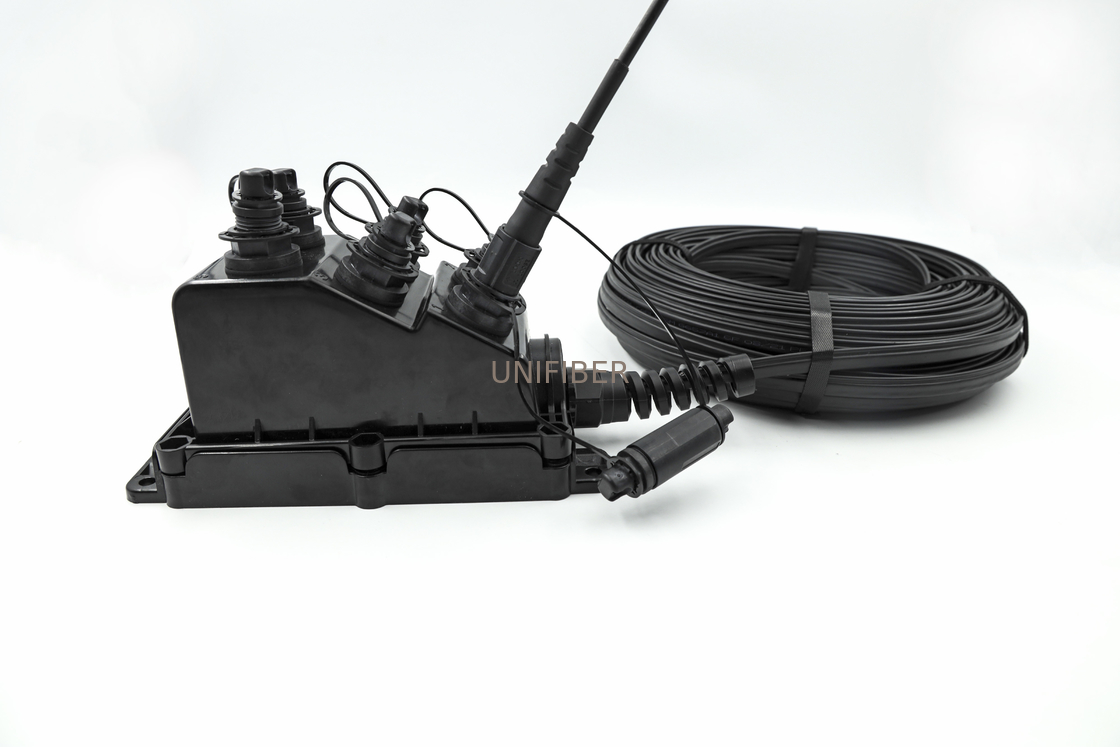

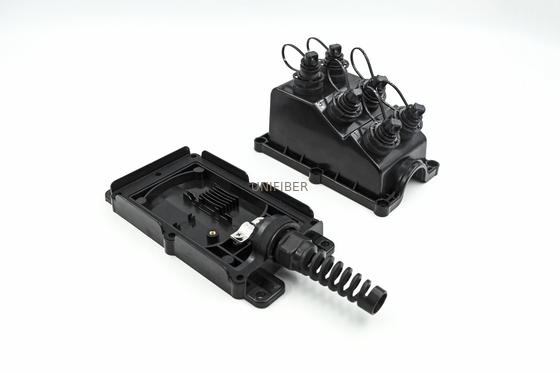

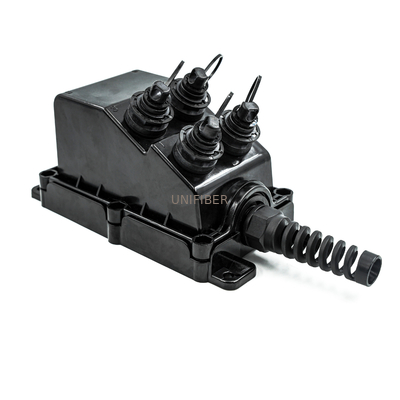

FTTX Enclosure is a new economic fiber distributed solution for outdoor use. Compare traditional products, FTTX Enclosure is easy to operate and has high compatibility.It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation. FTTX Enclosure not only used in FTTH field, but also used in FTTA or other harsh environment.
Product Features
1.Fiber optic splice box with utilize traditional field installation techniques for aerial, below ground and duct applications
2.100% optically tested to ensure quality performance assemblies at the factory
3.Available in single-mode and multimode styles to work with any common fiber type
4.Broad temperature range (-40 to+85°C) is ideal for indoor or outdoor applications
5.Drastically reduces field splicing with a predetermined loss at each waterproof tether access point
6.Provides moisture and dust protection for use in harsh industrial environments
Applications
1.Outdoor Fiber Optic Transmission
2.Optical System Access network
3.Storage area networking fiber channel
4.Data communication network, 5G tower
5.High density architectures
6.FTTA, FTTP, FTTX, WIMAX
| Items | Specifications |
| Dimensions LxWxH | 365x137x90mm(Without cover) 375x142x120mm(With cover) |
| Ingress protection | IP67 |
| Temperature range | -40 to + 80°C |
| Cable strength member | Armoured or Non-armoured |
| Cable type | Hybrid or non-hybrid |
| Round cable OD | 5.0mm to 14mm |
| Flat cable dimension | 4.6x8.9mm |
| Cable jacket material | LSZH, PEorTPU |
| Bending Radius | 20D |
| Cable crush resistance | 200N/cm long term |
| Fire protection rating | UL94-V0 |
| Number of PLC | 1 to 2pcs |
| Number of fusion protection sleeve | 1 to 24pcs |
