| Product: | 4/6/8/12 Channels Ultra Compact LAN-WDM | No Of Channels: | 4/6/8/12 |
|---|---|---|---|
| Starting Channel: | 1273/1295 | Configuration: | M—MUX; D---DEMUX |
| Connector: | LC/UPC | Application: | Optical Transceivers |
| High Light: | C Band WDM MUX DEMUX,LAN WDM MUX DEMUX,0.9dB Wavelength Division Multiplexer |
||
C Band Ultra Compact LAN-WDM MUX DEMUX Module

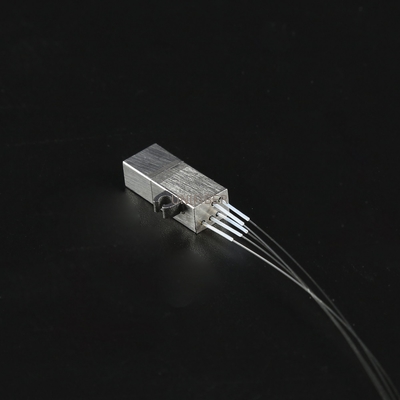

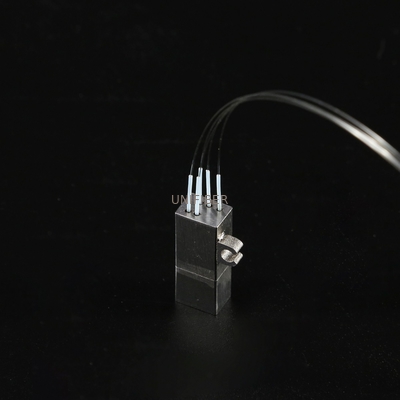

This 4 CH C BAND UC-LAN-WDM is one model of new generation LAN-WDM mux demux serie devices with extremely compact 20x8x6mm footprint and 0.9 dB insert loss. Based on TFF and Free-space technology, taking patent advantage of optical path Zig-Zag design of multi-layers and all glass structure, Unifiber’ UC-LWDM devices are of ultra-small size, extreme low insert loss, high reliability and excellent performance in comparing with traditional Three-port cascaded LWDM modules, they’re truly idea WDM gadgets which totally meet demand of new generation communication trend: smaller footprint, higher performance and energy efficient.
Features
Ultra Compact
Low insertion loss
Excellent thermal stability
RoHS compliant
Application
Integrated into CFP and CFP2 transceivers to combine 4 ch / 6ch / 8ch (Mux) or separate 4 ch / 6ch / 8ch (DeMux)
Local Area Network.
Specification
| Parameters | specifications | Unit | |||
| 通道数/ Channel number | 4 | 6 | 8 | 12 | CH |
| 波长范围 / Wavelength range | 1260~1360 | nm | |||
| 带宽/ Pass band | CW ±1.1 | nm | |||
| 插入损耗/ Channel insertion loss | < 1.2 | < 1.5 | < 1.8 | < 2.0 | dB |
| 纹波/ Ripple | ≤ 0.5 | ≤ 0.5 | ≤ 0.5 | ≤ 0.5 | dB |
| 相邻通道隔离度/ Adjacent channel isolation | > 30 | > 30 | > 30 | > 30 | dB |
| 非相邻通道隔离度/ Non-adjacent channel isolation | > 40 | > 40 | > 40 | > 40 | dB |
| 偏振损耗/ Polarization dependent loss | < 0.5 | < 0.5 | < 0.5 | < 0.5 | dB |
| 回波损耗/ Return loss | > 45 | > 45 | > 45 | > 45 | dB |

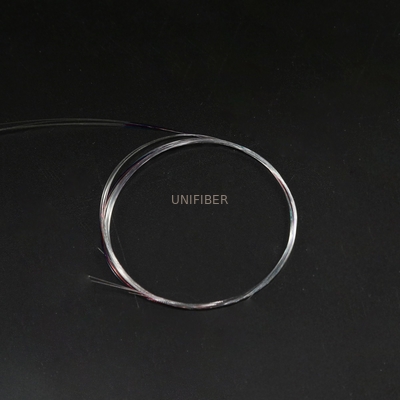

| 光纤规格/ Fiber type | 250um Corning ClearCurve Fiber | ||||
| 工作温度/ Operating temperature | -40 ~ +85 | °C | |||
| 存储温度/ Storage temperature | -40 ~ +85 | °C | |||
| 尺寸/ Dimension | 20x12x6.5 | 23x12.4x6.5 | 25x19.6x6.5 | mm | |
Ordering information:
LAN-WDM-A-B-C-D
| A | Numbers of channel: 4ch6ch8ch |
| B | Starting channel:12731295 |
| C | M—MUX; D---DEMUX |
| D | Connector |
