Product Details:
Payment & Shipping Terms:
|

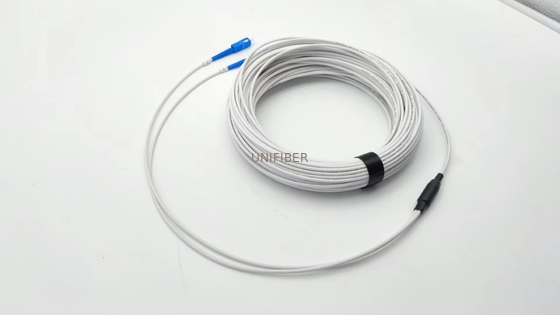

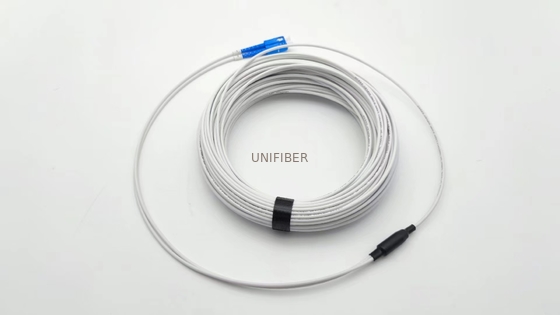

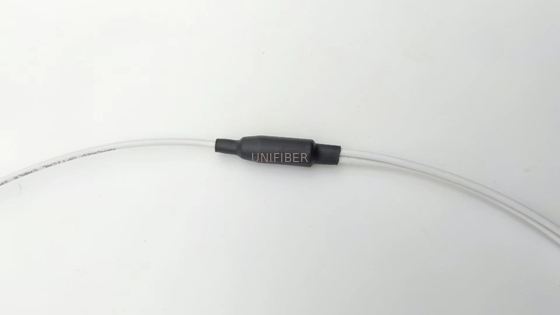

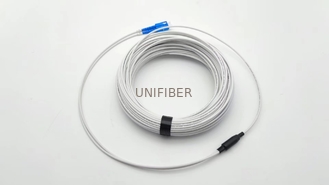

| Product: | 2 Core SC/UPC FTTH Pre-connectorized Drop Cable Pigtail G657A2 LSZH White | Fiber Counts: | 2 |
|---|---|---|---|
| Fiber Type: | G657A2 | Cable Jacket: | LSZH White |
| Diameter: | 3.0mm | Length: | 10m 20m 30m Or Customized |
| Application: | FTTH | ||
| High Light: | FTTH Drop Cable Pigtail,LSZH Jacket Drop Cable Pigtail,20m Fiber Optic Pigtail |
||
FTTH Drop cable pigtail is a kind of patch cord but assembly with ftth drop cable. This is last 100m cable in FTTH project. Used widely in Fact plate, terminal box, ONU tec.
Patch Cords are used to provide optical connection for fiber optic electronics. The use of the pigtail provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices. The pigtail can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths.
FTTH Drop cable pigtail can be used as a building backbone or horizontal distribution, and they are operating in an uncontrolled or harsh environment.
Features:
1.Low insertion loss and back reflection loss
2.Excellent mechanical endurance
3.Good in repeatability and exchange
4.Green Production, CE, RoHS Standard
Application:
1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
Parameter
| Item | SM(Single Mode) | MM(Multimode) | |||
| Fiber Cable Type | G652/G655/G657 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| Cable OD (mm) | 0.9/1.6/1.8/2.0/2.4/3.0 | ||||
| Endface Type | PC | UPC | APC | UPC | UPC |
| Typical Insertion Loss (dB) | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 |
| Return Loss (dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 | ||||
