4U 576 Ports High Density MPO Fiber Patch Panel With 48x12F MPO To LC Cassette Module

China Shenzhen Unifiber Technology Co.,Ltd certification
China Shenzhen Unifiber Technology Co.,Ltd certification
I'm Online Chat Now

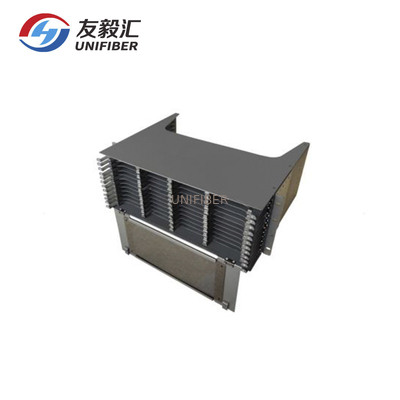

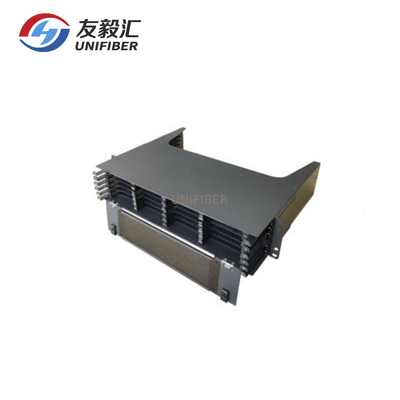

4U 576 Ports High Density MPO Fiber Patch Panel With 48x12F MPO To LC Cassette Module

4U 576 Ports High Density MPO Fiber Patch Panel With 48x12F MPO To LC Cassette Module
4U 576 Ports High Density MPO Fiber Patch Panel With 48x12F MPO To LC Cassette Module 4U 576 Ports High Density MPO Fiber Patch Panel With 48x12F MPO To LC Cassette Module

Large Image :  4U 576 Ports High Density MPO Fiber Patch Panel With 48x12F MPO To LC Cassette Module

Product Details:
Place of Origin: China
Brand Name: Unifiber or OEM
Certification: ROHS
Model Number: MP6-4U MP6-2U MP6-1U
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 2 wks
Payment Terms: L/C, T/T
Supply Ability: 50pcs/day
Detailed Product Description
Product: 4U 576 Ports High Density MPO Fiber Patch Panel Capacity: 576 Fibers
Material: Cold Rolled Steel Cassette Capacity: 8F Or 12F
Connector: LC Or SC No Of Cassettes: 48pcs
Dimension: 483mm×350mm×(1U,2U,4U) Application: Data Center
High Light:

576 Ports MPO Fiber Patch Panel

,

High Density MPO Fiber Patch Panel

,

4U mpo to lc patch panel

The Ultra-High-Density chassis (MP6) is a modular, standards-based, preterminated distribution platform designed to increase port density, improve connector access, and efficiently utilize valuable rack space in data centers. The MP6 Chassis system has a maximum capacity of twelve 12F modules or sixteen 8F modules installable (per 1U), that allows multiple fiber connections to be quickly and efficiently installed and maintained, while supporting regular moves, adds and changes. Integrated fiber management features are provided to secure trunk cables, separate patch cords and maintain safe bend radius during fiber routing.



Features:

High Efficient ·3 layer premium sliding rail ·High-efficient front & rear cable management design ·Well support standard LC connector  ·Modular design

4U 576 Ports High Density MPO Fiber Patch Panel With 48x12F MPO To LC Cassette Module 0

High Density ·1U up to 144 port LC connection ·2U up to 288 port LC connection ·4U up to 576 port LC connection

4U 576 Ports High Density MPO Fiber Patch Panel With 48x12F MPO To LC Cassette Module 1

High Flexibility ·MTP to 8LC/12LC Transition ·MT推广报告P/MPO-MTP/MPO conversion ·MTP/MPO/LC patching ·Pigtail splicing

4U 576 Ports High Density MPO Fiber Patch Panel With 48x12F MPO To LC Cassette Module 2



Specification:

Model
Capacity
Material
Modules
Color
MP6-1U/144F 144 Fiber cold rolled steel plate 8 or 12F module Black
MP6-2U/288F 288 Fiber cold rolled steel plate 8 or 12F module Black
MP6-4U/576F 576 Fiber cold rolled steel plate 8 or 12F module Black



4U 576 Ports High Density MPO Fiber Patch Panel With 48x12F MPO To LC Cassette Module 34U 576 Ports High Density MPO Fiber Patch Panel With 48x12F MPO To LC Cassette Module 4
