Product Details:
Payment & Shipping Terms:
|
Product: | 10G SFP+ 1550nm Er 40km | Wavelength: | 1550nm |
---|---|---|---|
Transmission Distance:: | 40km | Data Rate:: | 10Gb/s |
Interface:: | Dual LC Connector | DDM/DOM:: | Supported |
Optical Components: | EML Transmitter And PIN Receiver | Compatiable Brands: | Cisco,HP, Huawei, H3C, Alcatel, Juniper Or Others |
High Light: | 40km SFP Transceiver Module,Dual LC SFP Transceiver Module,10G Fiber Optic Transceiver |

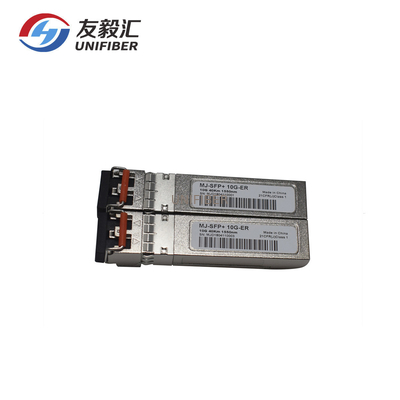

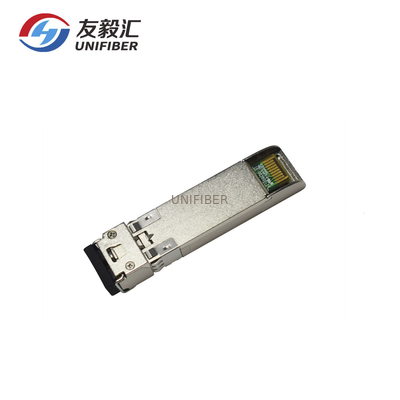

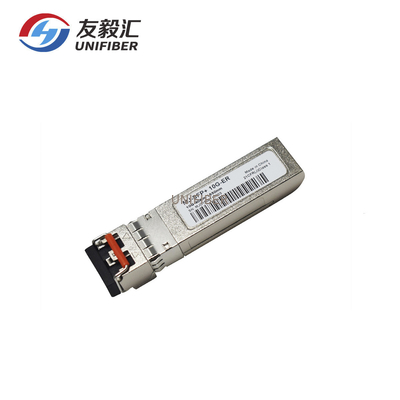

SFP+ ER 40KM fiber optic transceiver is designed for use in 10-Gigabit Ethernet links up to 40km over single mode fiber. The module consists of 1550 EML Laser, InGaAs PIN and Preamplifier in a high-integrated optical sub-assembly. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF¬8472. The module data link up to 40km in 9/125um single mode fiber.
Features:
Up to 11.1Gbps Data Links
Up to 40km transmission on SMF
EML transmitter and PIN receiver
Metal enclosure, for lower EMI
2-wire interface with integrated Digital Diagnostic monitoring
Hot-pluggable SFP+ footprint
Specifications compliant with SFF 8472
Compliant with SFP+ MSA with LC connector
Single 3.3V power supply
Case operating temperature range:0°C to 70°C
Power dissipation < 1.5 W
Application
10G Ethernet with FEC
10Gbps SONET/SDH ITU-T G.959.1 P1L1-2D2
10Gbps SONET/SDH ITU-T G.709
10G BASE-ZR/ZW
SFP footprint 80km 10G Fiber Channel
