Product Details:
Payment & Shipping Terms:
|
| Product: | Ftth 8 Port Fiber Optical Terminal Box | No Of Ports: | 8 |
|---|---|---|---|
| Body Material: | High Quality Material(PP+GF) | Capacity: | 24F |
| No.of Drop Cable: | 8 Pcs Drop Cable, Φ2*3mm Or Φ3-8mm Round Cable | Connector: | SC/APC |
| Splitter: | 1:8 Micro Splitter | Installation: | Pole/Wall/ Aerial Mounted |
| High Light: | 8 Port Fiber Terminal Box,PP GF Fiber Terminal Box,SC APC Fiber Optic Termination Box |
||

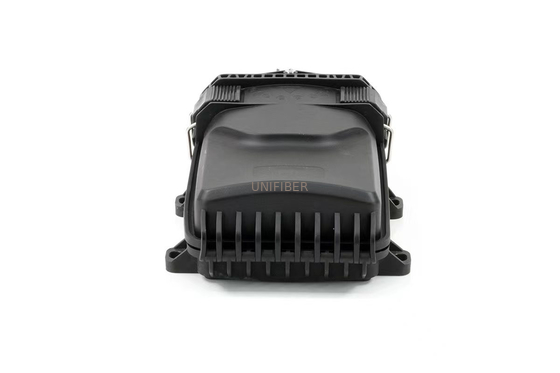

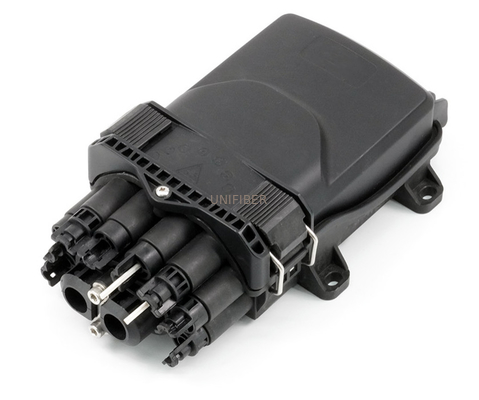

GPJ08-B is a 8F terminal box which used as a termination point for the feeder cable to connect with drop cable in FTTH networksystem. It is designed to seal without screws. The compact size and flip-over cover bring easy operation as well as multi-purposeapplication. It could be installed in aerial, wall, pole mounted mode.
* Compact design, light weight and easy installation.
* Made by high quality material(PP+GF) and meet 120 hours salt spray

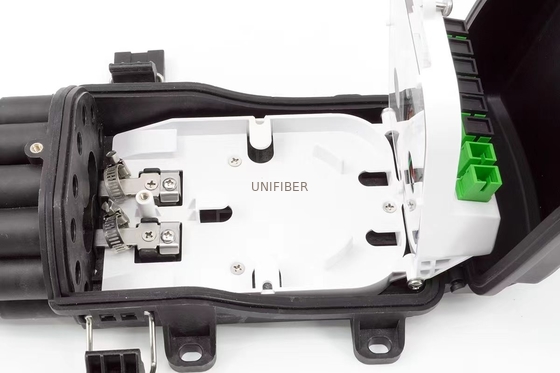

* Build in one splice tray (24F), max capacity up to 24F
* Applicable for 1pcs of uncutcable and 8pcs of drop

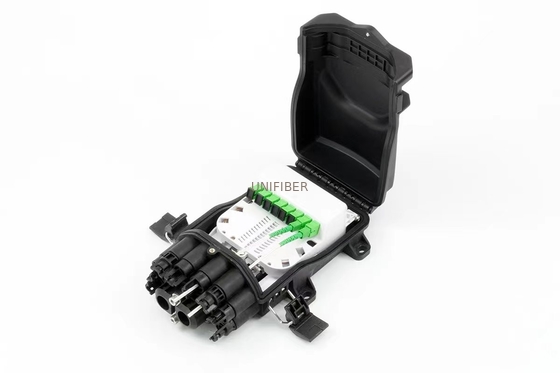

* Support micro splitter (1:8) and 8 pcs SC/APC adaptors
* Water proof level: IP68
* Installation method: Pole mounting, Wall mounting, Aerial mounting
