Product Details:
Payment & Shipping Terms:
|
Product: | 3M Fiber Optic Fast Connector | Model: | 8802-TLC/APC/FS/3 |
---|---|---|---|
Connector: | SC/APC | Color: | Green |
Insertion Loss: | <0.3dB | Application: | FTTH |
High Light: | Field Assembly FTTH Fast Connector,SC APC FTTH Fast Connector,Green Color SC APC Fast Connector |
3M NPFG 8802 TLC connector using mechanical connection technique, can rapidly in field 3mm and FRP into 8 word pigtail indoor cable (2mm*3mm) terminal in the standard SC typeconnector. The TLC connector has the advantages of simple operation, good tensileproperties, and can be repeatedly opened, without replacing any parts. Fast Connector is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.
Applications
Used to open the FTTH fiber terminal end.
In the box, cabinet, such as wiring into the box.
Off the back of the accidents such as fiber, maintenance.
The construction of the fiber end user access and maintenance.
Optical fiber access of mobile base station.
Features
Unique bell-shaped boot maintains the mini fiber bend radius
Precision mechanical alignment insures low insertion loss
Pre-installed, on-site assembly without end face grinding and consideration
Easy and fast installation, 30 seconds to learn install, 90 seconds to operate in the field
No need of polishing or adhesive, ceramic ferrule with embedded fiber stub is pre-polished
Fiber aligned in v-groove through the ceramic ferrule
Low-volatile reliable matching liquid preserved by side cover
Specification
Model No
|
8802-TLC/APC/FS/3
|
Connector Type
|
UPC/APC
|
Length
|
55mm
|
Applicable for
|
Drop cable.Indoor cable
|
Fiber mode
|
Single mode or Multi mode
|
Operation time
|
About 50s(no fiber cut)
|
Insertion Loss
|
≤0.2dB
|
Insertion Loss Typical value
|
0.2dB
|
Return Loss
|
≥50dB UPC ≥55dB APC
|
Fastening strength of naked fiber
|
≥5N
|
Tensile strength
|
≥50N
|
Reusable
|
≥10 times
|
Operating Temperature
|
-40~+85℃
|

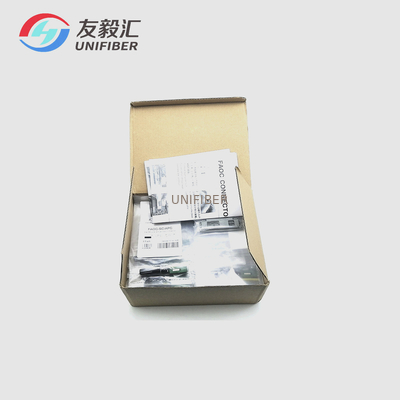

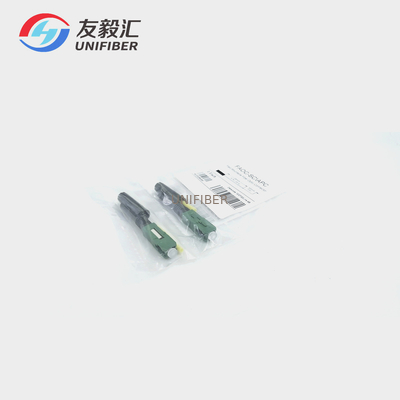

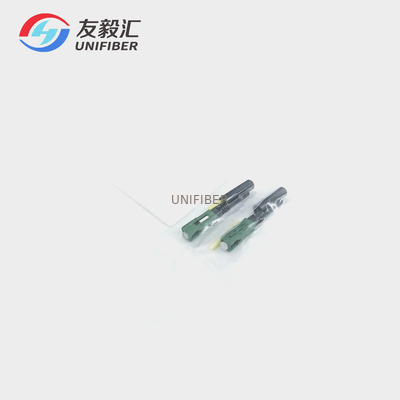

Picture of 3M SC/APC FTTH Field Assembly Fast Connector
