Product Details:
Payment & Shipping Terms:
|
| Product: | OTDR FBG Fiber Optic Reflector | Wavelength: | 1550nm |
|---|---|---|---|
| Connector: | SC/APC Male Female | Color: | Green |
| Application: | FTTx Network Monitoring | OEM Brand: | Support |
| High Light: | 1550nm fiber optic reflector,OTDR FBG fiber optic reflector,Networks fiber optic reflector |
||
Description of 1550nm OTDR FBG fiber optic reflector SC/APC
The FBG reflector is a standard SC/LC type connector structure, which package a special FBG in the ceramic ferrule.
The fiber bragg grating reflector is a low-cost specific band reflector mounted on the optical network unit (ONU) side. It can reflect light pulses (1650 +/- 5 nm) from the OTDR on the fiber line terminal (OLT) side nearly 100%, while the working bands of the passive optical network (PON) are transmitted normally. The OTDR can determine whether the fiber line is normal by detecting the signal reflected by the fiber grating reflector. When the reflected signal is lower than the normal value, the line loss is too large; when the reflection value is 0, the optical fiber line is broken.Therefore, we can maintain the fiber line in time by the real-time monitoring of the fiber line.
Application Of Optical Reflector
PON network
OTDR testing
Central Office Terminal
FTTX
Features Of Fiber Optic Reflector
Low insertion loss and reflectivity at traffic wavelength
High reflectivity at test wavelength
Easy to install
Exceptional reliability and environmental stability
Compatible with GPON, EPON, GEPON
Specification
| Parameter | Unit | Value |
| Pass band wavelength range | nm | 1260~1360 & 1460~1520 & 1575~1670 |
| Reflect band wavelength range | nm | 1545~1555 |
| IL(1260nm-1360nm) | dB | ≤1.5 |
| IL(1460nm-1520nm) | dB | ≤2 |
| IL(1545nm-1555nm) | dB | ≥20 |
| RL(1260nm-1360nm) | dB | ≥35 |
| RL(1460nm-1520nm) | dB | ≥30 |
| RL(1575nm-1670nm) | dB | ≥30 |
| RL(1545nm-1555nm) | dB | ≤1 |
| PDL | dB | ≤0.4 |
| Ripple(REFLECT BAND) | dB | ≤0.6 |
| TDL | dB | ≤0.5 |
| Operation Temperature | ℃ | -20~+65 |
| Relative Humidity | %RH | 5~95 |
| Connector | SC/APC or LC/APC Attenuator Type |

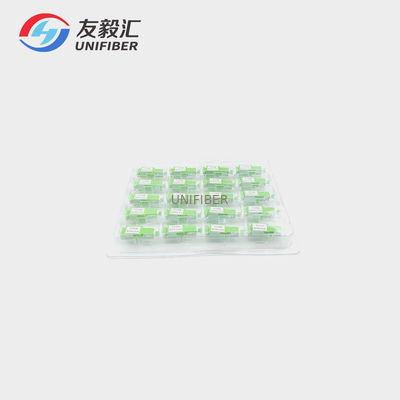

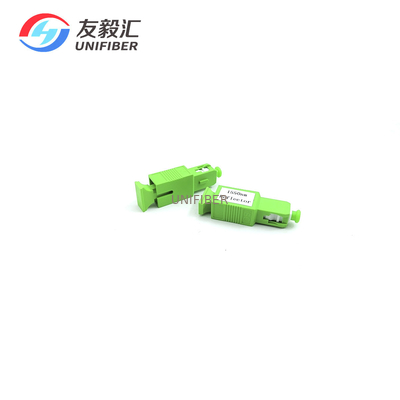

Picture of fiber bragg grating reflector
