Product Details:
Payment & Shipping Terms:
|
Product: | CWDM Rack Mount Chassis | No Of Channels: | 18 |
---|---|---|---|
Wavelength: | 1260~1620nm | Channel Spacin: | 20nm |
Insertion Loss: | 3.5dB | Connector: | LC/UPC |
Package: | 1U Rack Mounted | ||
High Light: | 18 Channels CWDM Mux Demux,LC UPC CWDM Mux Demux,Rack Mount CWDM Mux Demux |
Description of Rack Mount 18 Channels CWDM Mux Demux
Coarse wavelength division multiplexer (CWDM Mux/Demux) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path.CWDM products include: bare single CWDM device packed in glass tube or stainless steel tube, CWDM Mux Demux modules packed in ABS box up to 16-channel or even 18-channel Multiplexing on a single fiber or CWDM modules packed in standard 19” 1U rackmount. Due to the low insertion loss is needed in WDM networks, we can also add “Skip Component” in a CWDM Mux/ Demux module to reduce the IL as an option. Standard CWDM Mux/ Demux package type include: Glass tube, stainless steel tube, ABS box package, LGX package and 19” 1U rackmount
Features
Low Insertion Loss
Wide pass band
High Channel Isolation
High Stability and reliability
Epoxy-free on Optical Path
Application
Line Monitoring
WDM Network
Telecommunication
Cellular Application
Fiber Optical amplifier
Access Network
Specification

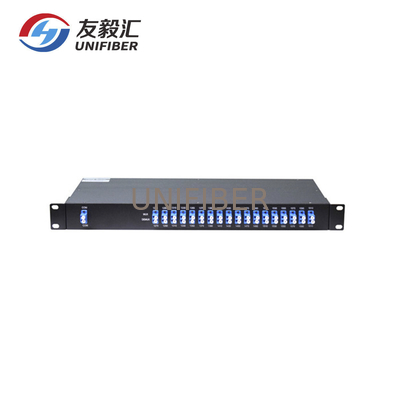

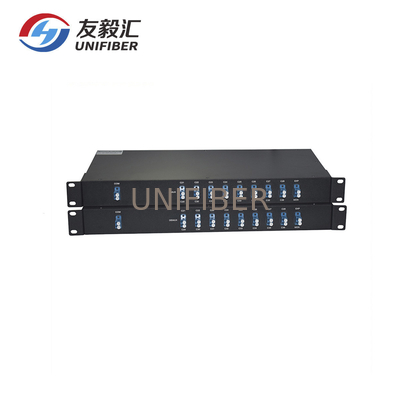

Picture of 4/6/8/10/12/16/18 CH CWDM Mux/Demux Rack Mounted Chassis
