Product Details:
Payment & Shipping Terms:
|
| Product: | IP68 Optitap Pre-Connectorized MST Fiber Terminal Box | No Of Ports: | 4/8 Ports |
|---|---|---|---|
| Connector: | Corning Optitap Or Huawei Mini SC | Waterproof Grade: | IP68 |
| Splitter: | 1x4 Or 1x8 Mini PLC Splitter | Installation: | Wall Mount, Pole Mount And Aerial Mount |
| Application: | FTTX ISP Networks |

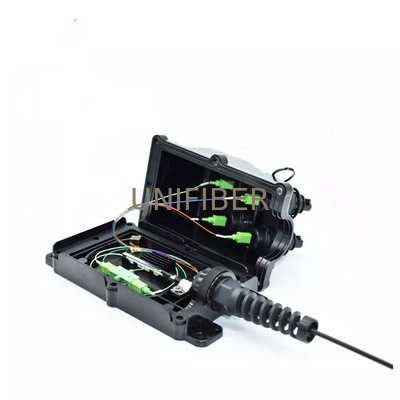

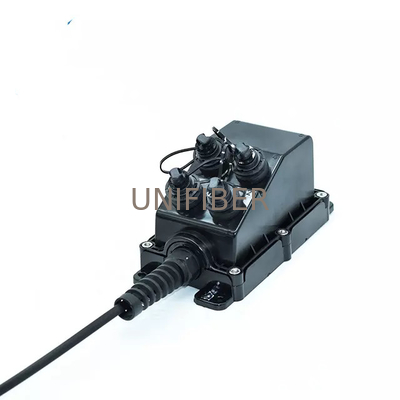

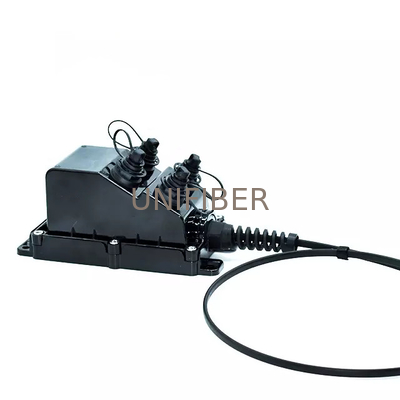

This IP68 Optitap Pre-Connectorized MST Fiber Terminal Box is quick and easy deployment on the site, it can have corning optitap or huawei mini SC Hardened waterproof connectors. customer also can ask to have any specified length come with the terminal box based on the actual application.
Application
OSP Networks
FTTx Networks
Features:
Quick and easy subscriber connections
No splicing required in the terminal
No terminal re-entry required
1:4, or 1:8 splitter options
Dielectric, toneable, or armored input stub cables
Pole, pedestal, handhole, or strand mounting options
User-friendly packaging allows foreasy un-spooling
Factory-sealed enclosure for environmental protection
Specification
| Items | IP68 Optitap Pre-Connectorized MST Fiber Terminal Box |
| Dimensions LxWxH | 365x137x90mm(Without cover) 375x142x120mm(With cover) |
| Waterproof protection | IP68 |
| Connector type | Optitap or mini SC |
| No of ports | 2,4,6,8,12 Ports |
| Round cable OD | 5.0mm to 14mm |
| Flat cable dimension | 4.6x8.9mm |
| Cable jacket material | LSZH, PEorTPU |
| Output cable length | Any specified length |
