Product Details:
Payment & Shipping Terms:
|
| Operation Wavelength: | ITU 100GHz Grid | Fiber Type: | 250um Bare Fiber 0.9/2.0/3.0mm Loose Tube |
|---|---|---|---|
| Fiber Length: | 1M Or Customized | In/Out Connector: | FC SC LC ST |
| Number Of Channels: | 4/8/16CH | 1st Channel: | C21 C22 C23...C59 C60 C61 |
| Configuration: | Mux/Demux | Packages: | ABS Box, LGX Cassette, Rack Mounted |
| High Light: | fiber optic multiplexer,cwdm passive multiplexer |
||

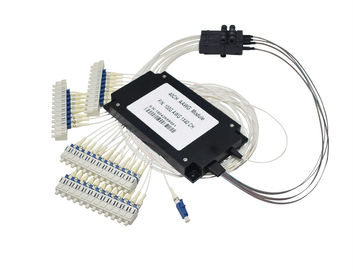

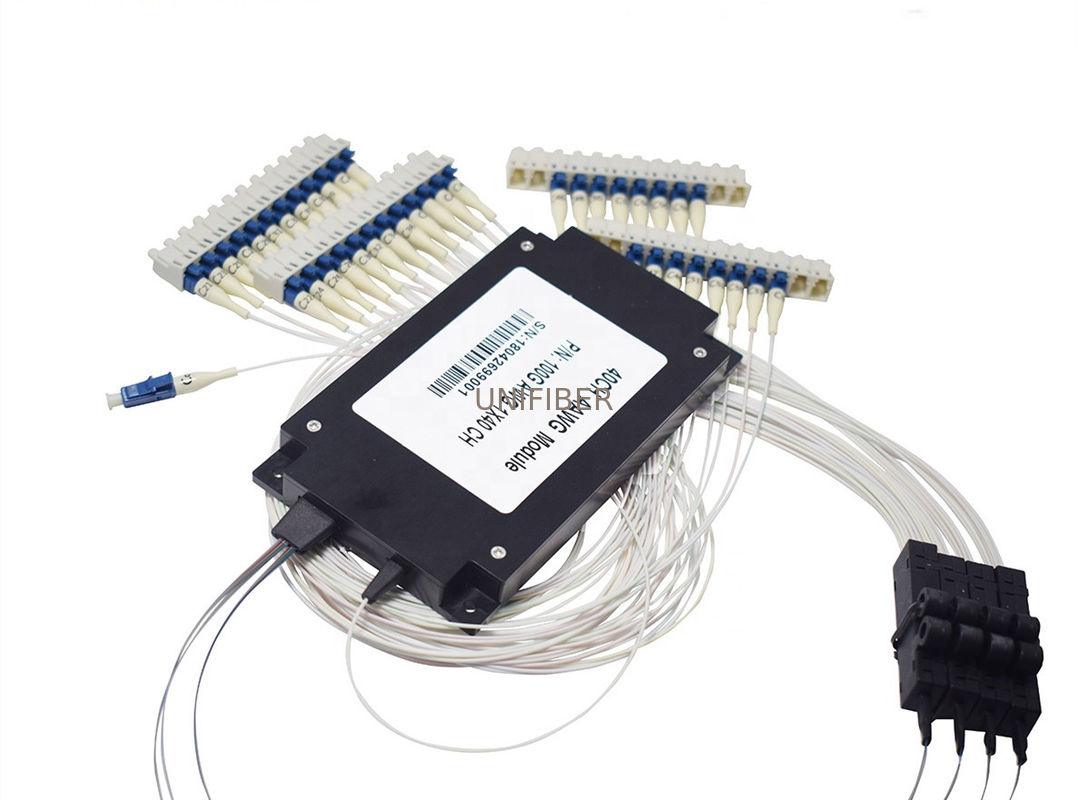

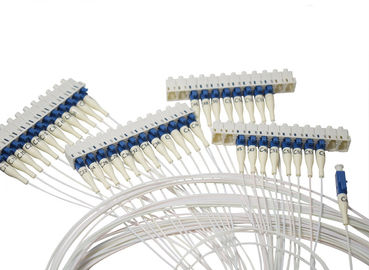

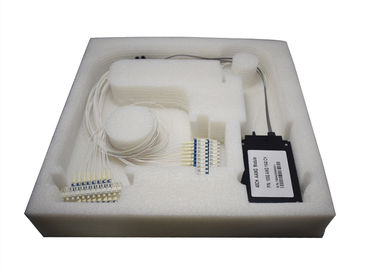

Compact size 100GHZ Athermal AWG DWDM Module(AAWG) 40CH ABS Box Flat top Single Fiber Mux Demux for PON Networks
Athermal AWG (Athermal Arrayed Waveguide Grating) Mux/DeMux Modules are part of a series of high performance products based on silica-on-silicon planar technology. It operates at 50GHz or 100GHz channel spacing ITU Grid DWDM wavelengths from 1526nm to 1565nm. The AAWG DWDM can be used to replace the filter-type DWDM for cases where no power is available.
Features:
MUX/DEMUX Functionality
Compact Package
Multi-channel Number
Telcordia GR-1209/1221 compliant
Athermal Design, Electrical Power is Not Required
Low Insertion Loss,Low PDL,High Channel Isolation
Applications:
DWDM Transmission
Metro Area Networks
Long-haul Networks
PON Networks
Building Blocks for ROADM
Building Blocks for VMUX
Parameters
| Parameters | AAWG DWDM MUX/DEMUX | |||||
| Channel Space (GHz) | 50GHz | 100GHz | ||||
| Pass Band Type | Flat-top | Gaussian | Flat-top | |||
| Central Wavelength | ITU-T Grid | |||||
| Grade | Typ | Min | Typ | Min | Typ | Min |
| Channel Number | 80/96 | 32/40/48 | ||||
| Wavelength Accuracy (nm) | ±0.04 | ±0.05 | ||||
| Pass Band @1dB (nm) | >0.2 | >0.2 | >0.4 | |||
| Pass Band @3dB (nm) | >0.4 | >0.4 | >0.6 | |||
| Insertion Loss (dB) | <7.0 | <6.0 | <4.0 | <3.5 | <6.5 | <5.0 |
| Adjacent Crosstalk (dB) | >26 | >26 | >23 | |||
| Non-Adjacent Crosstalk (dB) | >26 | |||||
| Total Crosstalk (dB) | >20 | >21 | ||||
| Return Loss (dB) | >40 | |||||
| Ripple (dB) | <1.5 | <0.5 | ||||
| Uniformity (dB) | <1.5 | |||||
| Polarization Dependent Loss (dB) | <0.7 | <0.6 | <0.5 | <0.4 | ||
| Polarization Mode Dispersion (ps) | <0.5 | |||||
| Chromatic Dispersion (ps/nm) | ±30 | ±20 | ||||
| Operating Temperature (℃) | -5~75 | |||||
| Storage Temperature (℃) | -40~85 | |||||
Note:
1.All the data above does not include connectors.
2.For more details, please contact our sales.
