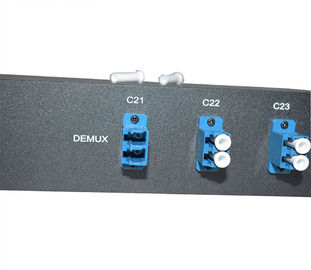

| Number Of Channels: | 4/8/16CH | 1st Channel: | C21 C22 C23...C59 C60 C61 |
| Configuration: | Mux/Demux | Packages: | ABS Box, LGX Cassette, Rack Mounted |
| High Light: | fiber optic multiplexer,cwdm passive multiplexer |
||

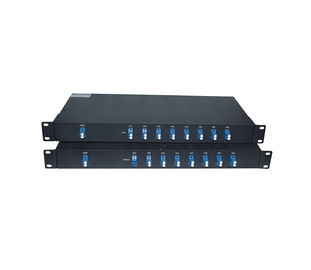

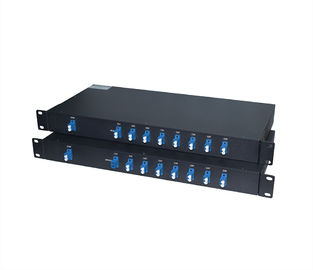

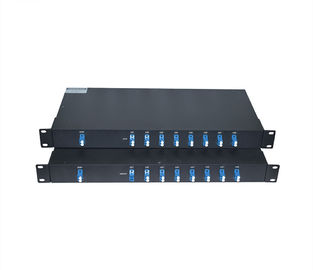

Single fiber BIDI DWDM Mux Demux Multiplexer 8/16 channels rack mounted wavelength division multiplexing
100GHz DWDM MUX / DEMUX WDM Module combines or separates multiple DWDM signals over one fiber. We can supply full complete configuration such as 2CH, 4CH, 8CH, 16CH, up to 88 channels. UNIFIBER provides customized designing to meet different requirements with upgrade port, monitor port.
Features:
Low insertion loss
Excellent channel isolation
2-44 channels DWDM Mux/Demux (CH17-CH61)
Channel spacing: 0.8nm(100GHz Grid C-Band)
Protocol transparent (10Mbps to 100Gbps)
Epoxy-free optical path
Compliant to G.657A1 standard
Wide Operating Temperature: -20~+70℃
Applications:
DWDM Network
Wavelength Routing
Fiber Optical Amplifier
Channel Add/Drop
CATV System
Parameters
| Parameters | |||||||
| Channel Space (GHz) | 100 | 200 | |||||
| Channel Number | 1*4 | 1*8 | 1*16 | 1*4 | 1*8 | 1*16 | |
| Center Wavelength (nm) | ITU Grid | ||||||
| Center Wavelength Accuracy (nm) | ± 0.05 | ± 0.1 | |||||
| Channel Passband (@-0.5dB) (nm) | 0.22 | 0.5 | |||||
| Fiber Type | SMF-28e with 900um loose tube or customer specified | ||||||
| IL (dB) | 1.4 | 2.5 | 3.8 | 1.7 | 2.9 | 3.8 | |
| Passband Ripple (dB) | 0.35 | 0.4 | 0.5 | 0.35 | 0.4 | 0.5 | |
| Isolation (dB) | Adjacent Channel | 25 | 28 | ||||
| Non-Adjacent Channel | 40 | ||||||
| PDL (dB) | 0.2 | ||||||
| PMD (ps) | 0.1 | ||||||
| RL (dB) | 45 | ||||||
| Directivity (dB) | 50 | ||||||
| Maximum Optical Power (mw) | 500 | ||||||
| Operating Temperature (°C) | -20~70 | ||||||
| Storage Temperature (°C) | -40~85 | ||||||
| BOX Package (mm) | 100*80*10 or 140*115*18 | ||||||
| LGX Package | 1U,2U | ||||||
| 19’’ Rack mount Package | 1U | ||||||
