Operation Wavelength: | ITU 100GHz Grid | Fiber Type: | 250um Bare Fiber 0.9/2.0/3.0mm Loose Tube |
---|---|---|---|
Fiber Length: | 1M Or Customized | In/Out Connector: | FC SC LC ST |
Number Of Channels: | 4/8/16/18CH | 1st Channel: | C21 C22 C23...C59 C60 C61 |
Configuration: | Mux/Demux | Packages: | ABS Box, LGX Cassette, Rack Mounted |
High Light: | fiber optic multiplexer,cwdm passive multiplexer |

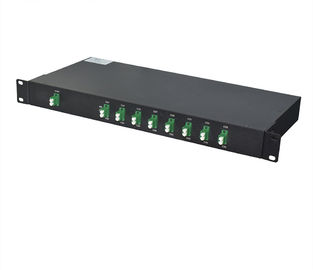

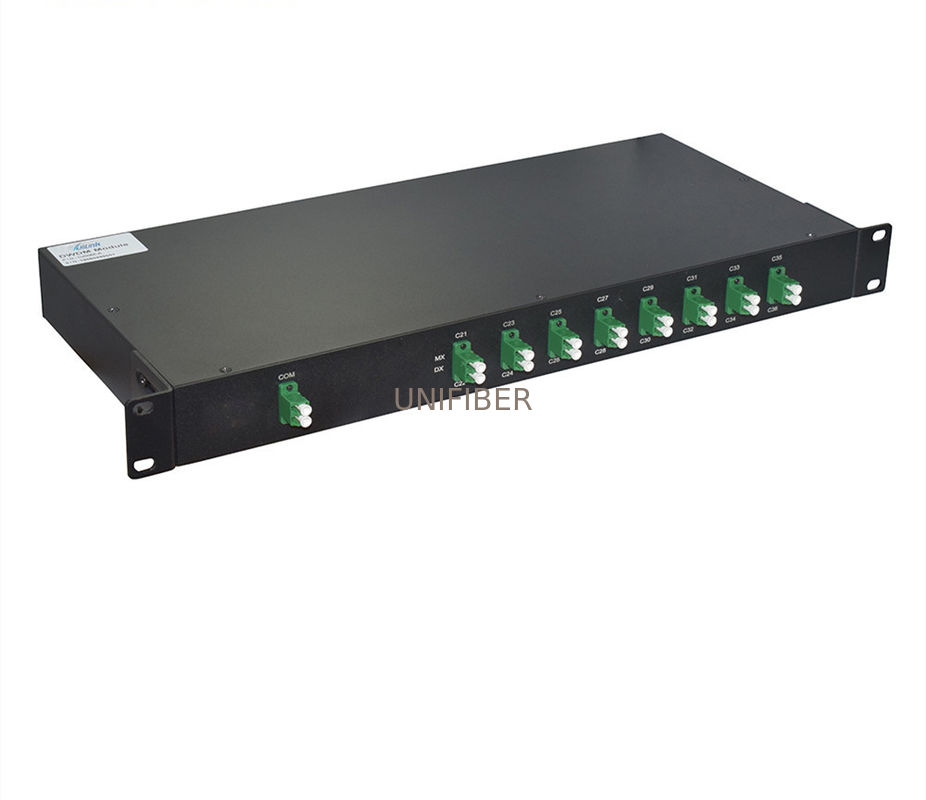

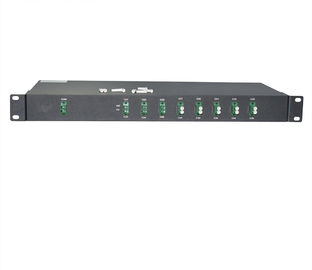

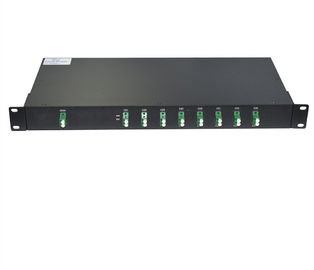

16/18 channel single fiber rack mounted DWDM Mux/Demux LC/APC with express & monitor port
DWDM Mux Demux is usually used for long-haul transmission where wavelengths are packed tightly together over the C-band, up to 48 wavelengths in 100GHz grid(0.8nm) and 96 wavelengths in 50GHz grid(0.4nm). It's protocol transparent and suit applications including 10/1G Ethernet, SDH/SONET, 16/8/4/2/1G Fibre Channel, FTTx and CATV.
Features
100GHz ITU Channel Spacing
Low insertion loss
broadband transmission
high channel isolation
High stability and reliability
Epoxy-free optical path
Applications
Dense WDM System
PON Networks
CATV Links
Parameters
Parameter | Unit | Value | |||||
Central Wavelength | nm | ITU-T Grid | |||||
Channel Spacing | nm | 0.8 (100GHz) | 1.6 (200GHz) | ||||
Number of Channels | ---- | 8 | 16 | 8 | |||
Channel Passband | Min | nm | 0.11 | 0.11 | 0.25 | ||
Insertion Loss | Ty | dB | 3 | 4 | 3 | ||
Max | dB | 2.5 | 3.5 | 3.5 | |||
Ripple | Max | dB | 0.5 | 0.5 | 0.5 | ||
Channel Uniformity | Max | dB | 1 | 1.5 | 1 | ||
Isolation | Adjacent Channels | Min | dB | 25 | |||
Non-adjacent Channels | Min | dB | 40 | ||||
Directivity | Min | dB | 50 | ||||
Optical Return Loss | Min | dB | 45 | ||||
PDL | Max | dB | 0.15 | ||||
Thermal Stability | Max | dB/°C | 0.007 | ||||
Thermal Wavelength DriftMax | Max | nm/°C | 0.001 | 0.002 | |||
Operating Temperature | °C | 0 to 70 | |||||
Storage Temperature | °C | - 40 to 85 | |||||
Package Dimension | mm | 140 100 13 | |||||
Maximum Power Handling | mW | 300 |
