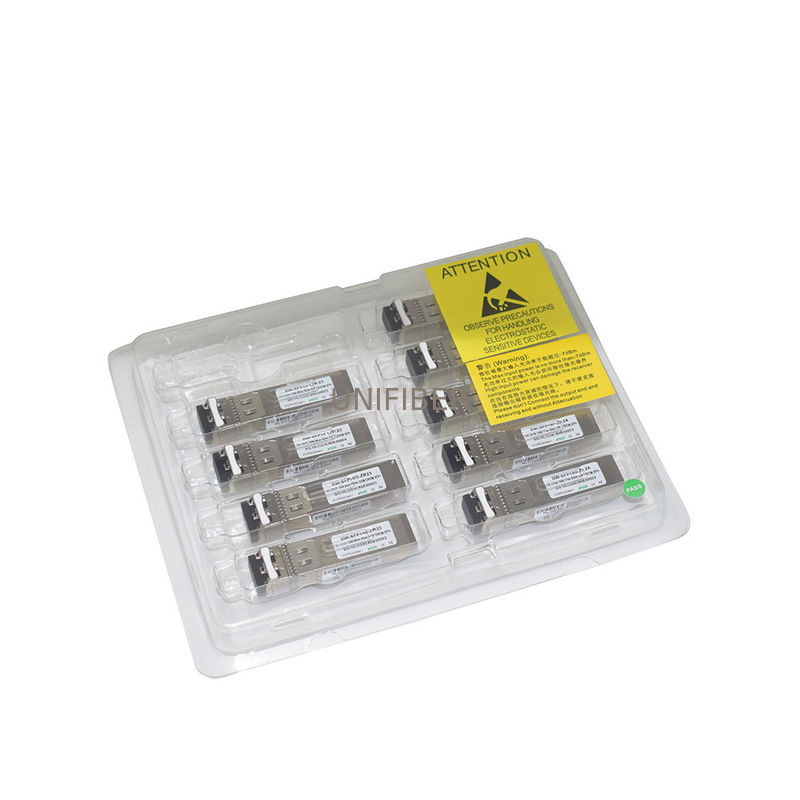

C20~C61 80km DDM 10G DWDM SFP+ Fiber Optic Transceiver

10G DWDM SFP+ Optical Transceiver C20~C61 80km DDM

DWDM SFP+ transceivers are designed to transmit and receive optical data over single mode optical fiber. Digital diagnostic functions are available via an I2C.This module is designed for single mode fiber and operates at a nominal wavelength of ITU Grid, C Band DWDM wavelength. It is with the SFP+ 20-pin connector to allow hot plug capability. The transmitter section uses a DWDM EML laser and is a class 1 laser compliant according to International Safety Standard IEC-60825.The receiver section uses a PIN detector and a limiting post-amplifier IC.

FEATURES :

Optical interface compliant to IEEE 802.3ae
Electrical interface compliant to SFF-8431
Specifications compliant with SFF 8472
Compliant with SFP+ MSA
Hot Pluggable
Low power consumption
Built-in digital diagnostic functions
Class 1 laser product complies with EN 60825-1
Power dissipation＜1.5W
Case operating temperature range: -5°C to 70°C

APPLICATIONS :

10G Ethernet with FEC

10Gbps SONET/SDH ITU-T G.959.1 P1L1-2D2

10Gbps SONET/SDH ITU-T G.709

10G BASE-ZR/ZW

SFP footprint 80km 10G Fiber Channel

Ordering Information:
