Product Details:
Payment & Shipping Terms:
|
| Wavelength: | 1310/1490/1550nm | Package: | Steel Tube,ASB Box |
|---|---|---|---|
| Pigtail Type: | 250um Bare Fiber,900um Loose Tube,2.0mm,3.0mm | Connector Type: | FC,SC,LC,ST Or Customized |
| High Light: | FWDM Module,FWDM Fiber Optic Multiplexer |
||

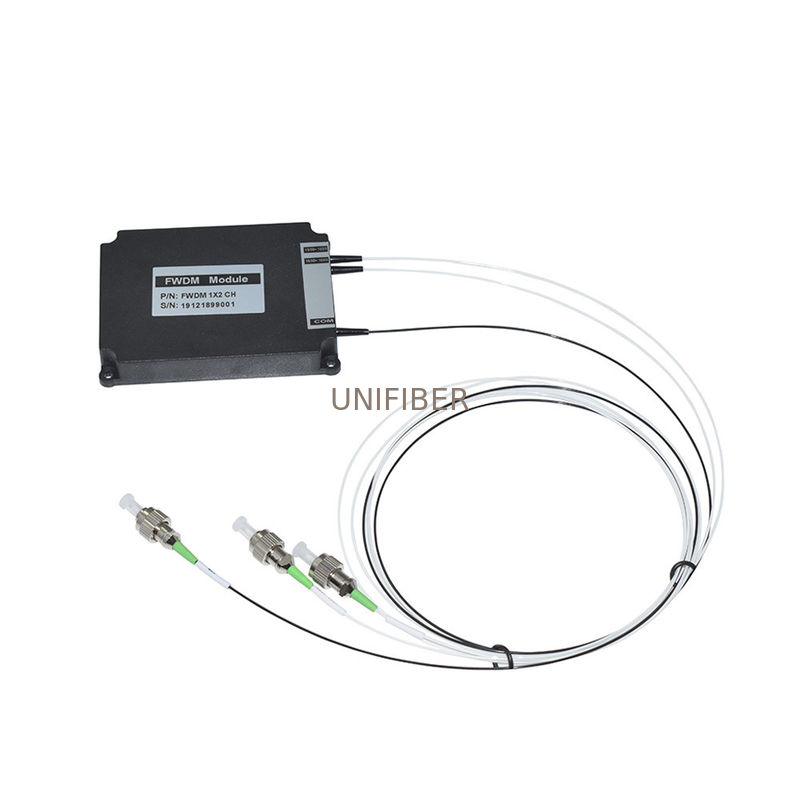

1x2ch FWDM Filter-based Wavelength Division Multiplexer compact plastic ABS box with FC/APC connector
Filter-based Wavelength Division Multiplexer (FWDM) is a kind of WDM multiplexer based on the Thin Film Filter (TFF) technology. The FWDM combines or separates light at different wavelengths in a wide wavelength range and is extensively used in EDFA, Raman amplifiers, and WDM optical networks. Powerlink provides a series of FWDM multiplexers for FTTx constructions. Our FWDM product line covers different wavelength windows commonly used in optical fiber systems. All the FWDM multiplexers offer low insertion loss, low polarization dependence, high isolation and excellent environmental stability.
Features:
Wide Wavelength Range
Low Insertion Loss
High Channel Isolation
High stability and reliability
Applications:
System Monitoring
Transmitters and Fiber
Fiber optical amplifier
CATV System
FTTH System
Parameter
| Parameter | FWDM 4/35 | FWDM 5/34 | FWDM 3/45 | FWDM 34/5 | |
| Pass Band Wavelength Range (nm) | 1480~1500 | 1540~1560 | 1260~1360 | 1260~1360 & 1480~1500 | |
| Reflection Band 1 Wavelength Range(nm) | 1260~1360 | 1260~1360 | 1480~1500 | 1540~1560 | |
| Reflection Band 2 Wavelength Range (nm) | 1540~1560 | 1480~1500 | 1540~1560 | ||
| Insertion Loss(dB) | Reflect Channel | ≤0.6 | |||
| Pass Channel | ≤0.8 | ||||
| Insertion Loss Variation(dB) | <0.3 | ||||
| Isolation(dB) | Pass Channel | >15 | |||
| Reflect Channel | >30 | ||||
| Inertion Loss Temperature Sensitivity(dB/℃) | <0.005 | ||||
| Polarization Dependent Loss(dB) | <0.1 | ||||
| Polarization Mode Dispersion(ps) | <0.1 | ||||
| Directivity(dB) | >50 | ||||
| Return Loss(dB) | >50 | ||||
| Maximum Power Handling(mW) | 500 | ||||
| Opterating Temperature(℃) | -20~+70 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
| Package dimension(mm) | Φ5.5x34 (L38 for 900um Loose tube) | ||||
1,Above specifications are for devices without connector.
2,Specifications may change without notice.
