| Operation Wavelength: | ITU 100GHz Grid | Fiber Type: | 250um Bare Fiber 0.9/2.0/3.0mm Loose Tube |
|---|---|---|---|
| Fiber Length: | 1M Or Customized | In/Out Connector: | FC SC LC ST |
| Number Of Channels: | 4/8/16CH | 1st Channel: | C21 C22 C23...C59 C60 C61 |
| Configuration: | Mux/Demux | Packages: | ABS Box, LGX Cassette, Rack Mounted |
| High Light: | Athermal AWG Moudele,DWDM Mux Demux Multiplexer |
||

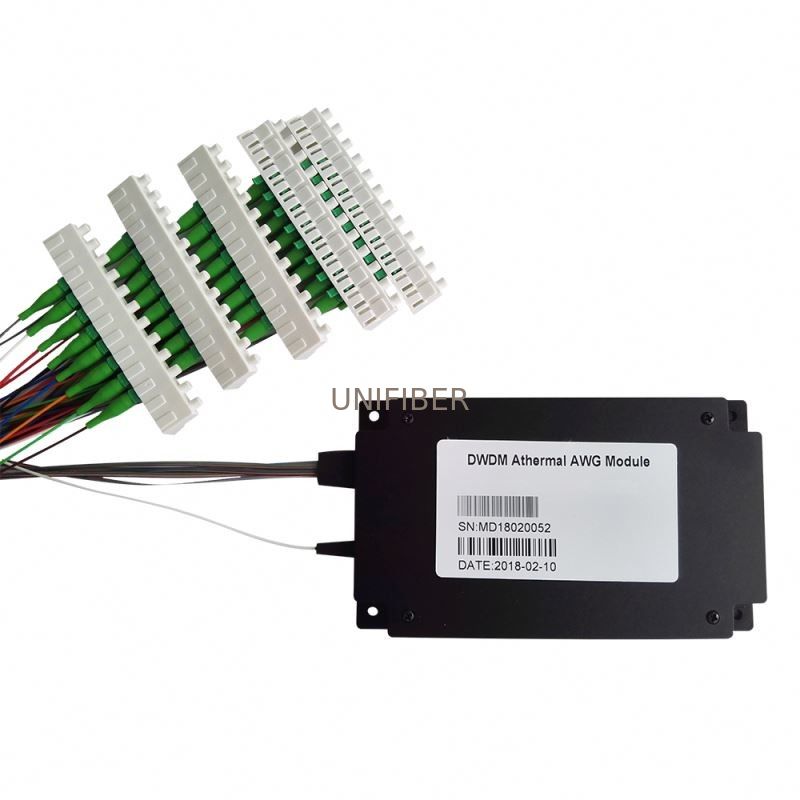

Compact size 100GHZ Athermal AWG DWDM Module(AAWG) 40CH ABS Box Flat top Single Fiber Mux Demux for PON Networks
Athermal AWG (Arrayed Waveguide Grating) is a highperformance DWDM mux/demux device operating on 100GHz channel spacing without the need for temperature stabilization. The planar processed silica-on-silicon chips comprise arrayed channel waveguides to separate or combine multiple wavelengths. Athermal AWG s allow multiplexing and demultiplexing of DWDM signals over a wide operating temperature range, without the need for heater drive and monitoring electronics.These AWG offer low insertion loss, excellent channel isolation, ease of fiber handling, and long-term reliability in a compact package.
Features:
MUX/DEMUX Functionality
Compact Package
Multi-channel Number
Telcordia GR-1209/1221 compliant
Athermal Design, Electrical Power is Not Required
Low Insertion Loss,Low PDL,High Channel Isolation
Applications:
DWDM Transmission
Metro Area Networks
Long-haul Networks
PON Networks
Building Blocks for ROADM
Building Blocks for VMUX
| Parameter | Unit | Gaussian | Flat-Top | |
| Channel Wavelength (nm) | nm | ITU 100 GHz Grid | ||
| Number of channels | - | 16,32,40,48 or other | ||
| Wavelength Accuracy (nm) | nm | ± 0.05 | ||
| Insertion Loss (dB) | dB | < 4.5 | < 6.0 | |
| Channel Passband (@-1dB bandwidth) | nm | > 0.2 | > 0.3 | |
| Channel Passband (@-3dB bandwidth) | nm | > 0.4 | > 0.5 | |
| Total Crosstalk(dB) | dB | > 20 | > 23 | |
| Channel Ripple (dB) | dB | < 0.75 | ||
| Isolation(dB) | Adjacent | dB | > 25 | |
| Non-adjacent | dB | > 30 | ||
| Max. Uniformity | dB | 1.2 | ||
| Chromatic Dispersion | ps/nm | -20~+20 | ||
| Max. Polarization Dependent Loss | dB | 0.5 | ||
| Max. Polarization Mode Dispersion | ps | 0.5 | ||
| Min. Directivity | dB | > 50 | ||
| Min. Return Loss | dB | > 45 | ||
| Maximum Power Handling | mW | 300 | ||
| Fiber type | - | SMF-28e or other | ||
| Operating Temperature | °C | -5 ~+70 | ||
| Storage Temperature | °C | -40 ~+85 | ||
| Dimension | mm | L120 x W70 x H12 | ||
| 19" 1U Rack mount:431.5*250*44 | ||||
Note:
1.All the data above does not include connectors.
2.For more details, please contact our sales.
