1x2 Passive 900um Loose Tube SC APC Filter Optic CWDM

Name: 1x2 Passive 900um Loose Tube SC APC Filter Optic CWDM
Brand: UNIFIBER
SKU: CWDM device
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (168 reviews)

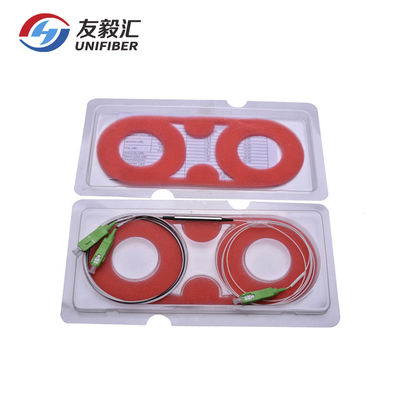

Large Image : 1x2 Passive 900um Loose Tube SC APC Filter Optic CWDM

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER
Certification:	ROHS
Model Number:	CWDM device

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Blister Case
Delivery Time:	5~7 Business days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Wavelength:	1270~1610nm	Package:	Steel Tube,ASB Box
Pigtail Type:	250um Bare Fiber,900um Loose Tube,2.0mm,3.0mm	Connector Type:	FC,SC,LC,ST Or Customized
Fiber:	Corning G.657 A1 Fiber	Application:	WDM Network
High Light:	SC APC Filter Optic CWDM , Passive Filter Optic CWDM , 1x2 CWDM Mux Module

1x2 Passive CWDM 900um Loose Tube SC APC CWDM Filter

Coarse wavelength division multiplexer (CWDM) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provideslow insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path .

Features:

Low Insertion loss
Wide pass band
High Channel Isolation
High Stability and reliability
Epoxy-free on Optical Path

Application:

Line monitoring
WDM network
Telecommunication
Fiber optical amplifier
Access network

Parameter

Parameter		Specification
Channel Wavelength (nm)		1270~1610 or 1271~1611
Channel Spacing(nm)		20
Channel Passband (@-0.5dB bandwidth (nm)		>13
Pass Channel Insertion Loss (dB)		≤0.6
Reflection Channel Insertion Loss (dB)		≤0.4
Channel Ripple (dB)		<0.3
Isolation (dB)	Adjacent	≥30
	Non-adjacent	≥40
Inertion Loss Temperature Sensitivity (dB/℃)		<0.005
Wavelength Temperature Shifting (nm/℃)		<0.002
Polarization Dependent Loss (dB)		<0.1
Polarization Mode Dispersion(ps)		<0.1
Directivity (dB)		＞50
Return Loss(dB)		＞45
Maximum Power Handling (mW)		300
Opterating Temperature (℃)		-20~+75
Storage Temperature (℃)		-40~+85

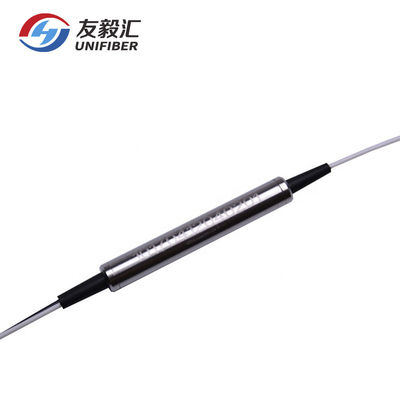

Package dimension (mm)		Φ5.5xL38

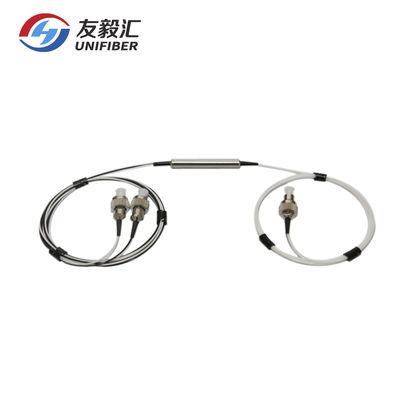

1x2 Passive 900um Loose Tube SC APC Filter Optic CWDM 0
