Wavelength: | 1550nm | Data Rate: | 10G |
---|---|---|---|
Interface: | LC | Transmission Distance: | 80km |
Compatiable: | HP, Huawei, H3C, Alcatel, Juniper Or Others | Form Factor: | 10G XFP |
Certification: | CE RoHS FCC | Brands: | Can Be Customized |
High Light: | 1550nm Fiber Transceiver Module,DDM Fiber Transceiver Module,10.3Gb/S Fiber Ethernet Transceiver |

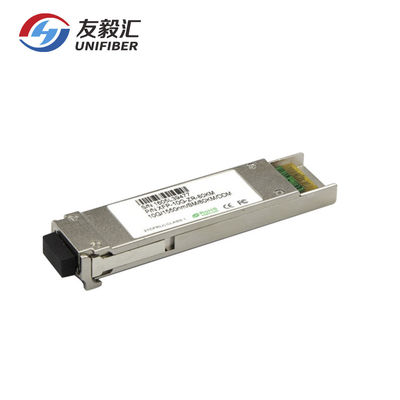

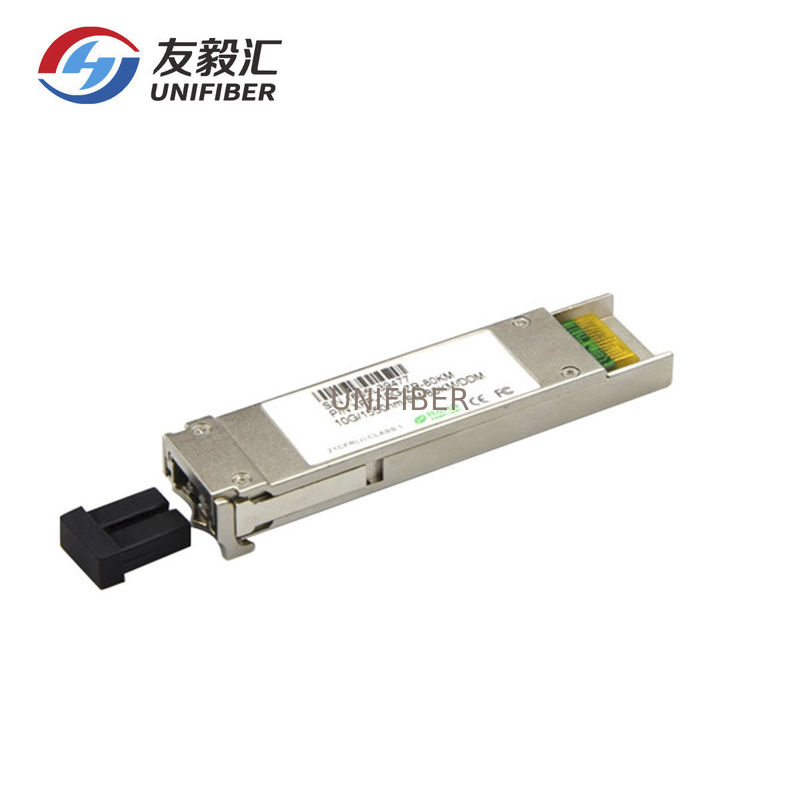

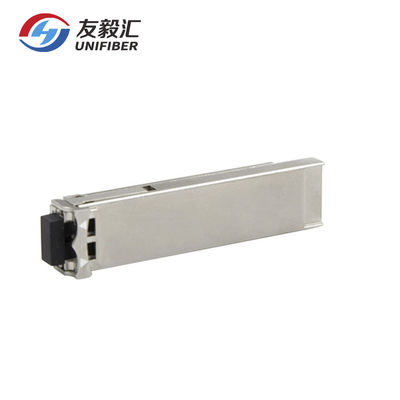

10G XFP ZR 1550nm 80km Dual LC Optical Transceiver Module DDM
SFP+ZR Transceiver is designed for 8.5G/10G Fiber- Channel and 10GBE applications. The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements.SFP+ZR Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature,laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
FEATURES :
Compliant with SFF-8431 and IEE802.3ae
Data rate selectable ≤4.25Gbps or 9.95Gbps to 11.3Gbps bit rates
Cooled EML transmitter and APD receiver
link length up to 80km Low Power Dissipation 1.4W Typical (Maximum:2W)
-5ºC to 70ºC Operating Case Temperature
Single 3.3V power supply
Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power
RoHS compliant and lead free
APPLICATIONS :
SONET OC-192&SDH STM 64 (with/with out FEC)
10GBASE ER/EW (with/with out FEC)
10G Fiber Channel
Ordering Information:
Brand Compatible
