Product Details:
Payment & Shipping Terms:
|
| Wavelength: | 1310nm | Data Rate: | 10G |
|---|---|---|---|
| Interface: | LC | Transmission Distance: | 10km |
| Compatiable: | HP, Huawei, H3C, Alcatel, Juniper Or Others | Form Factor: | 10G XFP |
| Certification: | CE RoHS FCC | Brands: | Can Be Customized |
| High Light: | 1310nm Optical Fiber Transceiver,10km Optical Fiber Transceiver,DDM Fiber Transceiver Module |
||

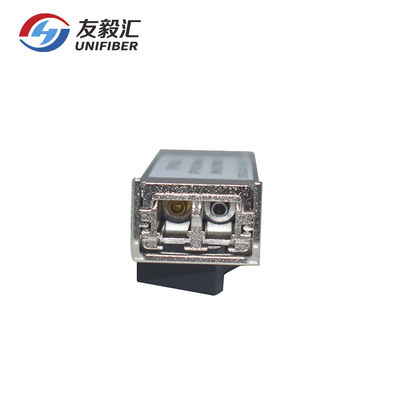

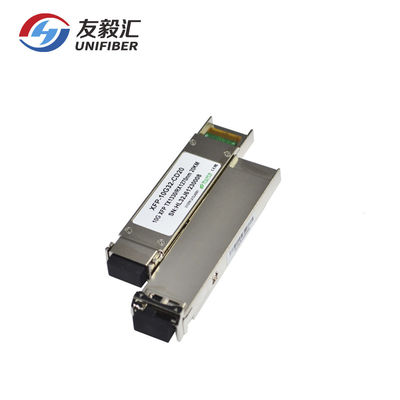

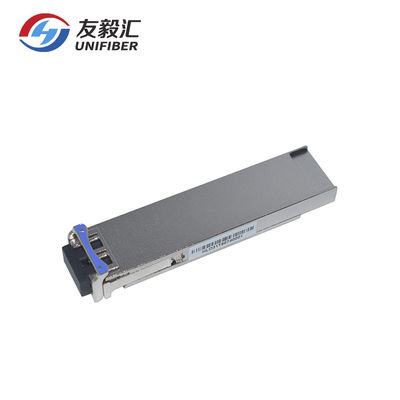

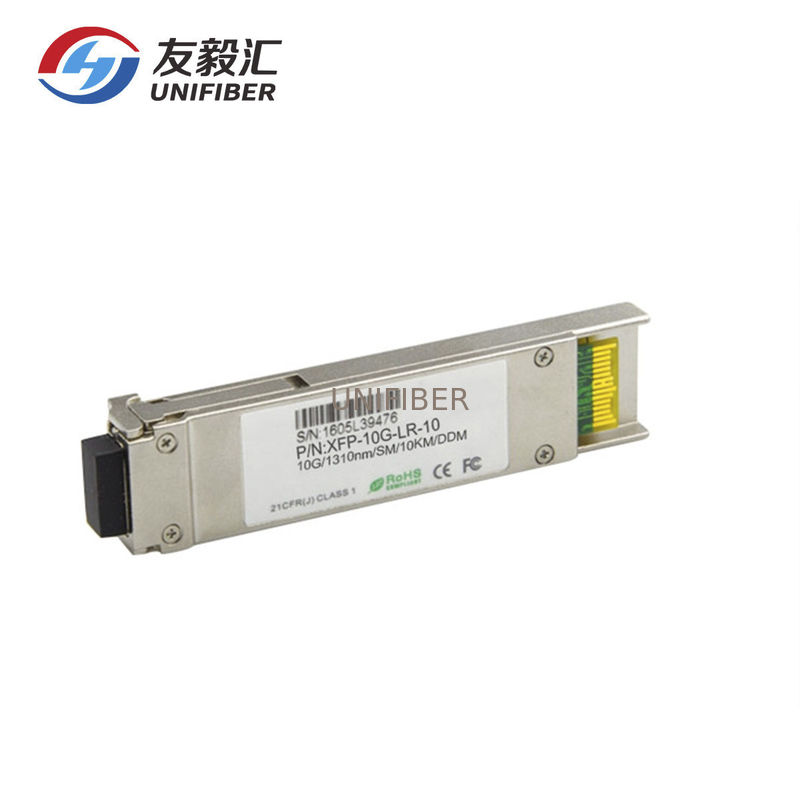

XFP 10G LR 1310nm 10km Dual LC Optical Transceiver Module DDM
10G 1310nm XFP transceivers are designed for 10G Ethernet 10G BASE-LR/LW per 802.3ae, and it can support data-rate from 9.953Gb/s to 11.1Gb/s. Digital diagnostics are available via I2C interface as specified in the XFP MSA. The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for datacom and telecom applications.
FEATURES :
Hot pluggable
Support 9.95Gb/s to 11.1Gb/s bit rates
Un-cooled 1310nm DFB laser
Distance up to 10km over SMF
Duplex LC connector
Below 2.5W power consumption
Digital Diagnostic Monitor Interface
Very low EMI and excellent ESD protection
+3.3V single power supply
Operating temperature range: 0 to 70℃
APPLICATIONS :
10G BASE-LR/LW Ethernet
10G Fiber Channel
Other optical links
Brand Compatible
